Inspired LED’s 12VDC Class 2 Plug-In Power Supplies are a simple, hassle-free way to power low voltage LED’s. Featuring our standard 3.5mm x 1.3mm output plugs, these power supplies combine easily with Inspired LED products to create the perfect plug-and-play LED system for your home or business.
Plug-In Power Supplies are not compatible with wall switch/dimmers. If you are interested in dimming your LED lights from a wall switch/dimmer check our dimmable transformers.

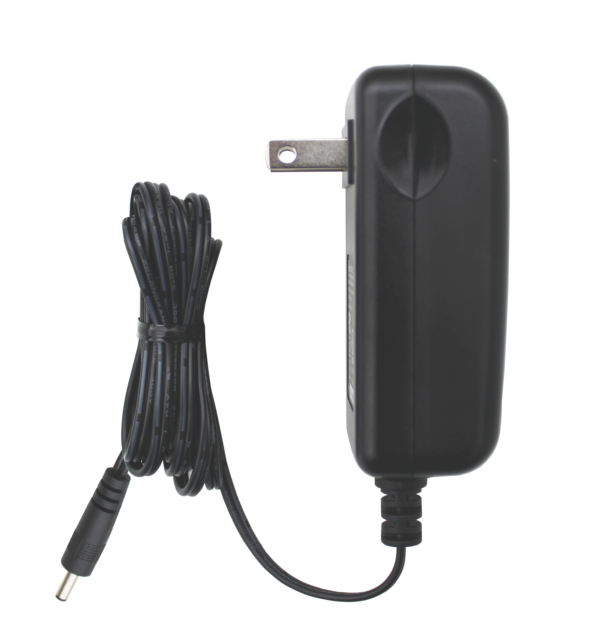

2 AMP (SKU #3542)
- Class 2, Level VI, UL Listed E584317
- Dimensions: 2.75″(L) x 1.57″(W) x 1.28″(D)
- Standard Cable Length: 72″
- In-Line Ferrite Bead Diameter: 0.6″
- Input: 100-240 VAC, 50/60HZ, 0.8 AMP
- Output: 12VDC, 2 AMP
- DC Plug Size: 3.5mm x 1.3mm
- Polarity: (+) indicated by white blocks
- Warranty: 2-Year Limited Warranty

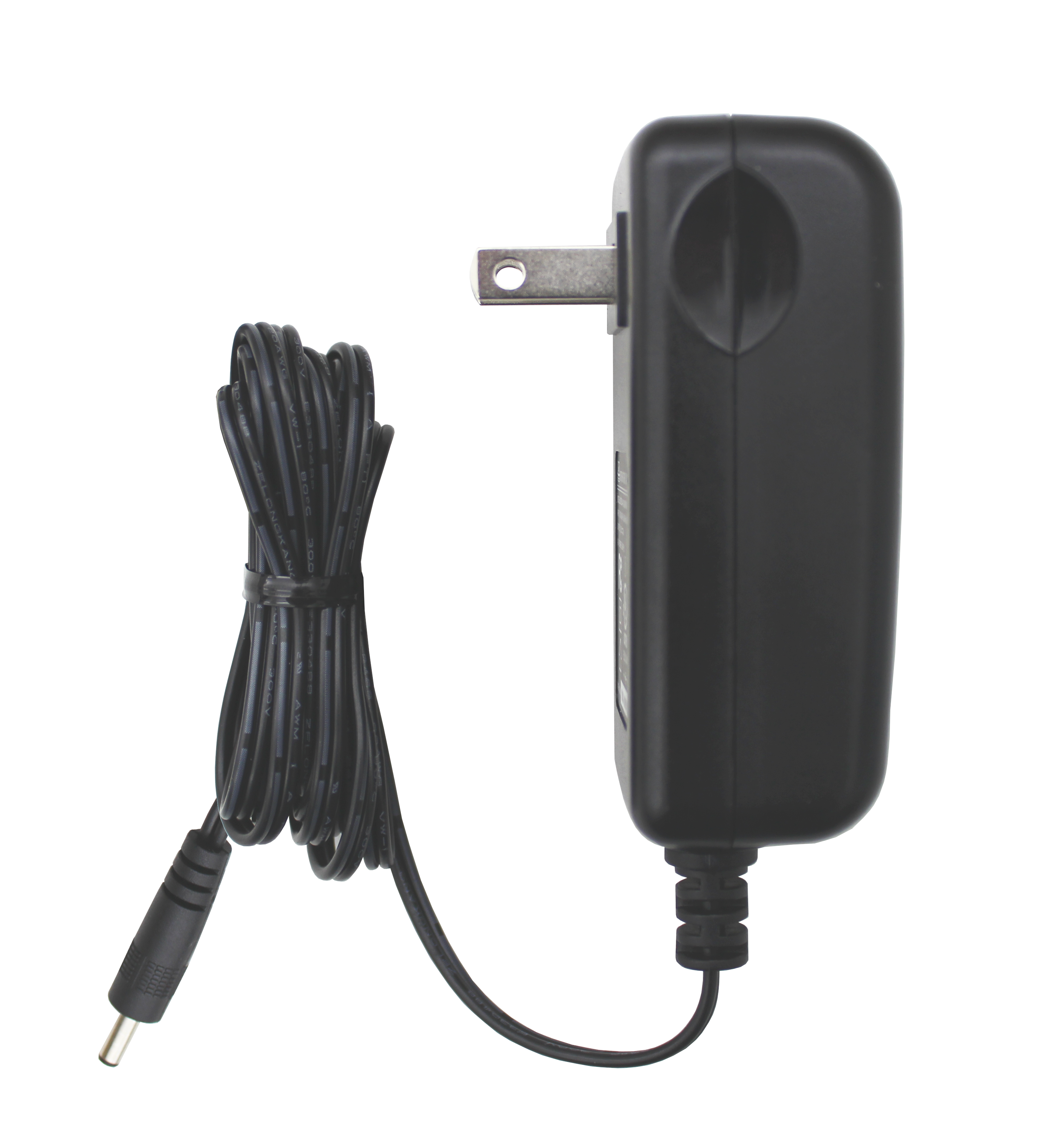

5 AMP (SKU #3753)
- Class 2, Level VI, UL Listed E479306
- Dimensions: 4.5″(L) x 2.02″(W) x 1.28″(D)
- Overall Standard Cable Length: 91.8″
- AC Input Cable: 44″
- Output Cable: 45.5″
- In-Line Ferrite Bead Diameter: 0.6″
- Input: 100-240VAC, 50/60HZ, 2 AMP
- Output: 12VDC, 5AMP
- DC Plug Size: 3.5mm x 1.3mm
- Polarity: (+) indicated by red wire
- Warranty: 2-Year Limited Warranty
