Description
- INPUT VOLTAGE: 120VAC 50/60Hz input
- OUTPUT VOLTAGE: Constant Voltage 12VDC or 24VDC output
- DIMENSION: 6.77 in x 2.67 in x 1.26 in
- POWER FACTOR: >0.95
- THD: <20%
- MINIMUM LOAD: 8W
- PROTECTIONS: Auto-reset protection for short circuits and over-voltage
- IP RATING: IP20 Indoor Use Only
- CERTIFICATIONS: UL Listed
- CONNECTION TYPE: Bare connection wire
- EFFICIENCY: >90%
- IN-RUSH CURRENT: 0.20A @ 12V/24V
- DIMMING RANGE: Down to 1%
- MAX AMBIENT TEMP: -22F to 122F
- WARRANTY: 5 Year Warranty
Features:
- Dim to 1% with Forward Phase (TRIAC) dimmers

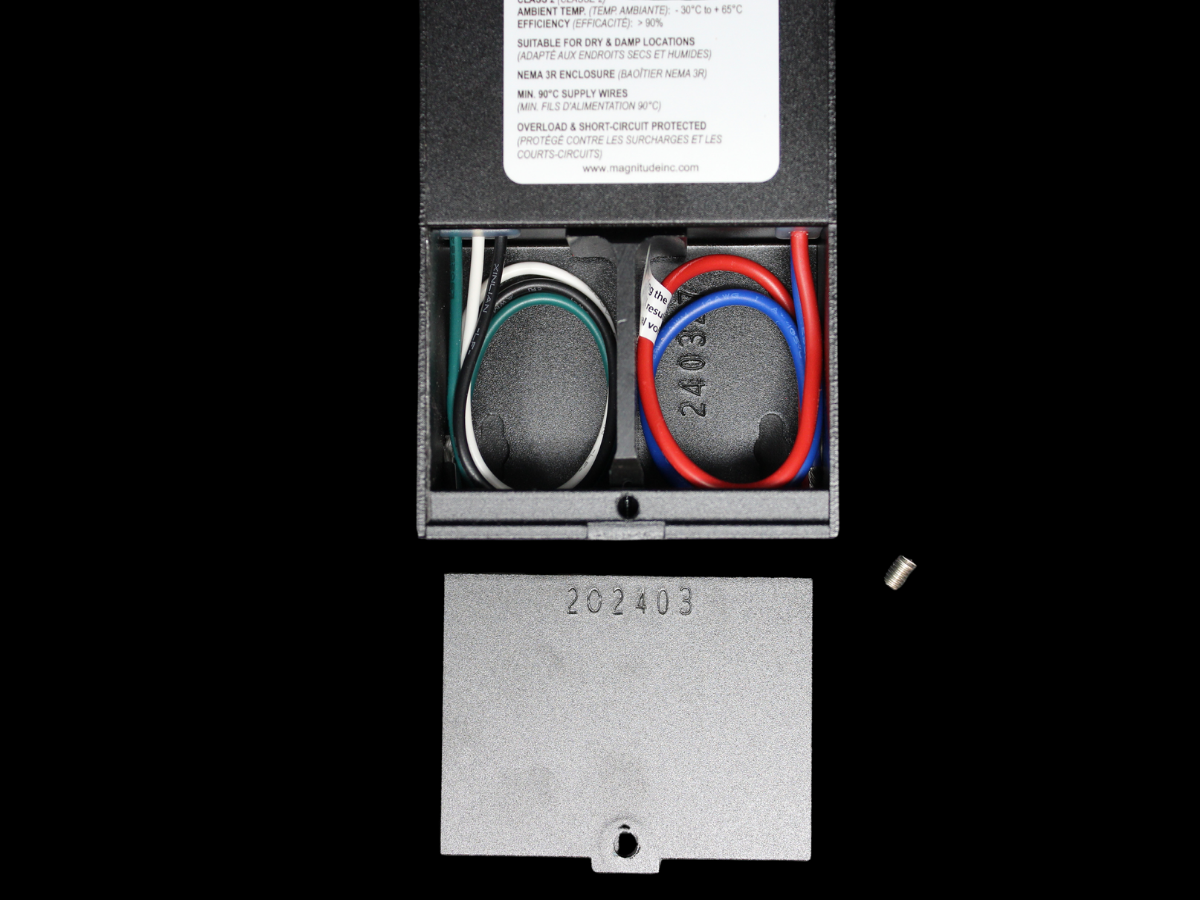

- Integrated wiring compartment
- >90% efficiency provides low operating temps
Product Details:
Magnitudes E-Series dimmable low voltage drivers are class 2 rated, designed to work with Forward Phase (TRIAC) dimmers. Encased in a low profile aluminum enclosure that includes two knock-outs for easy installation, it’s the perfect choice for low-voltage under cabinet lights, tape lights and various LED fixture installations. Driver features auto reset, over current and short circuit protection, and an efficiency of 90% or higher for operation at low temperatures.
