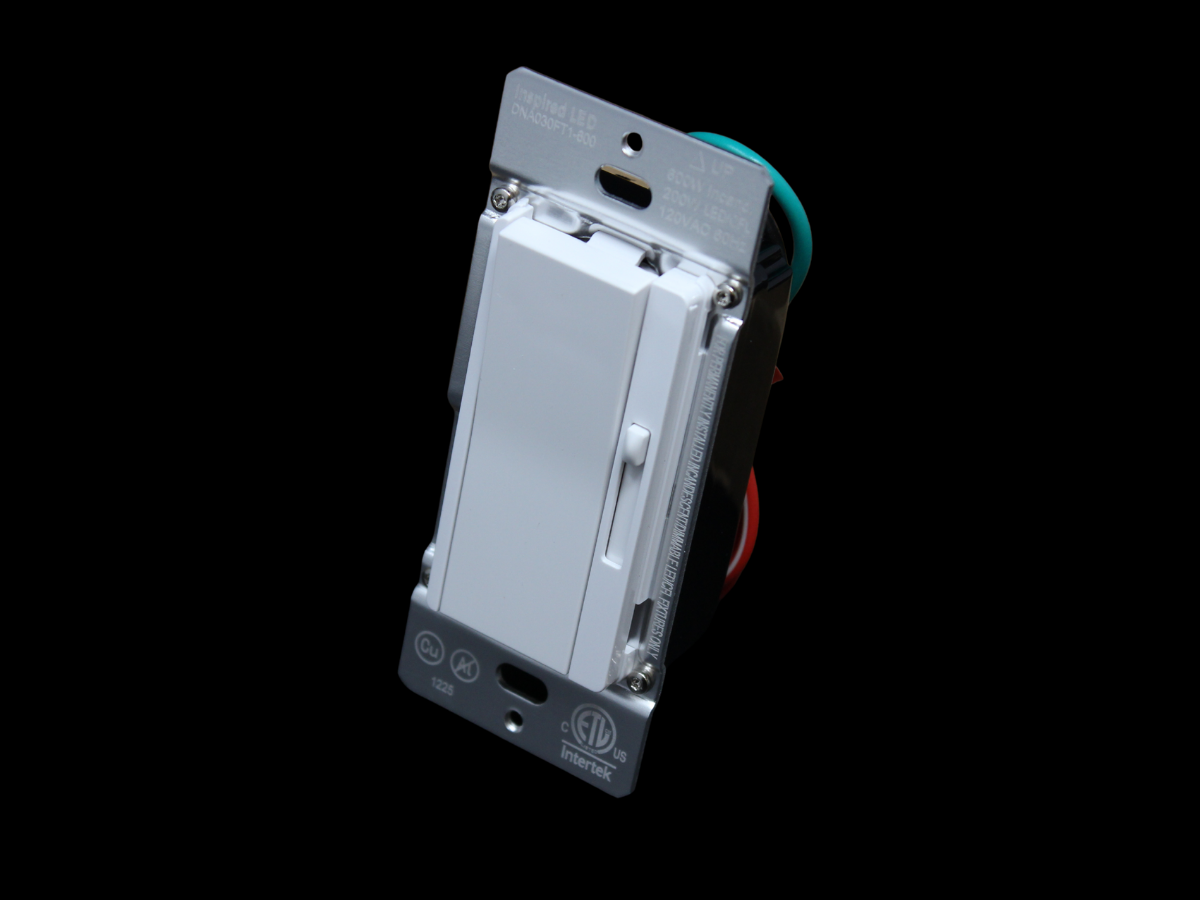

Inspired LED - 200W Decora Style Dimmer Switch
Inspired LED - 200W Decora Style Dimmer Switch - Image 2

Inspired LED – 200W Decora Style Dimmer Switch

$30.00

View Spec Sheet

Inspired LED now has its own phase cut dimmer switch for dimmable hardwired transformers. Ideally suited for leading edge compatible transformers and drivers. Single Pole or 3-Way compatible with a max load of 200W for LED installations. Voltage adjustment wheel for Trim setting, find the ideal dim range. Works with standard Lutron/Decora style faceplates.

  • Rated Voltage: 120VAC/ 60Hz
  • Max Load 200W for LED Loads
  • Min Load 3W for LED Loads
  • Phase Cut (Leading Edge)
  • Single Pole or 3Way
  • Compatible with Lutron/Decora style faceplates (faceplates sold separately)
  • Size: 4.13in x 1.73in x 1.26in (LxWxH)
  • ETL Listed

SKU: 8631 Category:

Description

Instructional Videos

Compatible Products

View Spec Sheet

Inspired LED now has its own phase cut dimmer switch for dimmable hardwired transformers. Ideally suited for leading edge compatible transformers and drivers. Single Pole or 3-Way compatible with a max load of 200W for LED installations. Voltage adjustment wheel for Trim setting, find the ideal dim range. Works with standard Lutron/Decora style faceplates.

  • Rated Voltage: 120VAC/ 60Hz
  • Max Load 200W for LED Loads
  • Min Load 3W for LED Loads
  • Phase Cut (Leading Edge)
  • Single Pole or 3Way
  • Compatible with Lutron/Decora style faceplates (faceplates sold separately)
  • Size: 4.13in x 1.73in x 1.26in (LxWxH)
  • ETL Listed

Additional information

Dimensions 4.13 × 1.73 × 1.26 in
