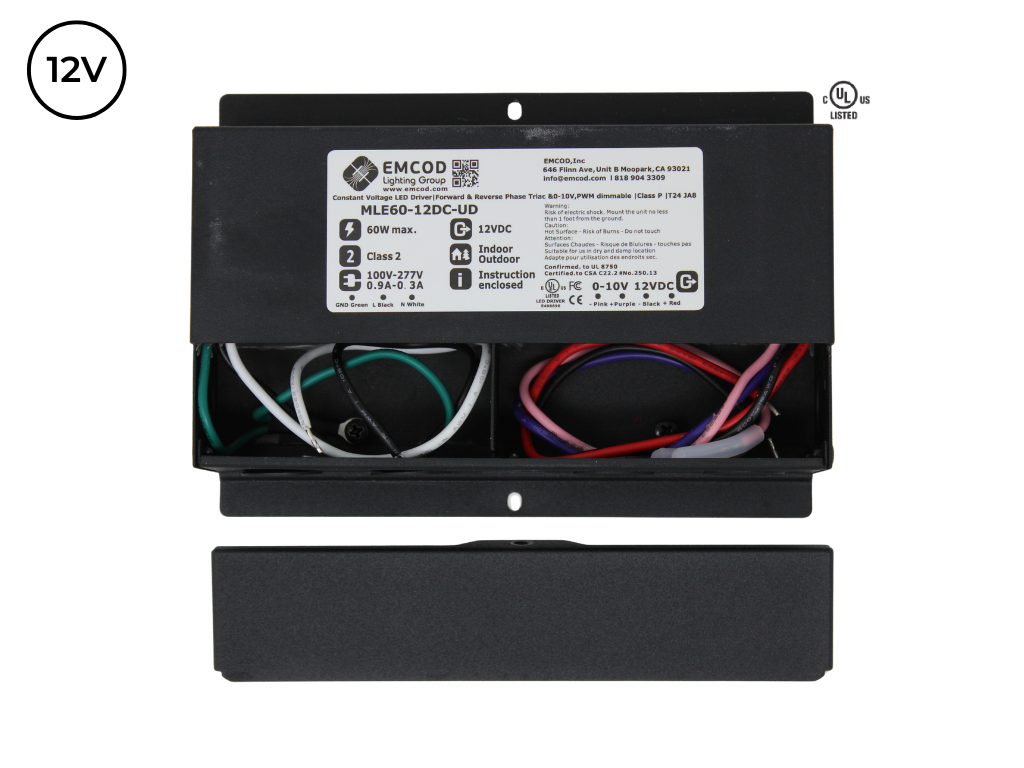

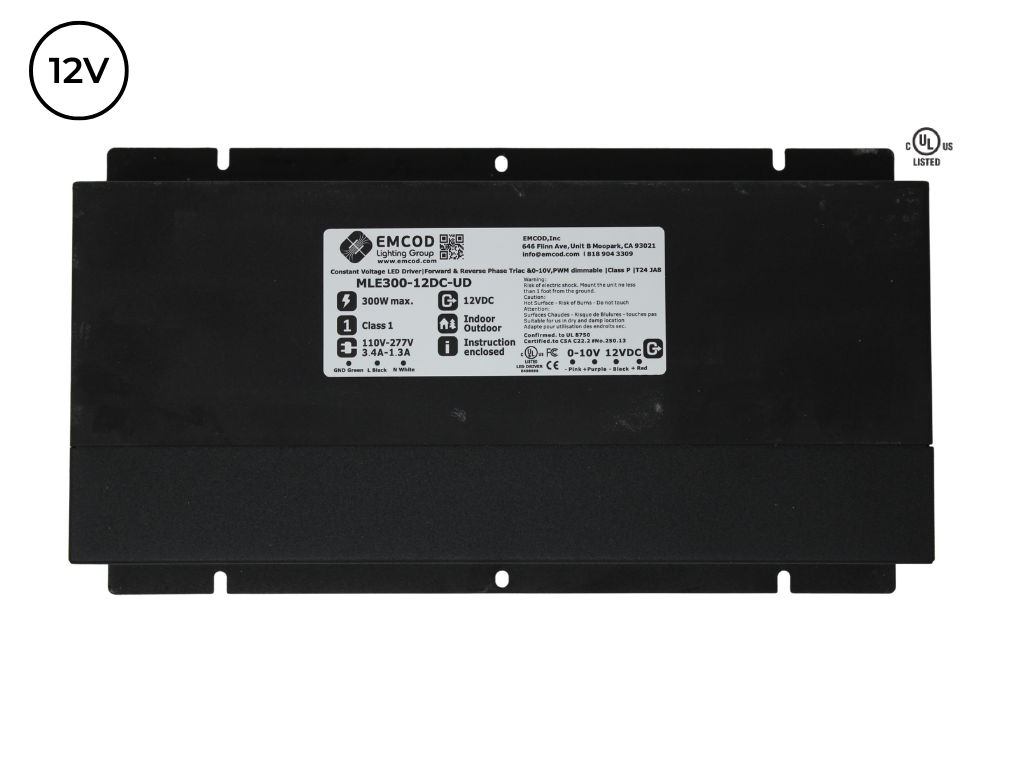

12VDC EMCOD Universal Driver
12VDC EMCOD Universal Driver - Image 2

12VDC EMCOD Universal Driver

Price range: $155.00 through $325.00

The EMCOD 12V Universal 5-in-1 dimmable driver is designed to accept all different types of dimming. It can be used with Forward Phase, MLV, and Reverse Phase, ELV, TRIAC. Also compatible with 0-10V dimming (0-10V, 1-10V, Potentiometer) and PWM in-line dimming. Works great with Inspired LED’s standard 12V LED tape and 12V high density LED and COB tapes.

SKU: 50560 Categories: , Tag:

Description

Compatible Products

Product Features

  • Universal 5-in-1 Dimming: Forward Phase, MLV and Reverse Phase, ELV, TRIAC, o-10V dimming: 0-10V/1-10V/Potentiometer/10V & PWM in-line
  • Smooth, flicker-free dimming to 1%
  • Compatible with a wide variety of Inspired LED products, including COB
  • Universal Input Voltage: 120-277VAC
  • Outdoor-rated NEMA 3R enclosure with built-in junction box, for dry, damp and wet locations.
  • 5-year warranty

Specifications

  • Output options:
    • 12VDC 60W (5A) SKU:8620
    • 12VDC 100W (8.3A) SKU:8621
    • 12VDC 200W (16.6A) SKU:8622
    • 12V DC 300W (25A) SKU: 8623
  • Input: 120VAC – 277VAC
  • Working Temperature: Not to exceed 158˚F
  • Ambient Temperature: 113˚F
  • Dimming Range: Flicker-free to 1%
  • Minimum Load: 5%
  • Safety Standards:
    • Class 2
    • Conforms to UL STD. 8750 and 1310
    • Certified to CAN/CSA-C.22.2 No.250.0 (US)
