Description

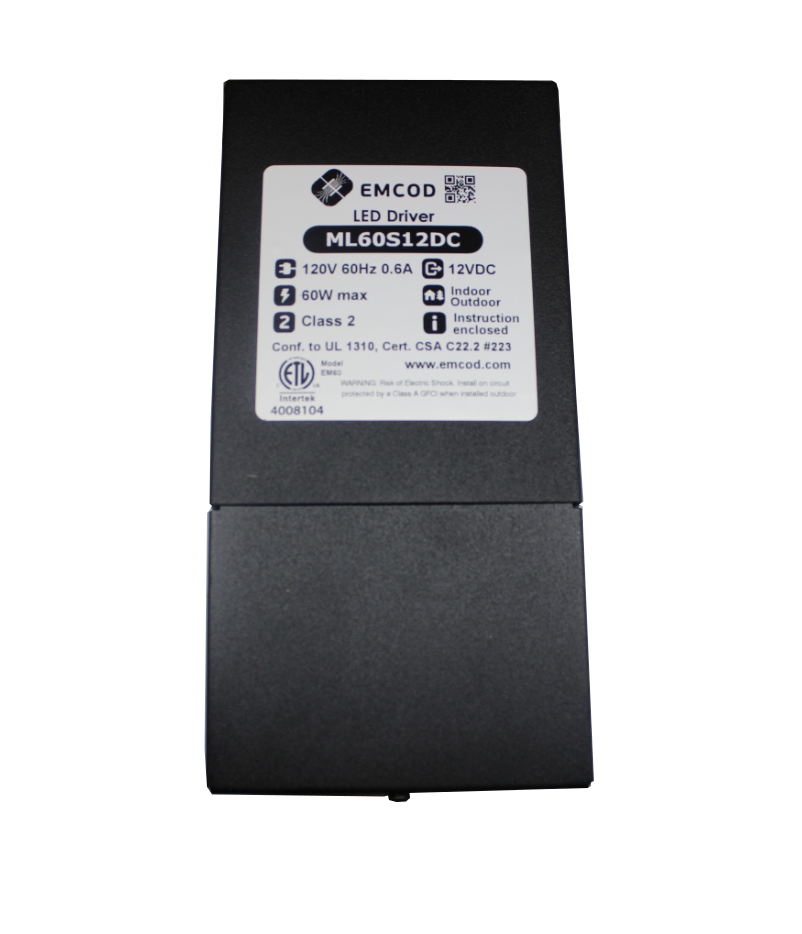

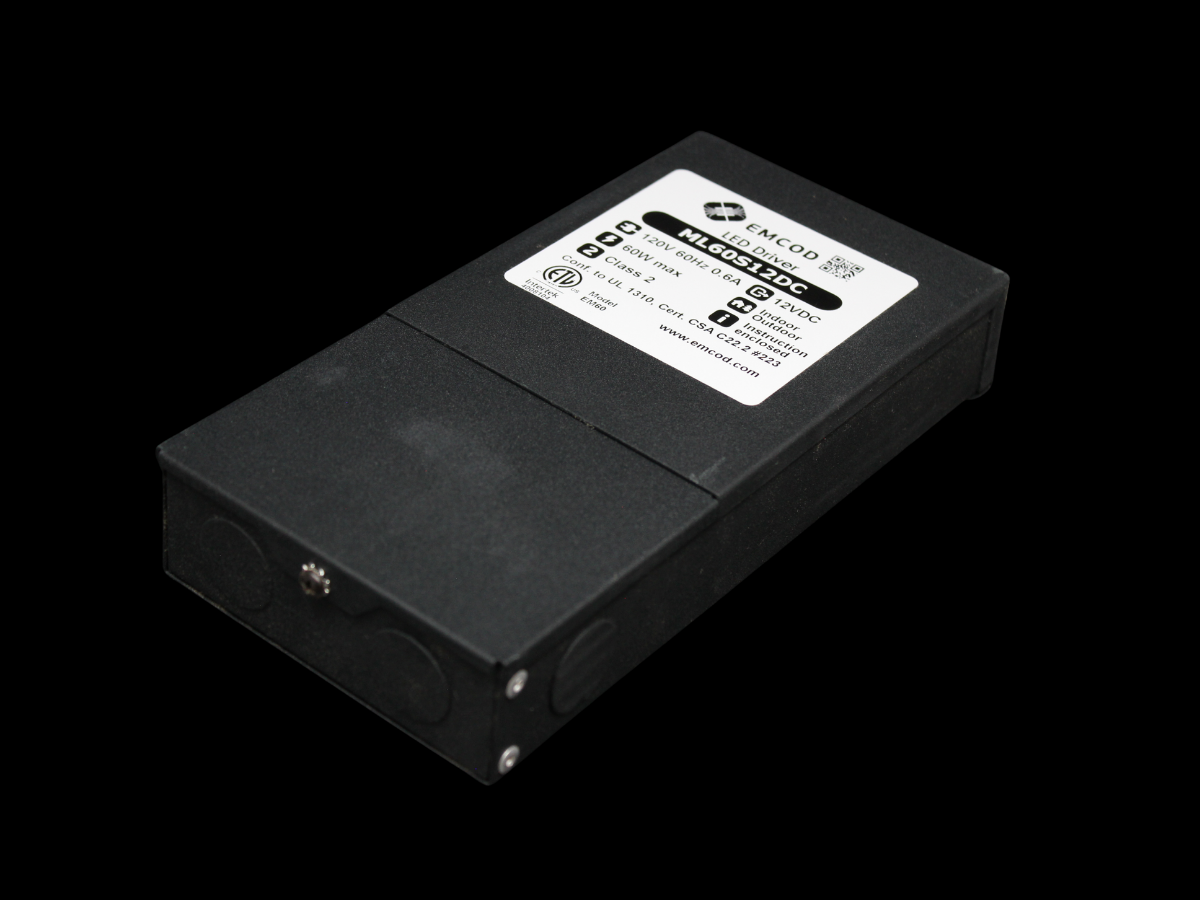

The EMCOD magnetic dimmable transformer is a hardwire magnetic class 2 driver. Allows you to dim your LED strip lights from a wall dimmer/switch. Needs to be used with a compatible low voltage magnetic single-pole dimmer. The transformer will also need cable to travel from LED strips to the driver. (not included) Available in both 40w and 60w versions.
- Dimmable with standard MLV/TRIAC (leading edge) dimmer/switches. Compatible with Lutron Magnetic DVLV Dimmer.

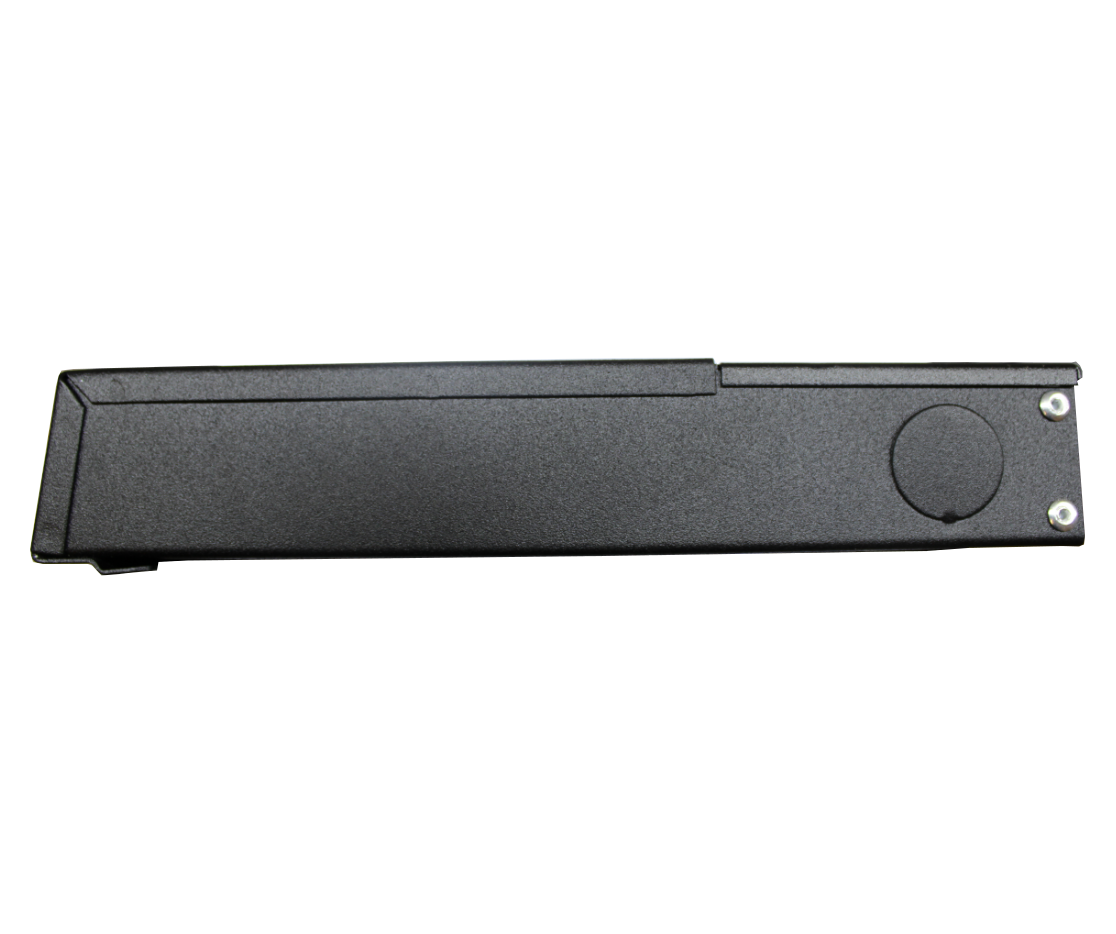

- Black powder coated steel enclosure
- Outdoor-rated NEMA 3R enclosure with built-in junction box, for dry, damp and wet locations
- Requires a cable to run from the dimmable transformer to the first light(s) – Can use Inspired LED interconnect cables or bulk in wall cables to wire nut into the transformer. (This cable is not included)
- 5-year warranty
- Output:
- 12V 40W (3.3A) SKU: 3950
- 12V 60W (5A) SKU: 3552
- Input: 120VAC
- Enclosure Temperature: Not to exceed 167˚F
- Ambient Temperature: 113˚F
- Minimum Load: 5%
- Safety Standards:
- Class 2
- Conforms to UL STD. 1310
- Certified to CAN/CSA-C22.2 No.223 (US)
