Description

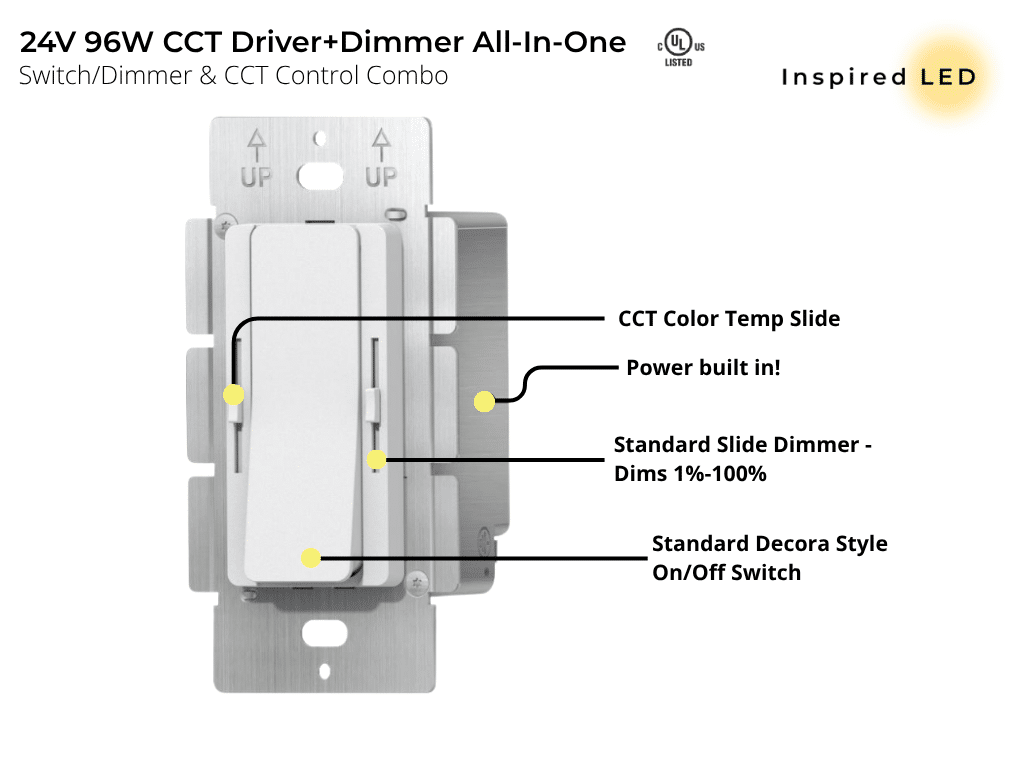

The EMCOD CCT Color Shifting Driver+Dimmer All-in-One combo makes low voltage control easier than ever by combining a decora style dimmer switch and dimmable driver into a single unit. Tunable White compatible using two slide dimmers – right side controls brightness and left side controls color temperature. Designed to work with Inspired LED’s 24V Tunable White COB LED (SKU: 24V-COB-TW-5M). Uses 3-Conductor 24V low-voltage cable to terminate to LED strips.
Product Features:
- Dimmer + Power Supply + CCT color temp combo
- Right Slider controls brightness
- Left Slider controls color temperature
- Short Circuit/ Over-Load/ Over Temperature protections
- Fine-Tune output voltage with voltage adjustment screw
- Fits in standard switch j-boxes
- Dimmer panel not removeable/replaceable
- Dimming range 0.3%-100%
- 5-year warranty
Specifications:
- Output: 24V DC 96W (4Amps)
- Fine-Tune output voltage (24V-26V)
- Input: 120VAC
- Compatible LEDs: 24V Tunable White
- 3-conductor cable required
- Working Temperature: -40˚F – 140˚F
- Dimming Range: 0.3%-100%
- Dimensions: 4.13″ (L) x 2.13″ (W) x 2″ (D)
- Net Weight: 0.55 lbs
- Class 2
- Safety Standards: UL8750 CAN/CSA-C22.2 No.250.13(US)
