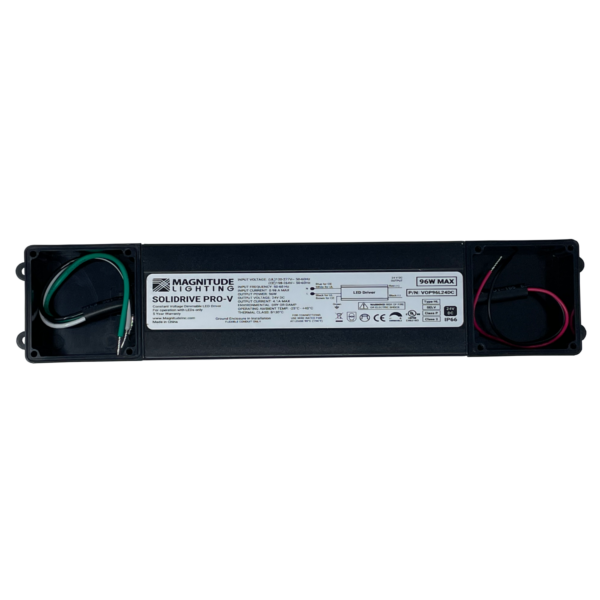

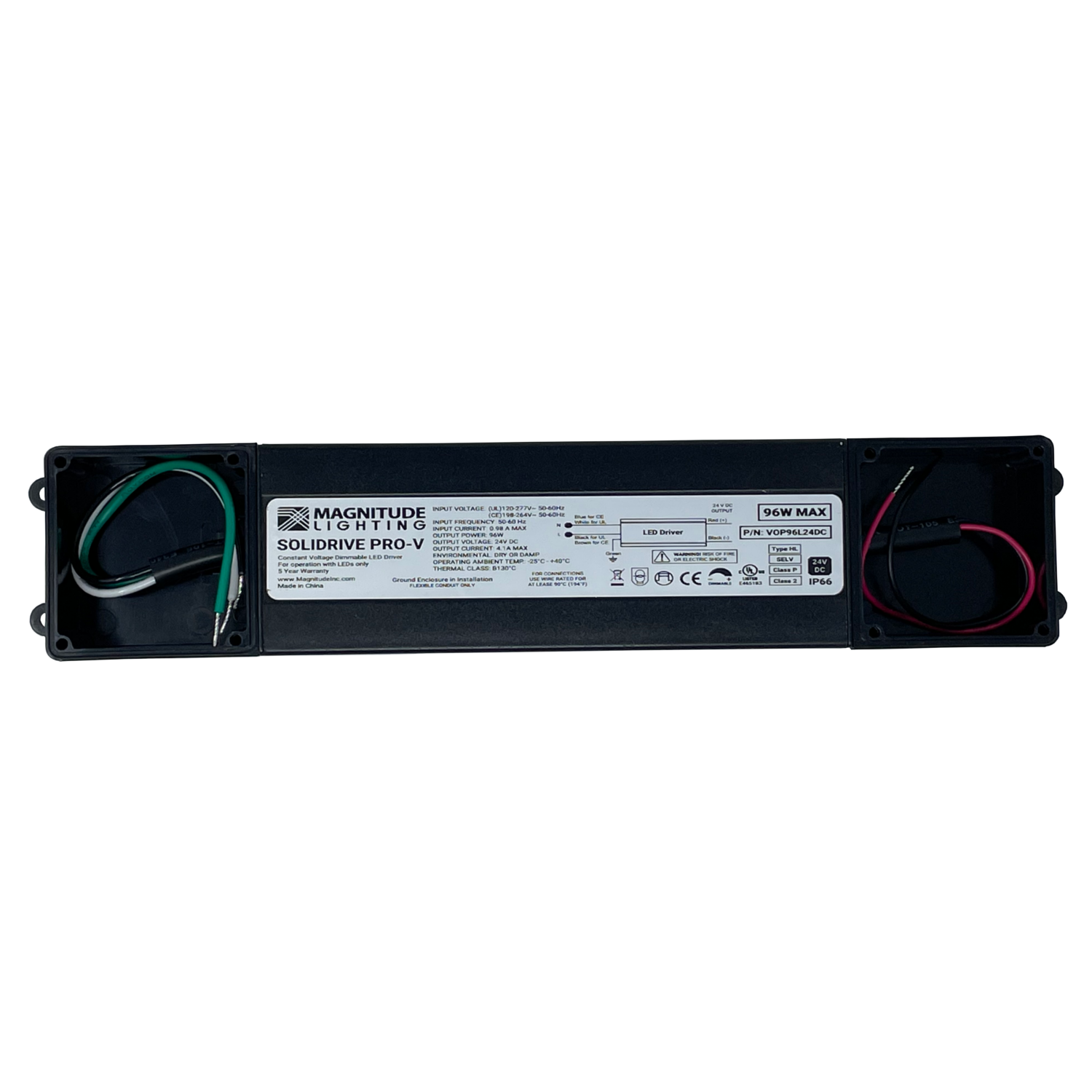

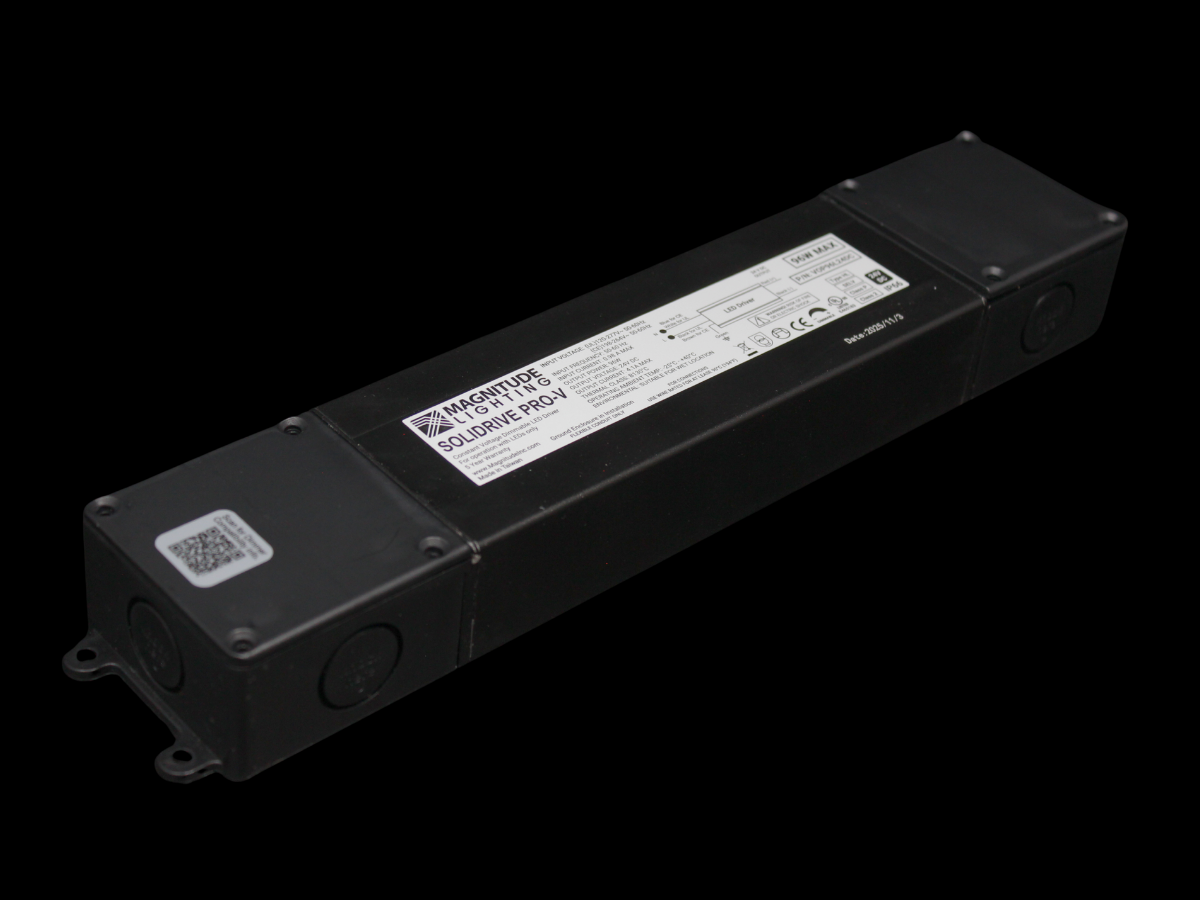

The Magnitude 24VDC Solidrive Pro-V constant voltage Class 2 LED driver allows you to hardwire and dim your 24v LEDs from a compatible MLV Dimmer or ELV dimmer. See the list of approved dimmers recommended by Magnitude Inc. and Inspired LED below.

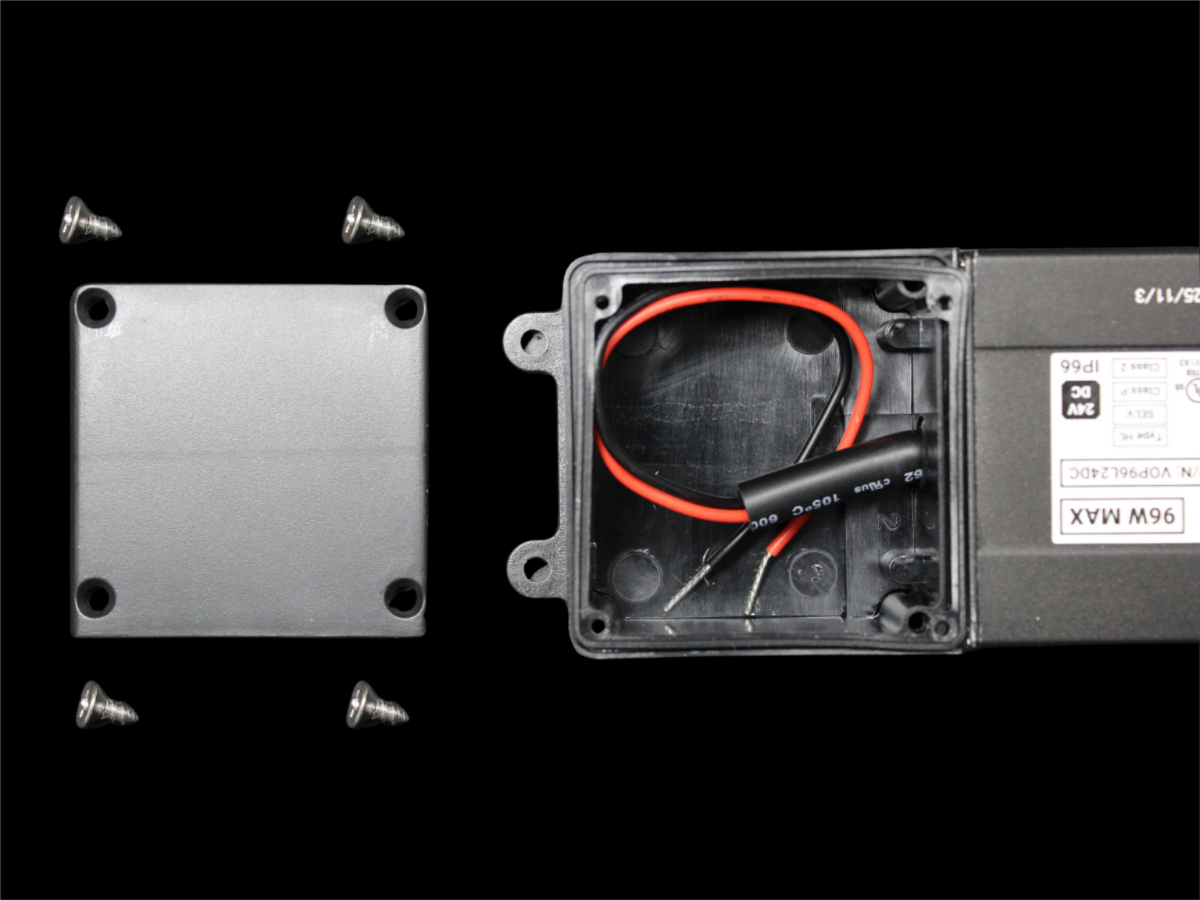

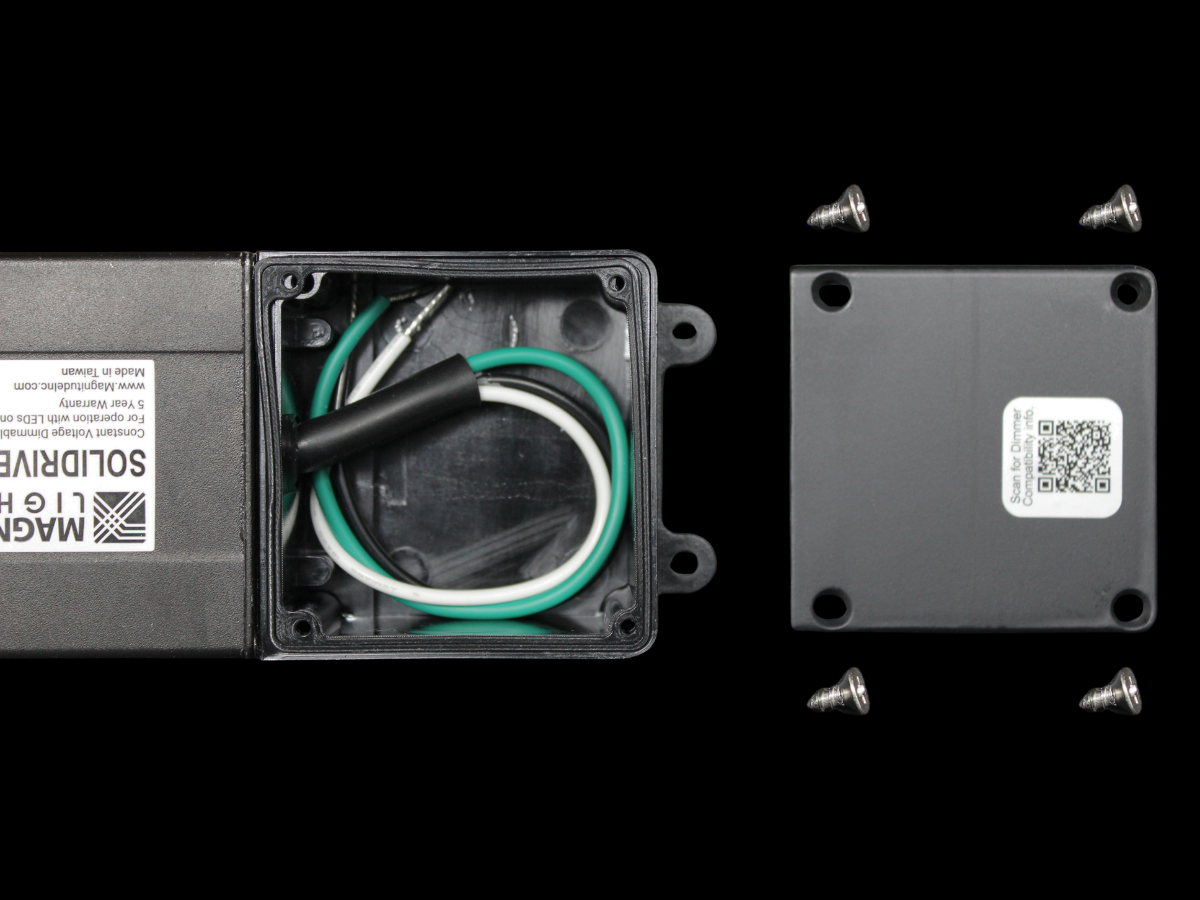

The Solidrive Pro-V driver is UL listed and has a built-in junction box on both the input and output side of the driver. These drivers are IP66 rated and suitable for indoor and outdoor installations. Universal input voltage ranging from 120VAC to 277VAC makes them perfect for residential, commercial, and industrial applications.
Also requires a cable to run from the dimmable transformer to the first light(s) – Use Inspired LED interconnect cables or in wall cables to wire nut into the transformer. (This cable is not included)
Please see our 24V Magnetic Dimmable Drivers for larger transformer/driver sizes.
Features:
- UL Listed Enclosure – built-in junction boxes, (UL8750 approved)
- Universal input voltage 120 – 277VAC
- Phase-cut dimming flicker free down to 1%. (Compatible Dimmer List)
- IP66 – For both Indoor and Outdoor use, Class 2, Class P
- Hiccup Mode protection for short circuits and over temperature
- Overload Protection – CC Mode

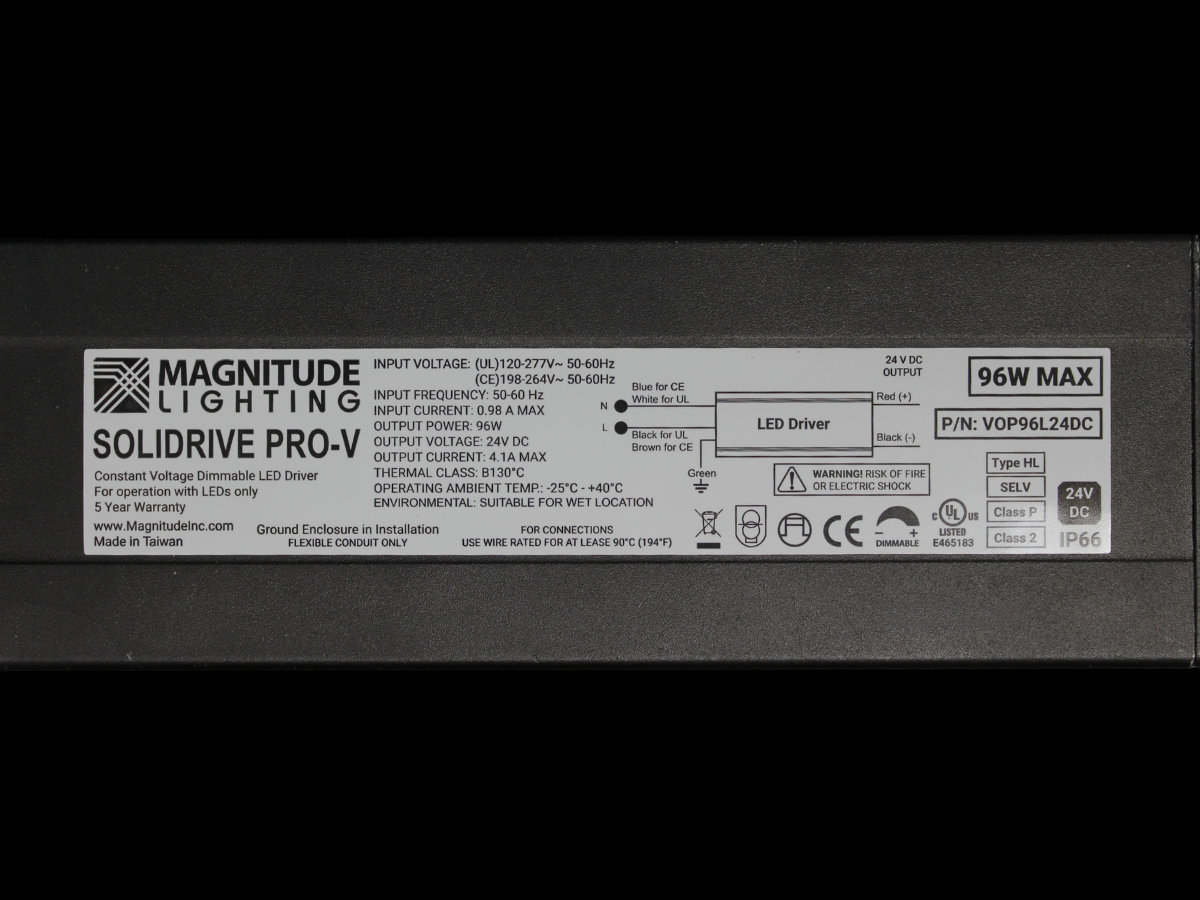

Specifications:
- Input Voltage — 120VAC – 277VAC ± 10%
- Input Current — 0.98 A max
- Max Output Power — 96W
- Minimum Load Requirements — 8W – 96W
- Output Voltage — 24VDC
- Env. Protection Rating — IP66
- Ambient Operating Temperature — -13°F to +104°F
- Expected Lifetime — >50K hours (at <167°F)
- Audible Noise — <24db Class A
- Dimensions (inches) — 12.1″ x 2.36″ x 1.4″
- Weight — 31oz.
