Description
- INPUT VOLTAGE: 120VAC 50/60Hz input
- OUTPUT VOLTAGE: Constant Voltage 12VDC or 24VDC output
- POWER FACTOR: >0.95
- MINIMUM LOAD: 5%
- PROTECTIONS: Auto-reset protection for short circuits and over-voltage
- IP RATING: IP20 Indoor Use Only
- CERTIFICATIONS: UL Listed
- CONNECTION TYPE: Bare connection wire
- EFFICIENCY: >90%
- IN-RUSH CURRENT: 0.20A @ 12V/24V
- DIMMING RANGE: Down to 1%
- MAX AMBIENT TEMP: -22F to 122F
- WARRANTY: 5 Year Warranty
Features:
- Dimmer + Driver Combo
- Compatible with High-density & COB LED Tape light
- Fine-tune output voltage with voltage adjustment screw
Product Details:

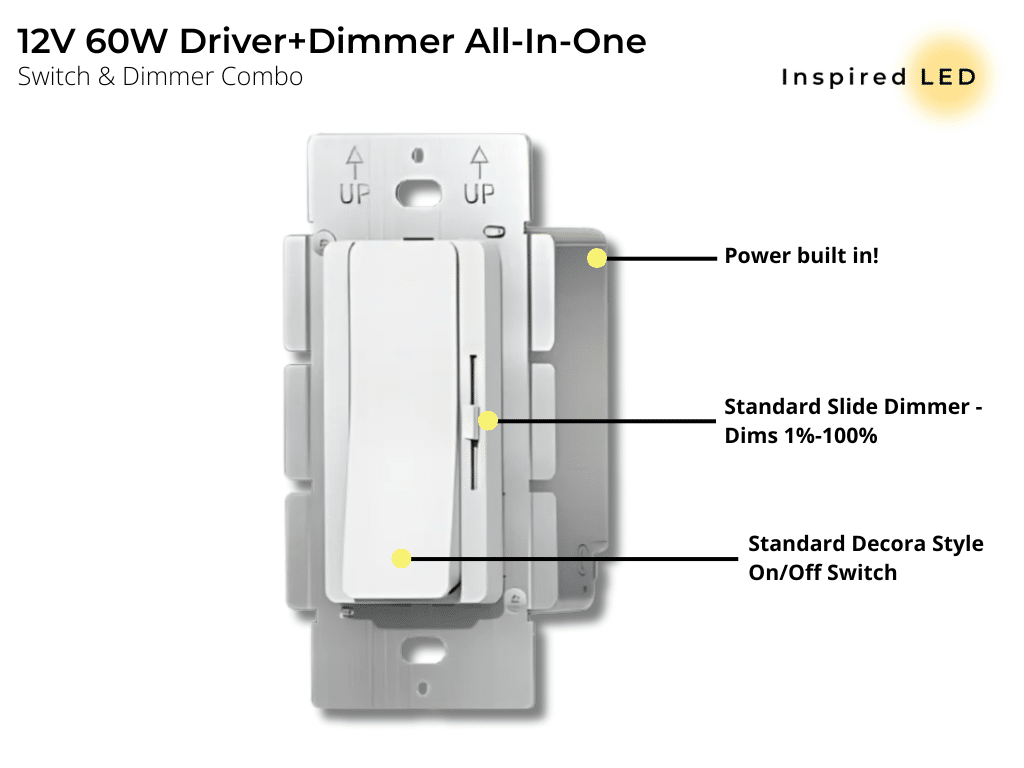

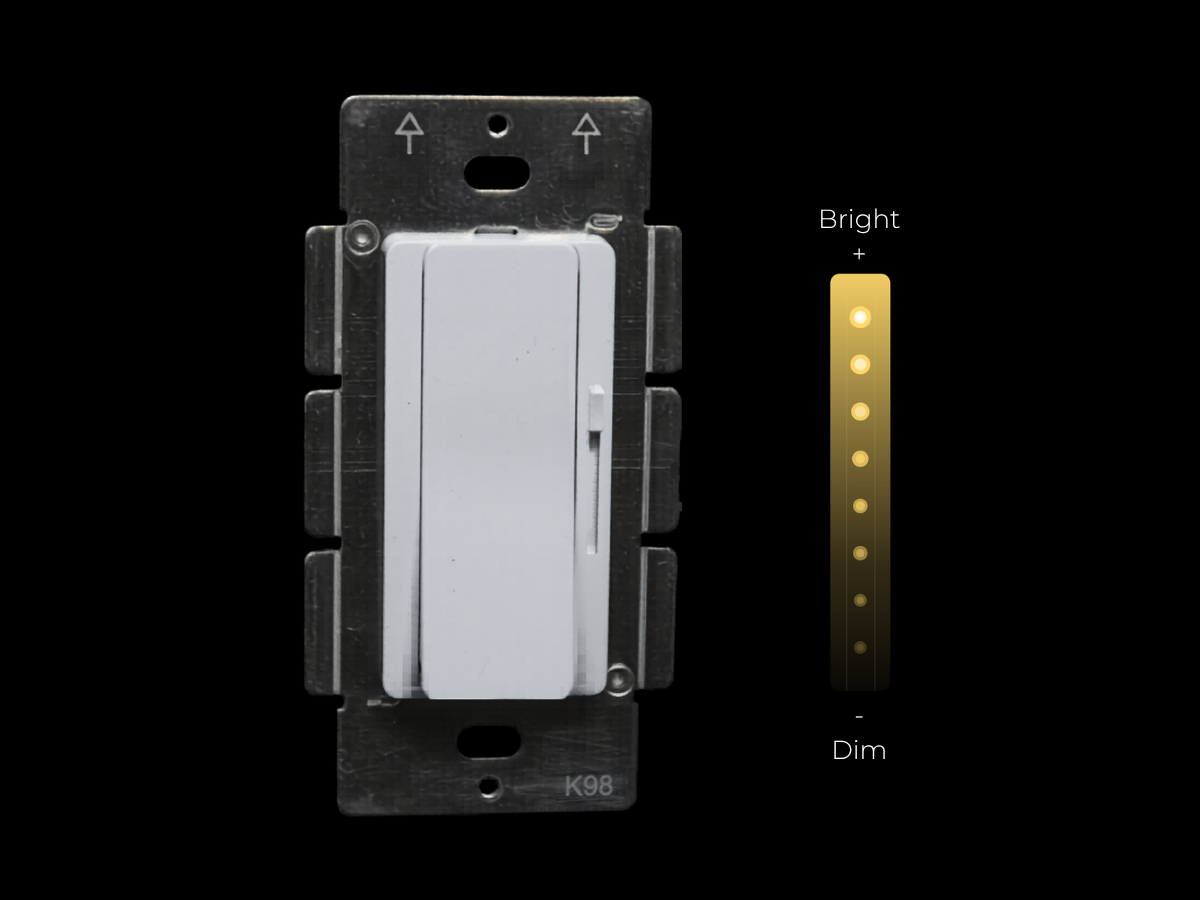

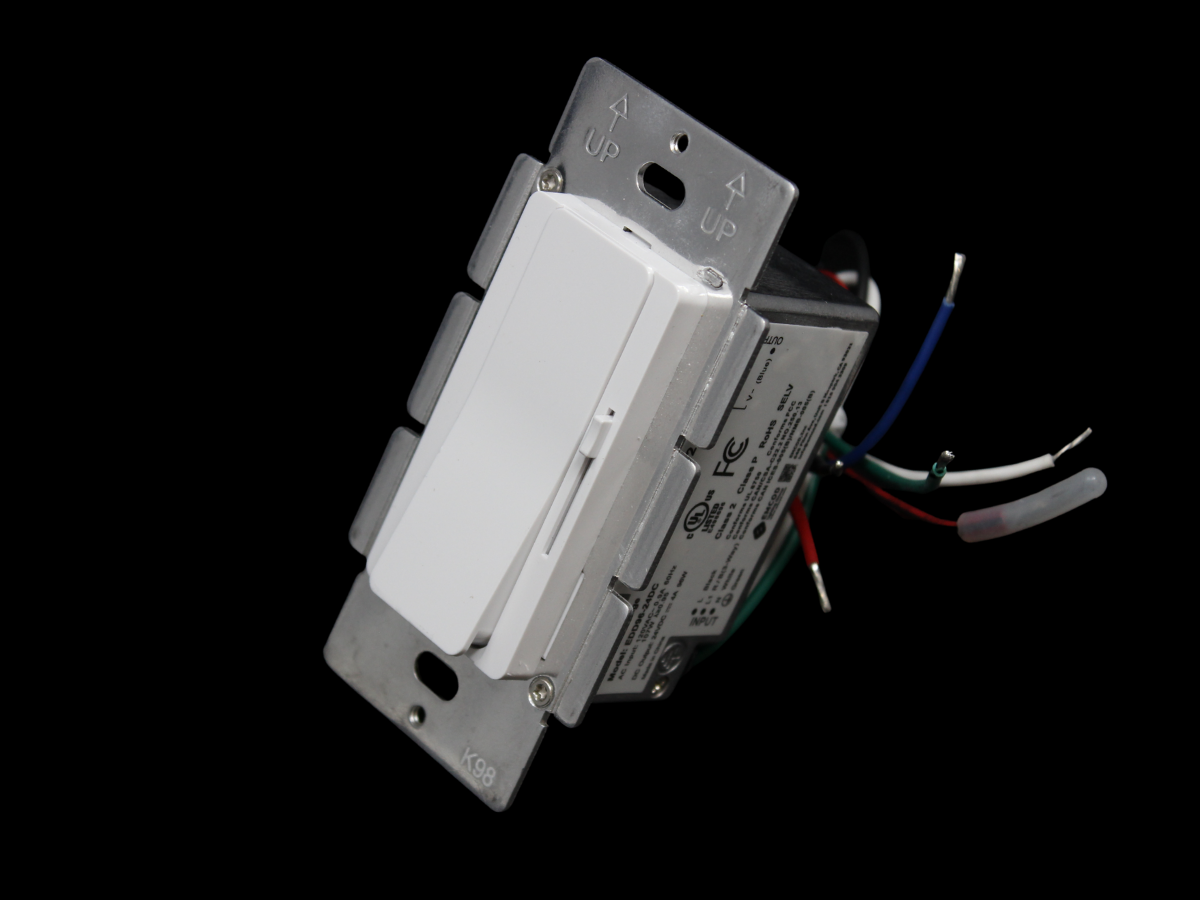

The EMCOD 12V 60W Driver+Dimmer All-in-One combo makes low-voltage control easier than ever by combining a decora style dimmer switch and dimmable driver into a single unit. It features a decora style slide dimmer and paddle on/off switch. Designed to fit into standard wall switch junction boxes. Takes 120V AC and converts to a low-voltage DC. Use with Inspired LEDs 12V LED & COB tape light.
