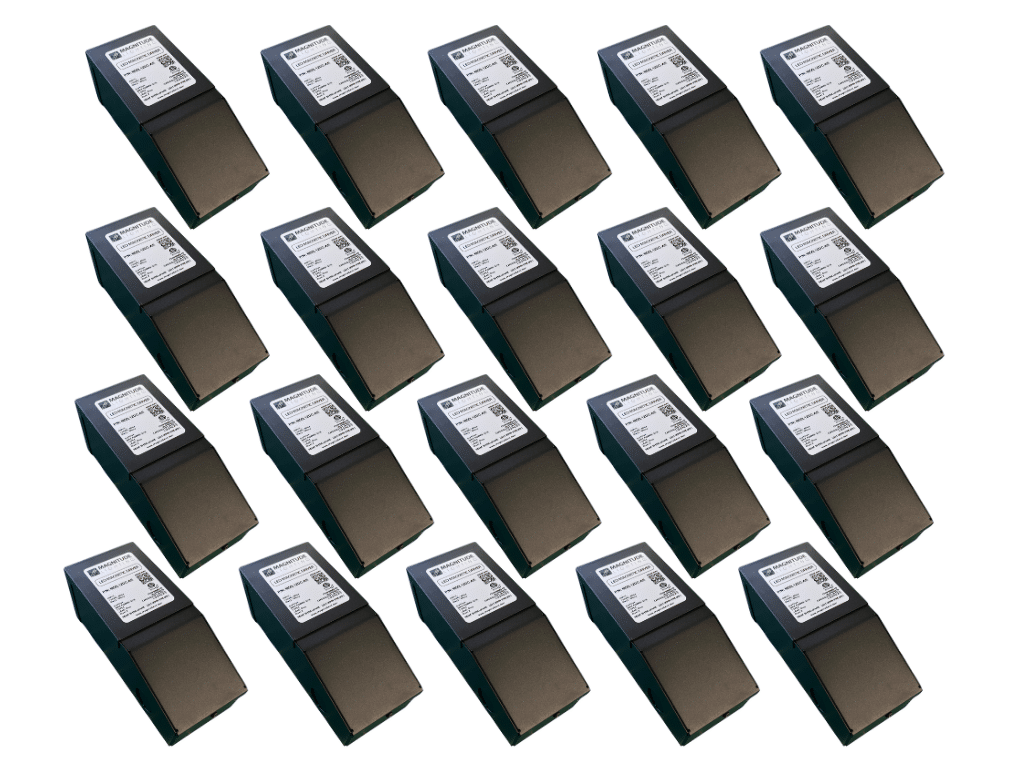

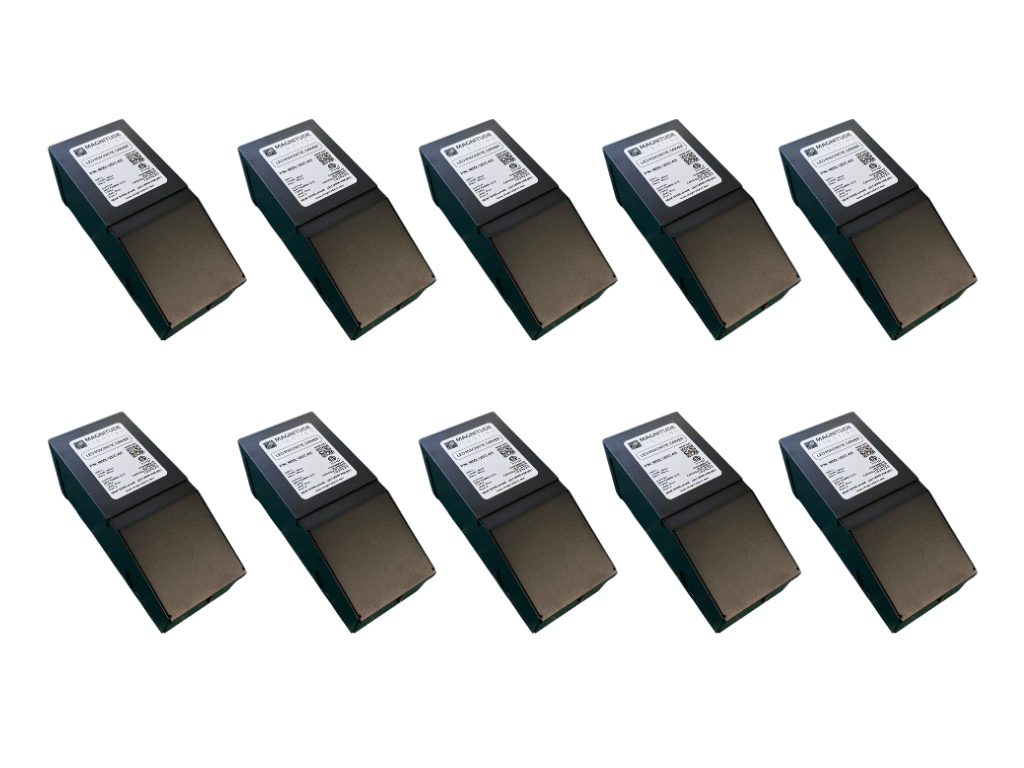

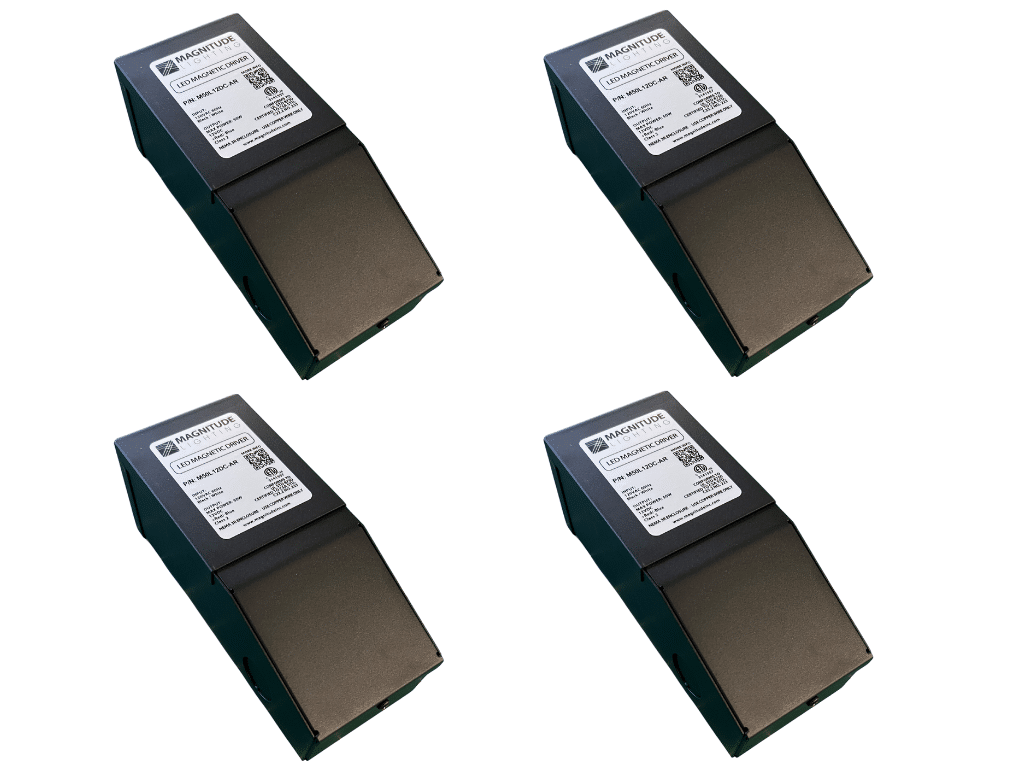

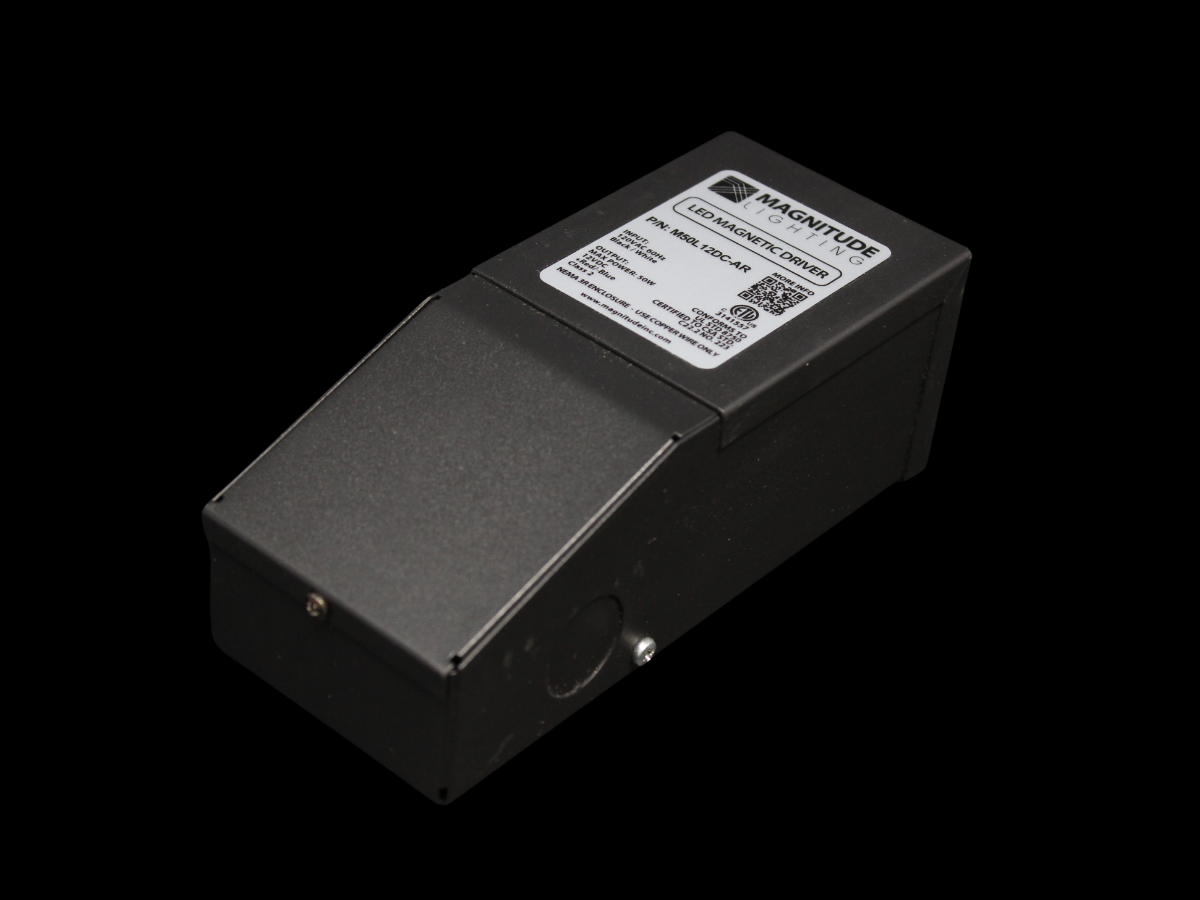

12VDC 50Watt Magnitude Magnetic Transformer - Single & Packs

12VDC 50Watt Magnitude Magnetic Transformer – Single & Packs

Price range: $67.50 through $599.00

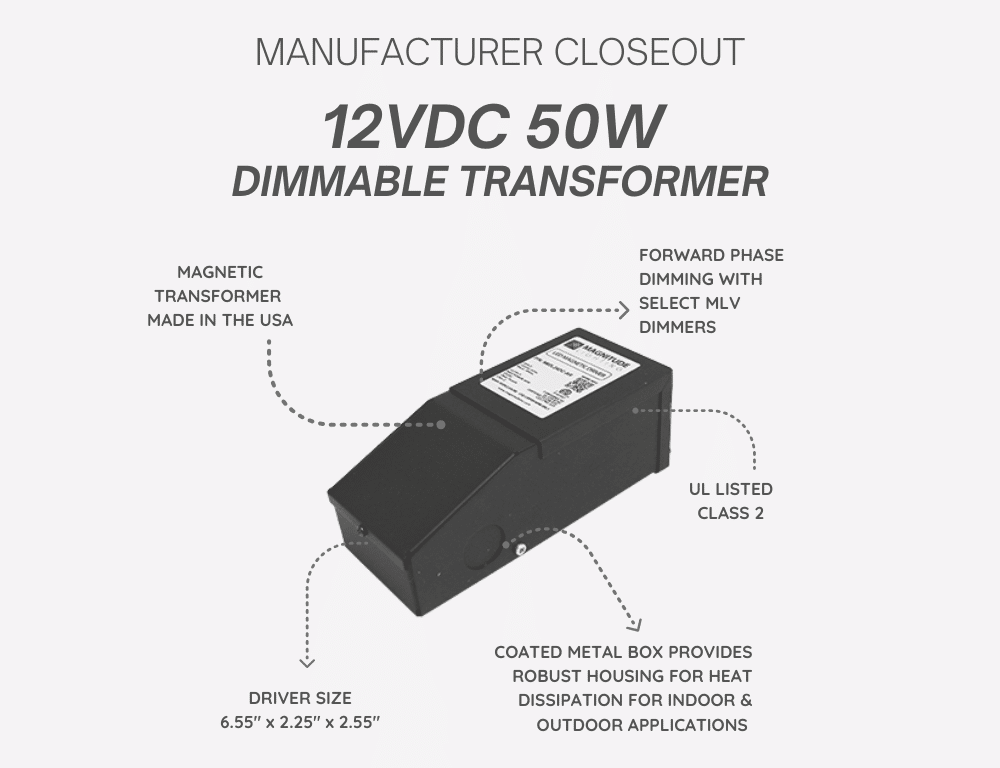

As Arizona’s largest distributor of Magnitude transformers, we’re excited to offer you an exclusive opportunity: a final run of 12VDC 50W Magnetic Dimmable Transformers, available now at deeply discounted pricing, while supplies last.

Magnitude manufactured this limited batch of 50W models to bridge the transition to their new 40W and 60W lineup. These transformers are built to the same exact standards as their other magnetic series, same performance, same compatibility, same installation, just a different wattage.

UL Listed Class 2
Forward-phase dimmable with select MLV dimmers
Robust coated metal housing for indoor & outdoor use
Made in the USA

Pack Size

Clear

SKU: 4809 | 4811 | 4815 | 4816 Categories: Closeout Items, Magnitude Power, Transformers & Power Tag: Hardwired Transformers

Description
Additional information

Description

INPUT VOLTAGE: 120VAC 50/60Hz input
OUTPUT VOLTAGE: Constant Voltage 12VDC or 24VDC output
POWER FACTOR: >0.95
MINIMUM LOAD: 20%
PROTECTIONS: Auto-reset protection for short circuits and over-voltage
IP RATING: IP20 Indoor Use Only

CONNECTION TYPE: Bare connection wire
EFFICIENCY: 60-85%
IN-RUSH CURRENT: 0.36A-0.99A @ 12V/24V
DIMMING RANGE: Down to 1% (with forward phase TRIAC)
MAX AMBIENT TEMP: -22F to 113F
WARRANTY: 5 Year Warranty

Features:

Dim to 1% with Forward Phase (TRIAC) dimmers

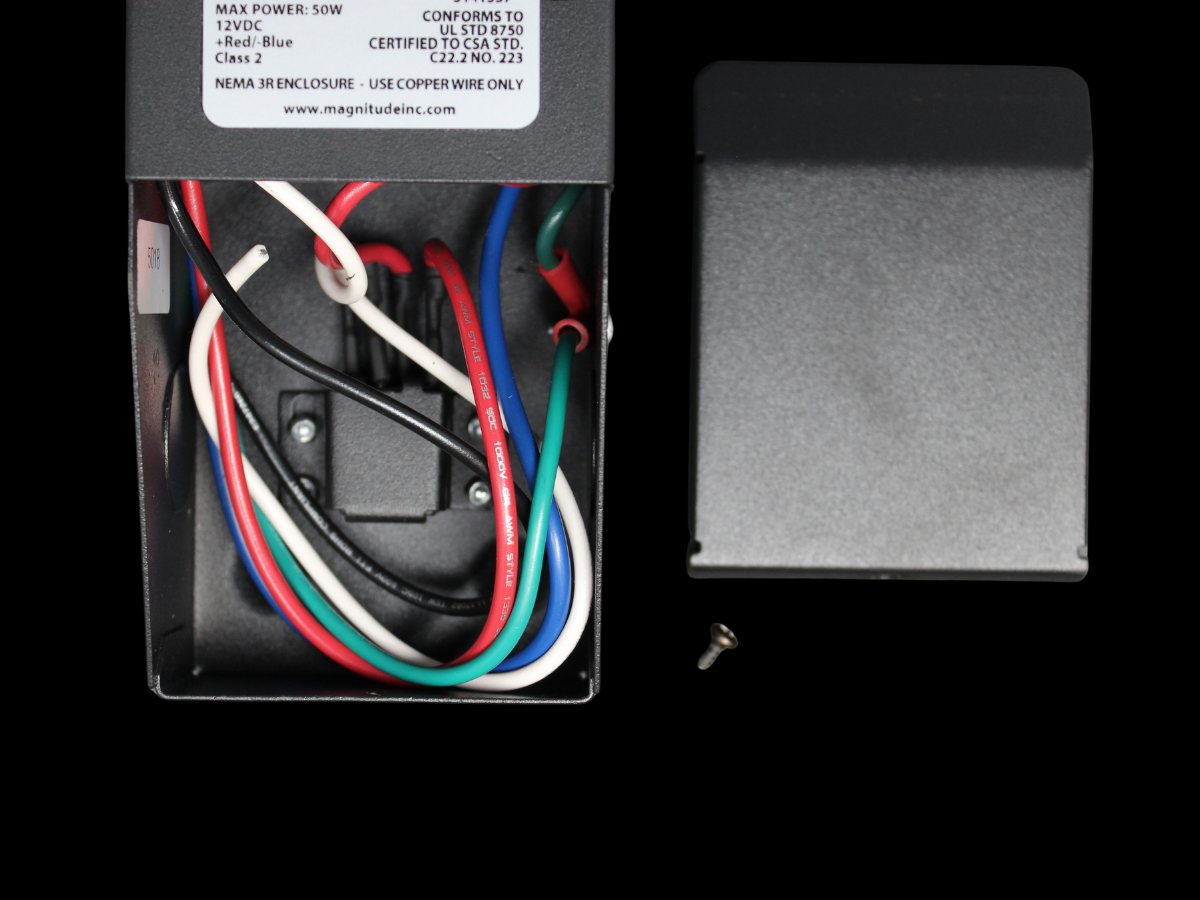

Integrated wiring compartment
Class 2 plus Class 1 high power options

Product Details:

Magnitudes E-Series dimmable low voltage drivers are class 2 rated, designed to work with Forward Phase (TRIAC) dimmers. Encased in a low profile aluminum enclosure that includes two knock-outs for easy installation, it’s the perfect choice for low-voltage under cabinet lights, tape lights and various LED fixture installations. Driver features auto reset, over current and short circuit protection, and an efficiency of 90% or higher for operation at low temperatures.
