Introducing the FlexFit Series

The Problem with Slat Wall Lighting — Until Now

Slat walls are one of the most popular design choices in modern homes, retail spaces, and commercial interiors. The clean vertical lines, warm wood tones, and architectural dimension they add to a room are hard to match. But getting lighting to disappear into a slat wall — to truly integrate rather than just sit on top — has always been a challenge.

Standard LED channels stand out. Round silicone tubes look DIY. Traditional aluminum profiles catch the eye in all the wrong ways. The result is an installation where you can always see the lighting hardware, even when the lights are off, which undercuts the entire aesthetic point of a well-designed slat wall.

That is exactly the problem the FlexFit Series was built to solve.

What Is the FlexFit Series?

The FlexFit Series is a complete slat wall LED lighting system from Inspired LED, built around one core idea: the lighting should be completely invisible when off and completely beautiful when on. Every component in the system is designed with that single goal.

The centerpiece is the FlexFit Black Silicone Lens (SKU 8618), a purpose-built black silicone tube that press-fits into the standard 0.51-inch channel of black-backed slat wall panels. It holds your LED strip inside and is translucent in a way that diffuses the LEDs into a smooth, uniform glow. But from a normal viewing distance with the lights off, the silicone blends entirely into the black backing of the wall. The LED strip, the wiring, and the hardware all simply vanish.

Completing the system are the FlexFit End Caps (SKU 8619-END) and Mid-Caps (SKU 8619-MID), these precision-molded black ABS pieces that slide over connectors at the end of each strip or at mid-slat exit points. Together, they seal the installation, eliminate light leakage, and give every termination point the same seamless finish.

The Effect: Completely Hidden, Then Completely Stunning

The magic of the FlexFit system happens in two moments.

The first is when you step back and look at the wall with the lights off. The black silicone sits flush in the slat channel. The end caps are the same color and finish as the wall backing. There is no glint of aluminum, no visible tube, no hardware to notice. The slat wall simply looks like a slat wall, which is clean, architectural, exactly as the designer intended.

The second moment is when someone turns the lights on for the first time without knowing they’re there. The slats glow from within. The warmth fills the wall from a source that nobody saw coming. It is, in the most literal sense of the word, a reveal.

This is the effect that interior designers, hospitality operators, and premium retail environments have been trying to achieve with slat wall lighting — and the FlexFit Series makes it achievable without custom fabrication, specialist installation, or premium pricing.

The Ideal Pairing: COB LED Strips

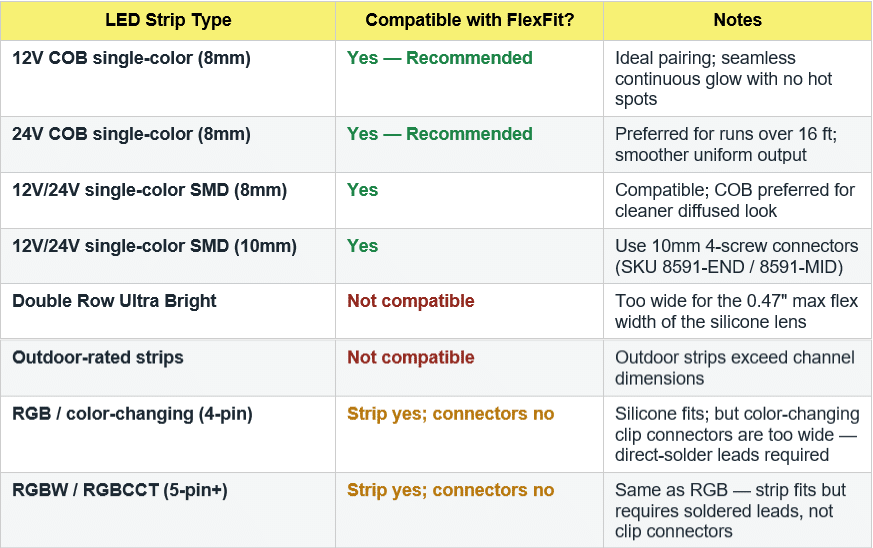

While the FlexFit silicone lens works with all standard single-color Inspired LED strips in 8mm and 10mm widths, the pairing we recommend, and the one that produces the most breathtaking result, is our 12V or 24V COB (chip-on-board) single-color LED strips.

Why COB makes the difference

Traditional SMD LED strips have discrete individual LED diodes spaced at regular intervals along the strip. Even with a diffuser, the individual dots can sometimes be visible as a dotted line of light rather than a truly continuous glow, particularly at shorter viewing distances.

COB strips use a continuous line of chip-on-board LED emitters that produce a smooth, unbroken line of light from end to end with no visible dots, no hot spots, and no shadowing. Through the translucent black silicone of the FlexFit lens, a COB strip appears as a perfectly even, warm-glowing line — not a series of points. The effect is substantially more premium than any dot-pattern strip can achieve.

Connector compatibility: keep it simple

For single-color 8mm and 10mm COB and SMD strips, the 4-screw solderless connectors (SKUs 8579-END, 8579-MID for 8mm; SKUs 8591-END, 8591-MID for 10mm) are fully compatible with the FlexFit channel and make the installation user-friendly. These small, clear connectors fit inside the slat channel beneath the silicone lens, then get covered by the End Cap or Mid-Cap for a completely concealed finish.

Beyond LED Strips: The Most Versatile Wire Management Solution for Slat Walls

Here is where the FlexFit system reveals a capability that surprises most first-time users: the black silicone tubing is not just for LED strips. It is the cleanest wire management solution available for any cable that needs to travel vertically along a slat wall.

TV and Media Cables

If your slat wall has a mounted television, you know the frustration of HDMI cables, power cords, and audio leads dangling below the screen or taped awkwardly to the wall surface. The FlexFit silicone can carry these cables inside the slat channel from the TV mount point down to the equipment shelf or outlet, completely concealed behind the same black finish as the wall. Switch the TV off and the wall looks clean.

Sconce and Fixture Wiring

Wall sconces, picture lights, and any other wall-mounted fixtures that need power routed vertically can use the FlexFit silicone tubing as their cable conduit. The wire runs behind the tubing, the tubing sits flush in the slat, and the channel becomes invisible against the black backing. For designers who want to add point lighting to a slat wall feature without exposing any wiring, this is the solution.

Low-voltage wiring of all kinds

Speaker wire, data cables, landscape lighting low-voltage runs, and any other low-voltage wiring that needs to traverse a slat wall surface can be routed through the slats using our FlexFit silicone. The system is, at its core, a press-fit wire management track that happens to also be the perfect LED housing, and both functions work simultaneously in the same slat.

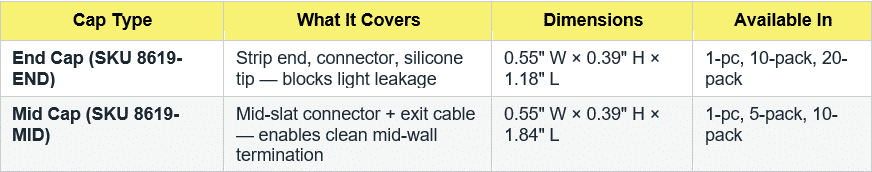

End Caps and Mid-Caps: The Details That Make it Perfect

The FlexFit lens does the heavy lifting on concealment. But it is the End Caps and Mid-Caps that provide that professional finish.

End Caps (SKU 8619-END)

End Caps mount at each end of an installed LED strip run. They serve three functions simultaneously: they cover the solderless connector at the strip termination point, they extend slightly over the end of the silicone lens to eliminate any visible gap or seam at the cap-to-silicone transition, and they prevent any residual light bleed from the connector end of the strip from leaking forward out of the channel.

The End Cap is molded from ABS POLYLAC® 765 in a smooth black finish that matches the silicone and the wall backing. Installed on both ends of every strip, the result is a termination that does not look terminated, rather it looks like the slat wall simply has no hardware in it at all.

End Caps are sold individually and in 10-packs and 20-packs to suit any installation size.

Mid-Caps (SKU 8619-MID)

Mid-Caps solve a specific challenge that comes up frequently in real-world slat wall installations: what do you do when the power connector needs to exit mid-slat, rather than at the edge of the wall?

Without a Mid-Cap, a mid-slat termination leaves a visible connector and exit cable in the middle of the slat — the exact kind of hardware detail that undermines the clean aesthetic of the installation. The Mid-Cap is a slightly longer version of the End Cap that covers both the connector and the attached exit cable, allowing the wire to exit discreetly from a mid-slat position and be routed vertically toward the top or bottom of the wall. Combined with additional silicone tubing covering the cable run, the result is indistinguishable from any other part of the wall.

Mid-Caps are available in 5-packs and 10-packs. They are the detail most commonly overlooked when planning a FlexFit install and the one that most noticeably elevates the finished result when used correctly.

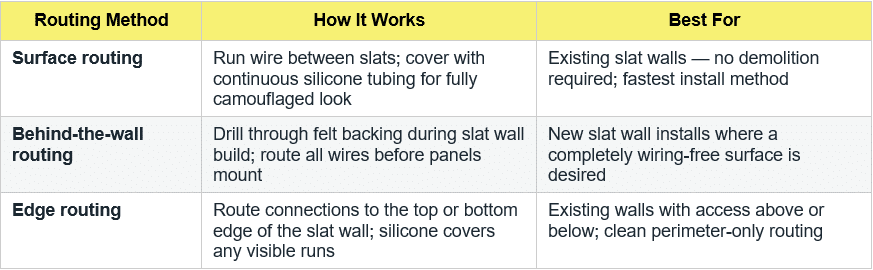

Wire Routing Options: Three Ways to Keep it Clean

One of the FlexFit system’s practical strengths is its flexibility when it comes to hiding the wiring that feeds power to each strip. Whether you are retrofitting an existing slat wall or building a new installation from scratch, there is an approach that keeps everything completely concealed.

For most retrofit installations, which are the majority of FlexFit projects, surface routing is the right approach. Run the wire in the channel between slats, cover both the LED strip and the wire with a continuous piece of silicone tubing, and the entire system disappears into the wall surface. No demolition, no patching, no compromise on the finished look.

Step-by-Step Installation Overview

A complete FlexFit installation follows eight steps. The process is designed to be completed by any confident DIYer — no soldering required for single-color builds; no specialist tools needed beyond a tape measure, a small screwdriver, and scissors.

1. Plan your layout. Count the slats to be lit, measure each run length, decide where power will enter, and plan wire routing paths. Use painter’s tape on the wall to visualize placement before committing.
2. Cut and prepare LED strips. Cut each COB or single-color strip to length at the marked cut points. Attach 4-screw solderless connectors and terminate lead wires for connection to the driver.
3. Choose your wire routing method. Surface routing (between slats, covered by continuous silicone), behind-the-wall routing (new builds only, wires through felt backing), or edge routing (wires exit at top or bottom of wall).
4. Dry fit everything before adhering. Place each strip into its slat, add End Caps over the connectors, and check spacing and alignment. End Caps add length, so this step ensures the fit is correct before permanent adhesion.
5. Install the LED strips. Adhere the strips into place within each slat. Ensure they are straight and evenly positioned as this defines the clean lines of the finished installation.
6. Fit the silicone and caps. Insert the black silicone lens into the slat, running it up to the connector. Place the End Cap or Mid Cap over the connector. Leave the remaining silicone loose temporarily.
7. Cut and finalize the silicone. Cut the silicone approximately 1” longer than needed. Press fully into the slat, trim to final length, and add the final End Cap. You are aiming for a tight, gap-free finish with no visible seams.
8. Connect power and test. Connect to your LED driver and dimmer per component instructions. Test all strips before closing up any wire management. Verify even brightness along each run.

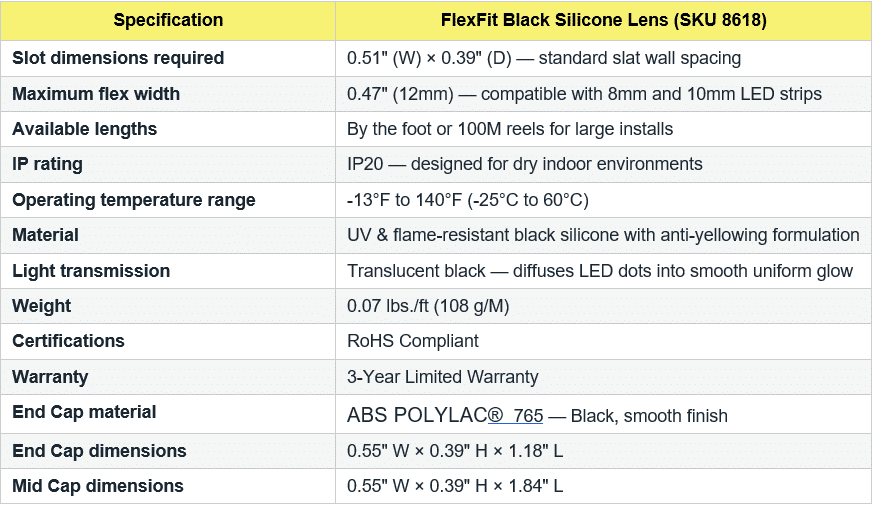

Technical Specifications

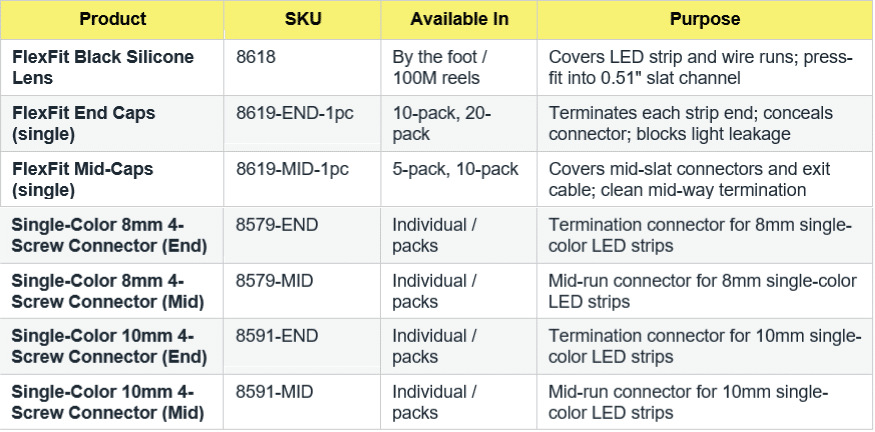

Full Product Reference — FlexFit Series SKUs

Where the FlexFit Series Works Best

The FlexFit system was designed for slat walls but the applications where it delivers its most striking results span residential, commercial, and hospitality environments wherever black-backed slat panels are used as a design feature.

Residential living rooms and feature walls

A slat wall behind a sofa, fireplace, or television is one of the most popular interior design choices of the current decade. The FlexFit system turns that wall into a dynamic, programmable lighting feature that can be warm and ambient for evening relaxation, off entirely for daytime use, and completely invisible in both states. The glow that appears when a guest first sees the wall illuminate is exactly the reaction a well-designed living space is meant to produce.

Retail and boutique display walls

For retailers using slat wall panels as display backdrops — a common choice in clothing boutiques, cosmetics stores, and premium product retailers — the FlexFit system adds illumination that enhances product visibility and perceived quality while keeping the wall itself clean and uncluttered. The absence of visible hardware makes the lighting feel like part of the architecture rather than an add-on.

Hospitality: hotel lobbies, bars, and restaurants

Hospitality environments live or die by first impressions and atmosphere. A feature slat wall in a hotel lobby or behind a bar that glows with warm, even light from an invisible source creates exactly the kind of premium, considered ambiance that guests remember and photograph. The FlexFit system’s seamless finish meets the expectation of commercial design quality.

Home offices and media rooms

For home offices with slat wall accents and media rooms with slat wall TV surrounds, the FlexFit system handles both the lighting and the cable management in a single system — LED glow in the feature slats, TV cables hidden in the adjacent channels, all in the same invisible black profile.

Commercial offices and boardrooms

Corporate and commercial interior designers increasingly use slat wall panels in reception areas, breakout zones, and executive boardrooms. The FlexFit system delivers the same invisible-when-off, dramatic-when-on effect in commercial settings, with the 24V COB configuration providing sufficient output for accent-lighting applications in larger spaces.
