Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- LENS OPTIONS: Short | Tall
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH: Custom sizes available up to 48 in
- WIDTH: 0.96 in | 24.38 mm
- COLOR TEMP: 3000K | 4200K | 6000K |
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 12VDC
- POWER/Ft: 3 W/ft
- LEDs PER SECTION: 21 LED | 42 LED
- LIFETIME: 100,000 hours
Features:
- Custom sizes available up to 48 in

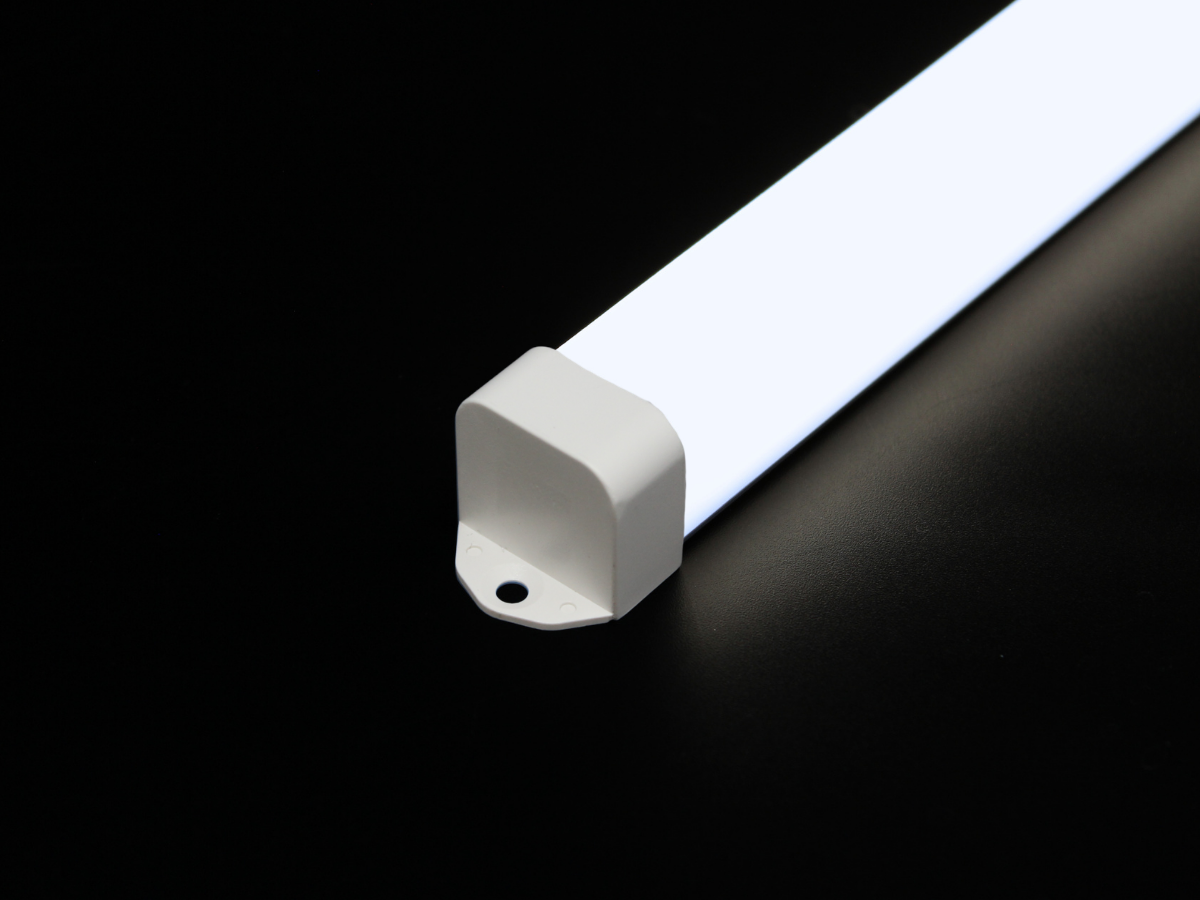

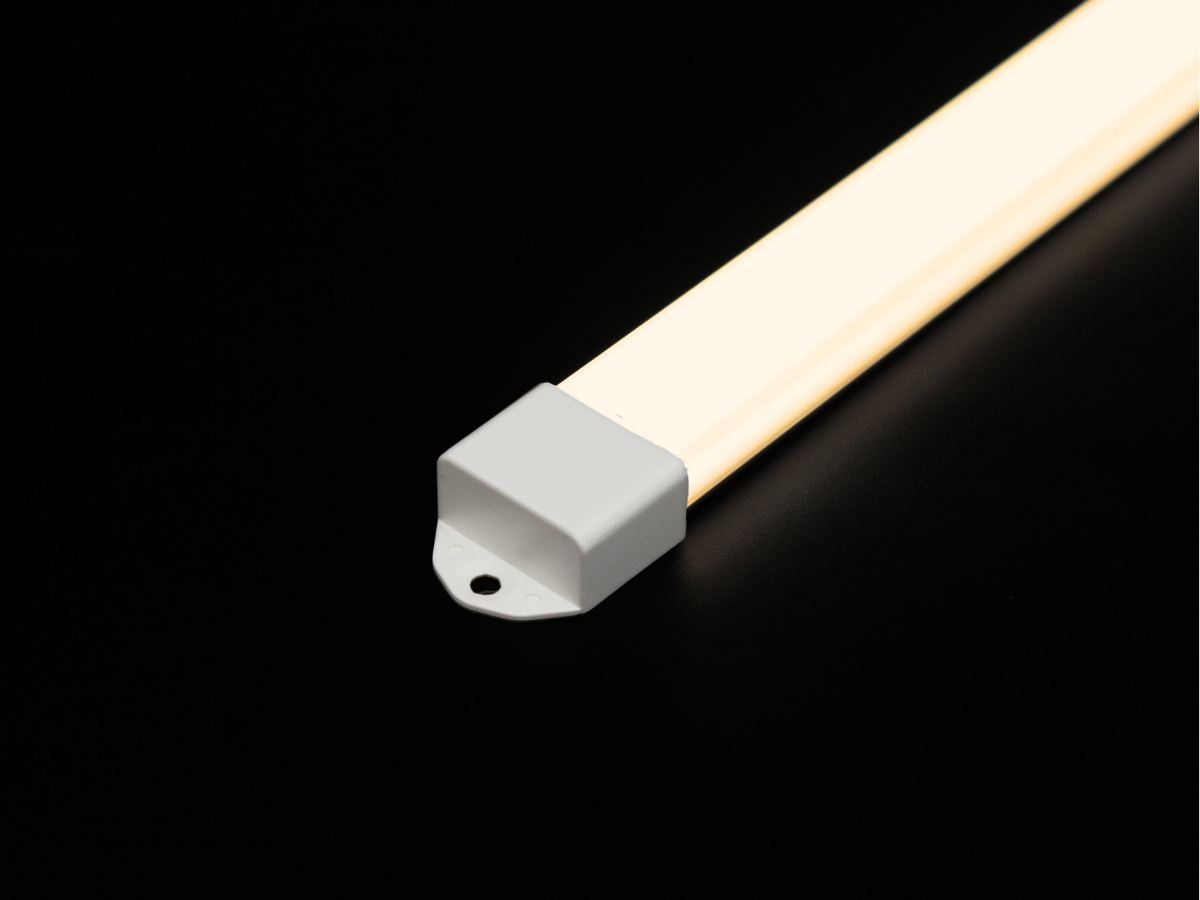

- Short or Tall Frosted Lens offered
- Multiple connection types allow for complete customization of system
- Great for Under Cabinet Lighting applications
Product Details:

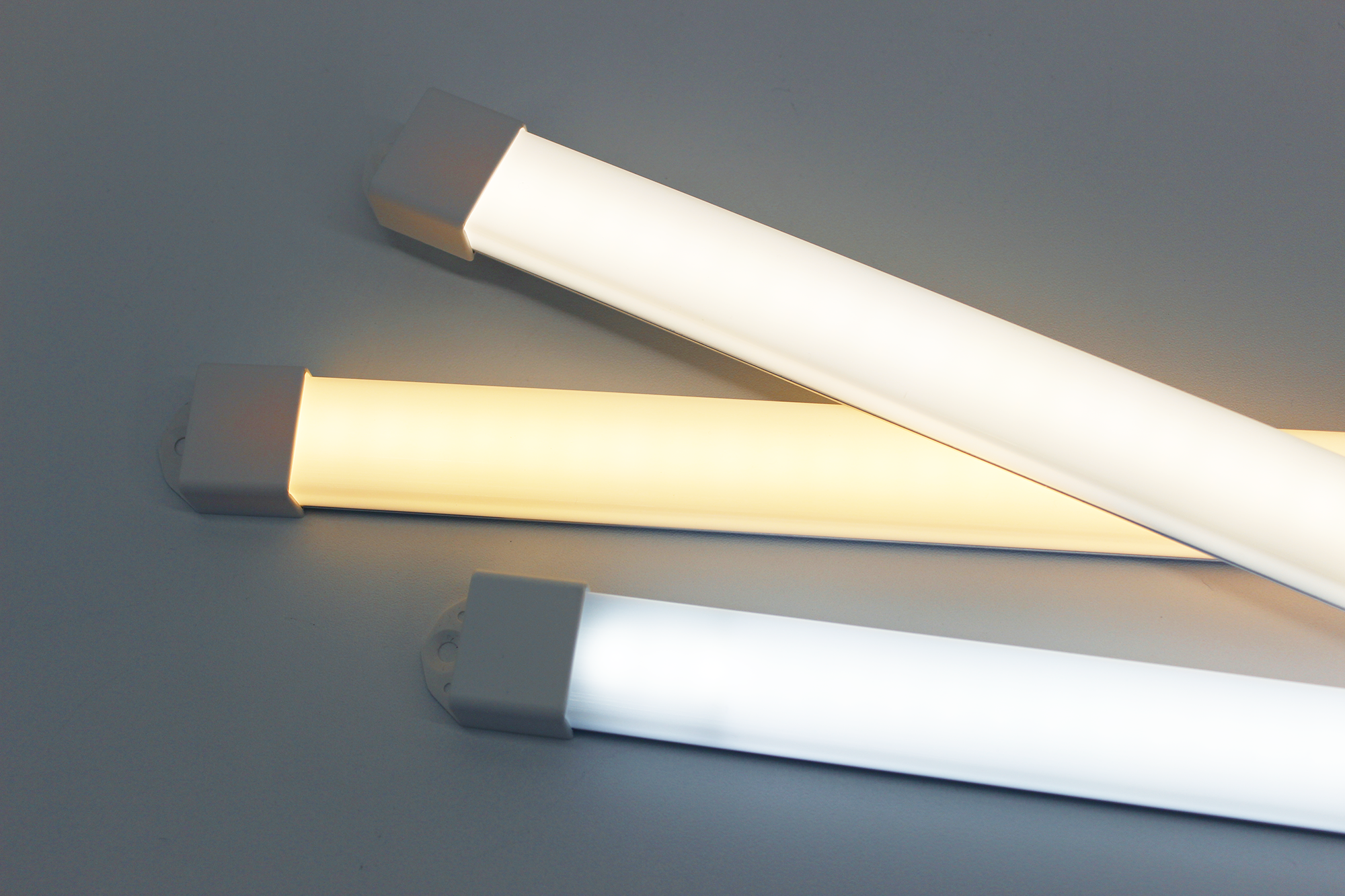

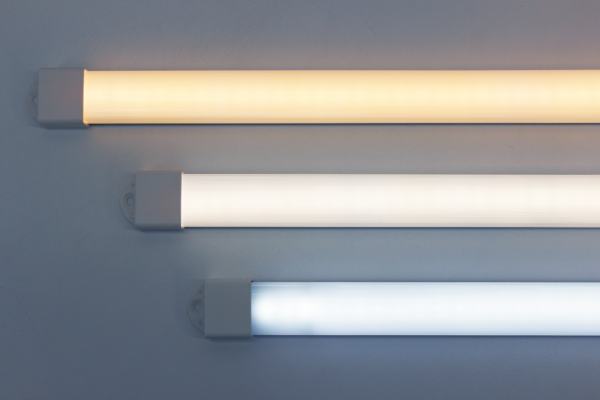

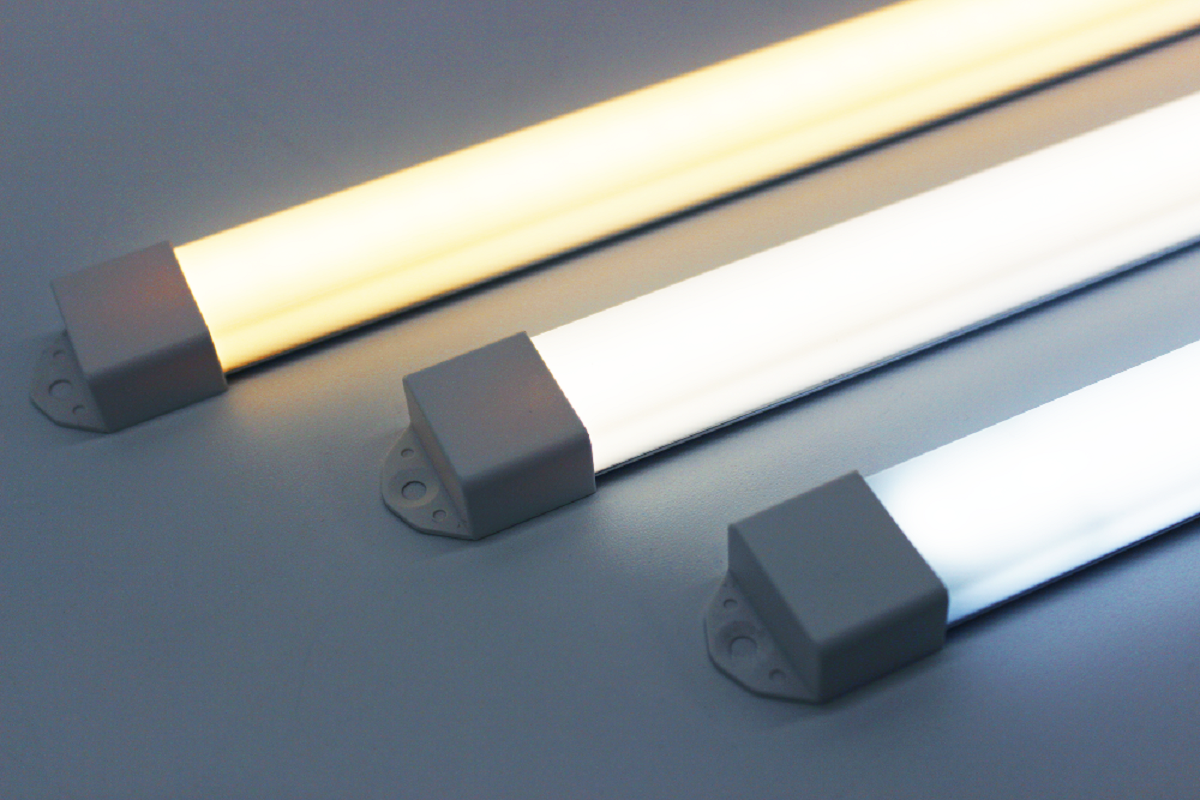

The Radiant Edge Custom LED lights are ideally suited for under the cabinet task lighting applications, kitchen lighting, decorative lighting, and reading lighting. Light panels can be mixed and matched to create a custom system. Pair with Inspired LED dimmable transformers or plug-in power supplies!
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 12VDC Ultra bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
