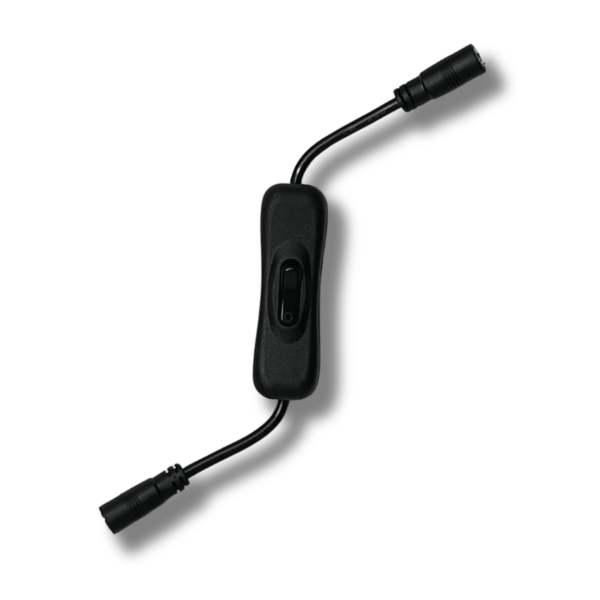

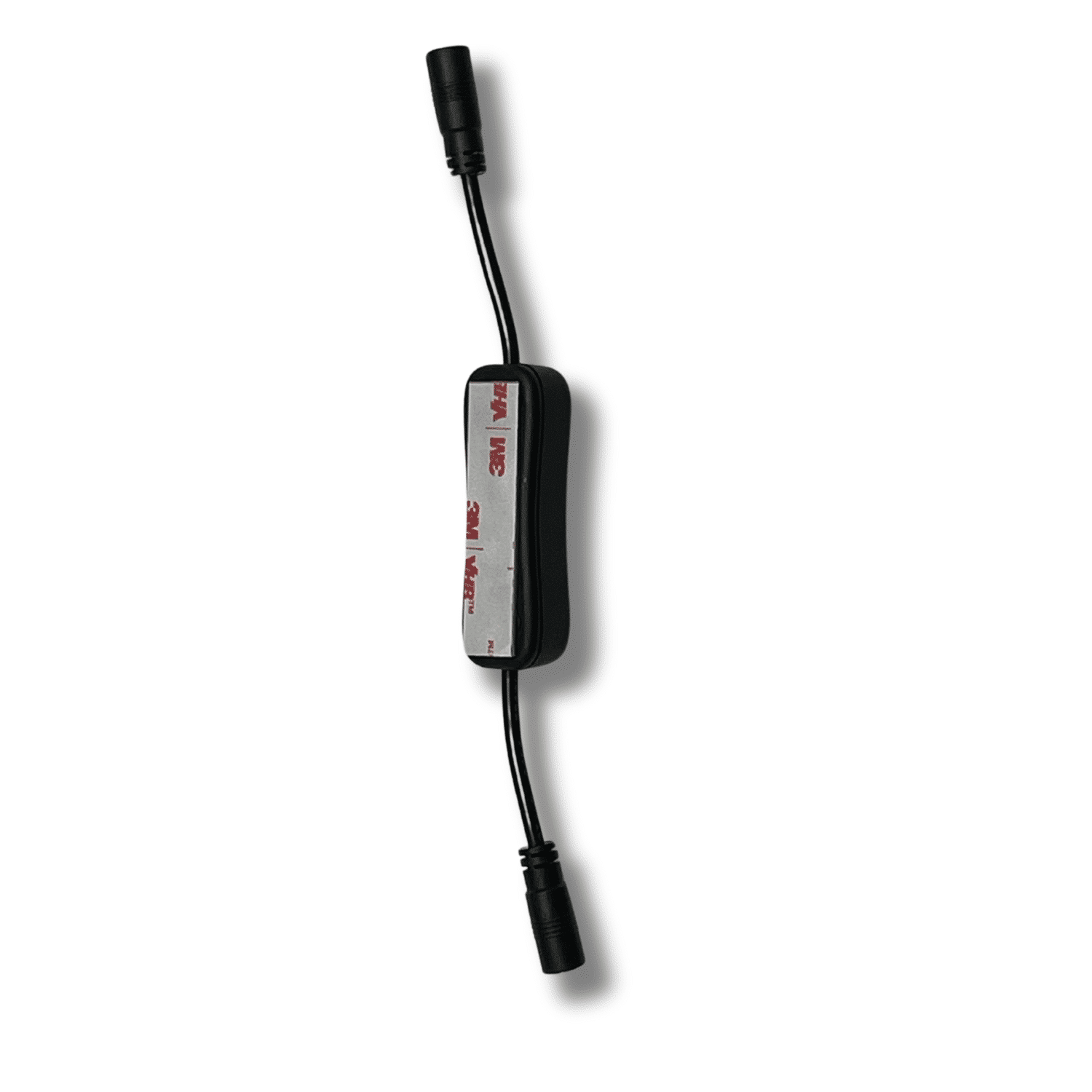

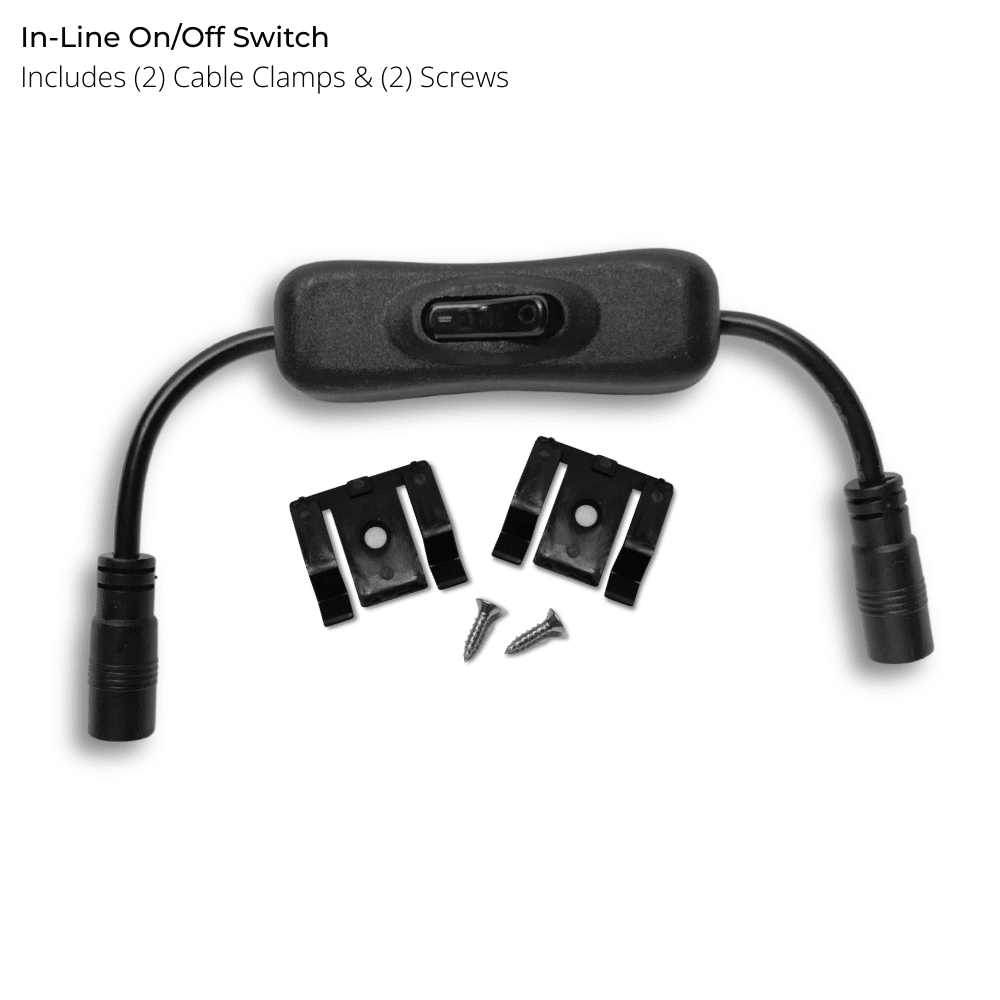

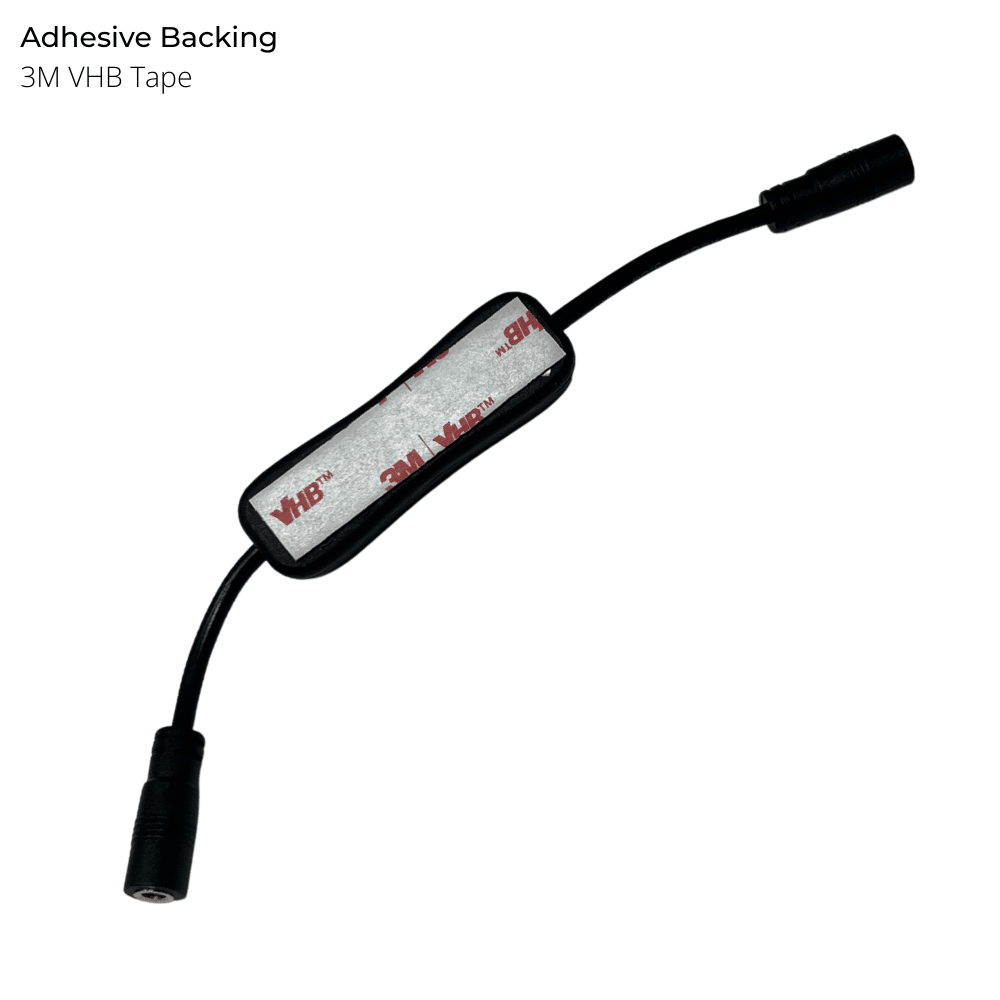

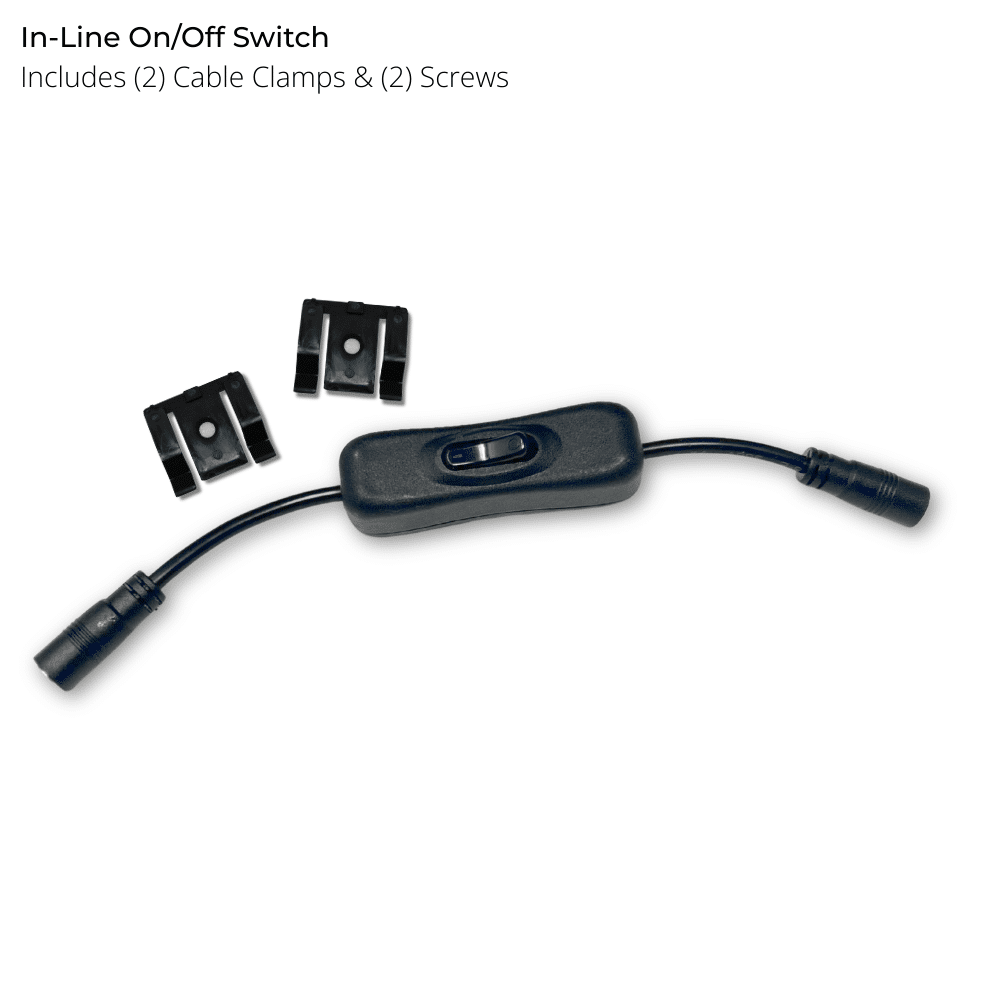

In-Line LED Switch, On/Off (12VDC or 24VDC)

$6.00

View Spec Sheet

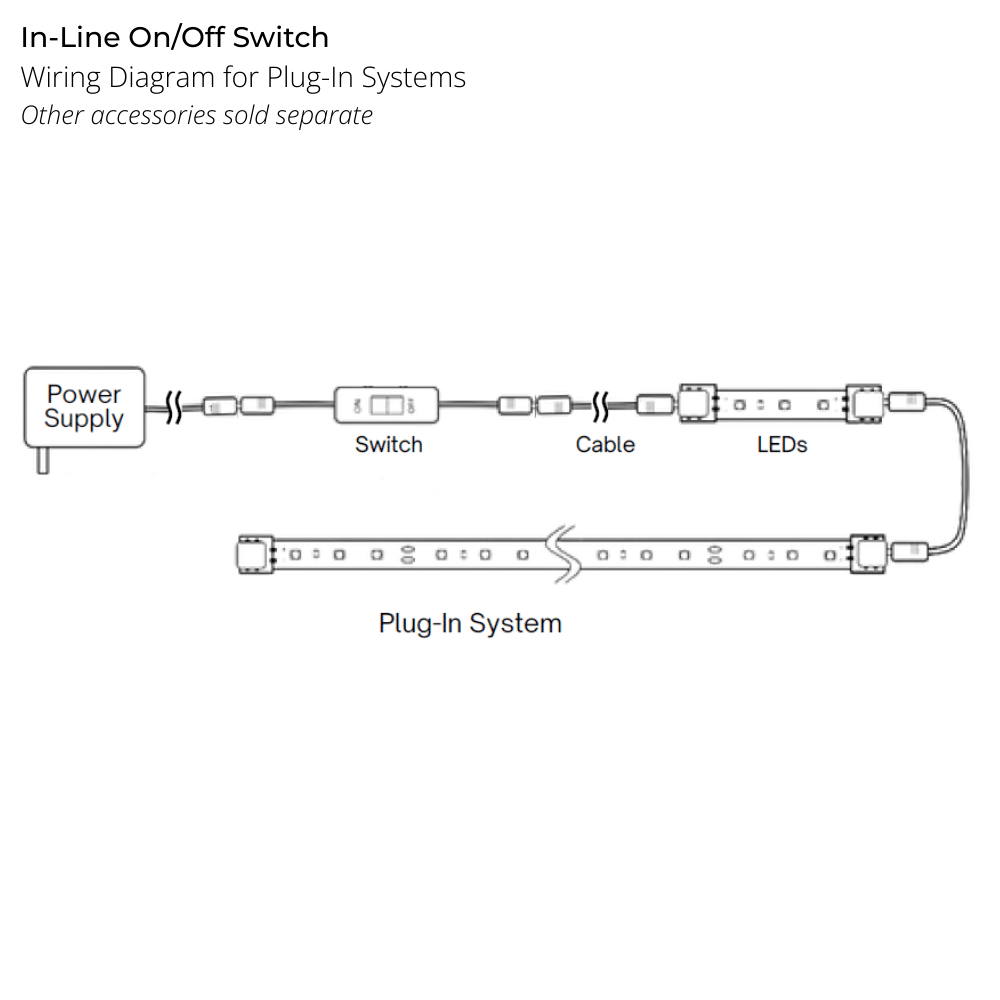

This in-line LED switch conveniently turns lights on and off with a simple switch. Simply plug your Inspired LED power supply into one side of your switch and plug an interconnect cable in between your switch and your LEDs.

Specifications:

  • Working Voltage: 12VDC – 24VDC in/out
  • Max Load: 4A
  • Quiescent Current: 0 mA
  • Input Connector: 3.5mm x 1.3mm

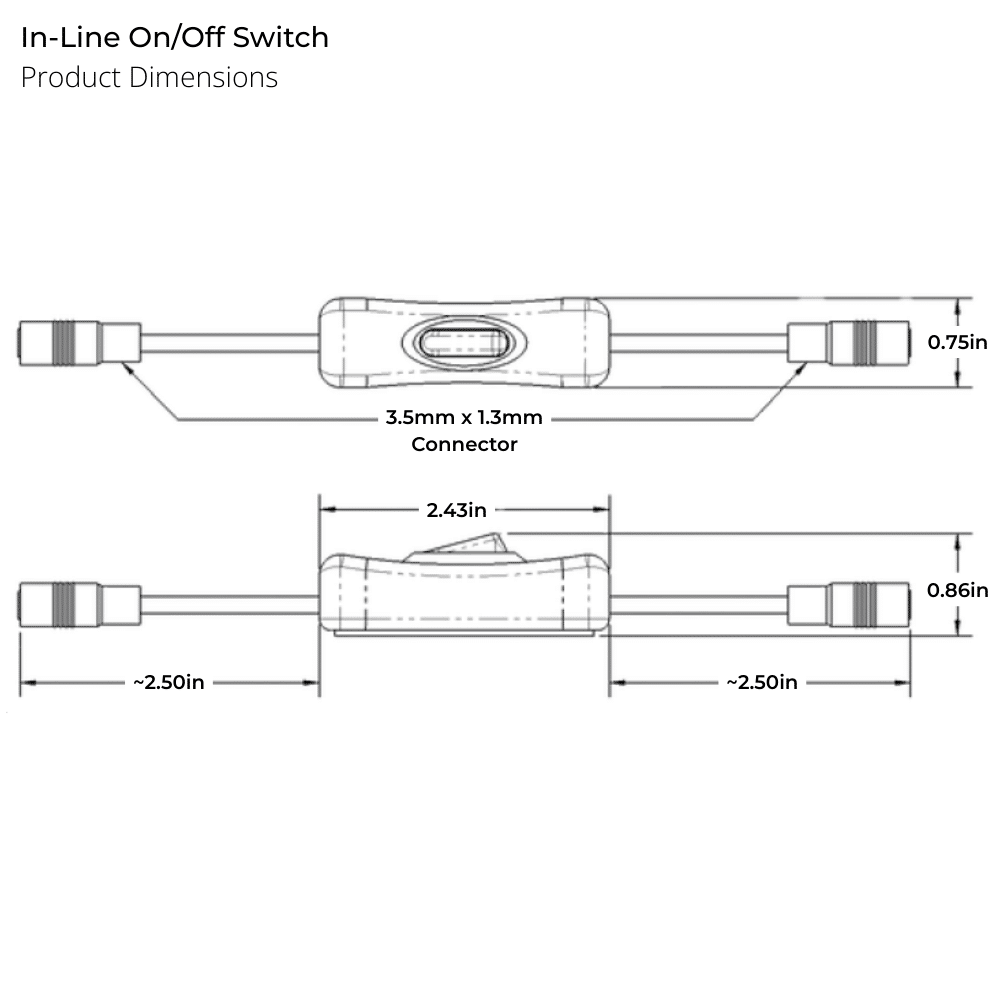

  • Dimensions: 7.43″ x 1.3″ x 0.86″
  • Net Weight: 17g
  • Required Accessories: Interconnect Cables or Plug-In Screw Terminals, purchased separately

SKU: 4775 Category: Tag:

Description

Instructional Videos

Compatible Products

View Spec Sheet

This in-line LED switch conveniently turns lights on and off with a simple switch.

Simply plug your Inspired LED power supply into one side of your switch and plug an interconnect cable in between your switch and your LEDs.

Specifications:

  • Working Voltage: 12VDC – 24VDC in/out
  • Max Load: 4A
  • Quiescent Current: 0 mA
  • Input Connector: 3.5mm x 1.3mm
  • Dimensions: 7.43″ x 1.3″ x 0.86″
  • Net Weight: 17g
  • Required Accessories: Interconnect Cables or Plug-In Screw Terminals, purchased separately

Additional information

Weight 0.03125 lbs
Dimensions 2.6 × .70 × .50 in
Product Color

Black
