Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- PBC COLOR: White
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH:

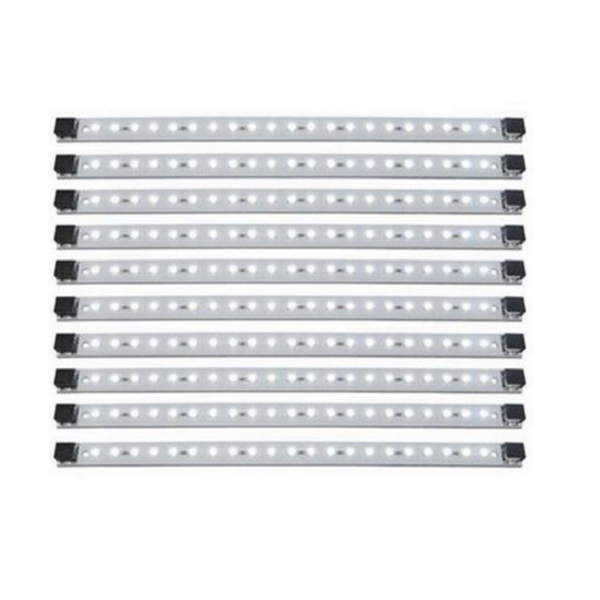

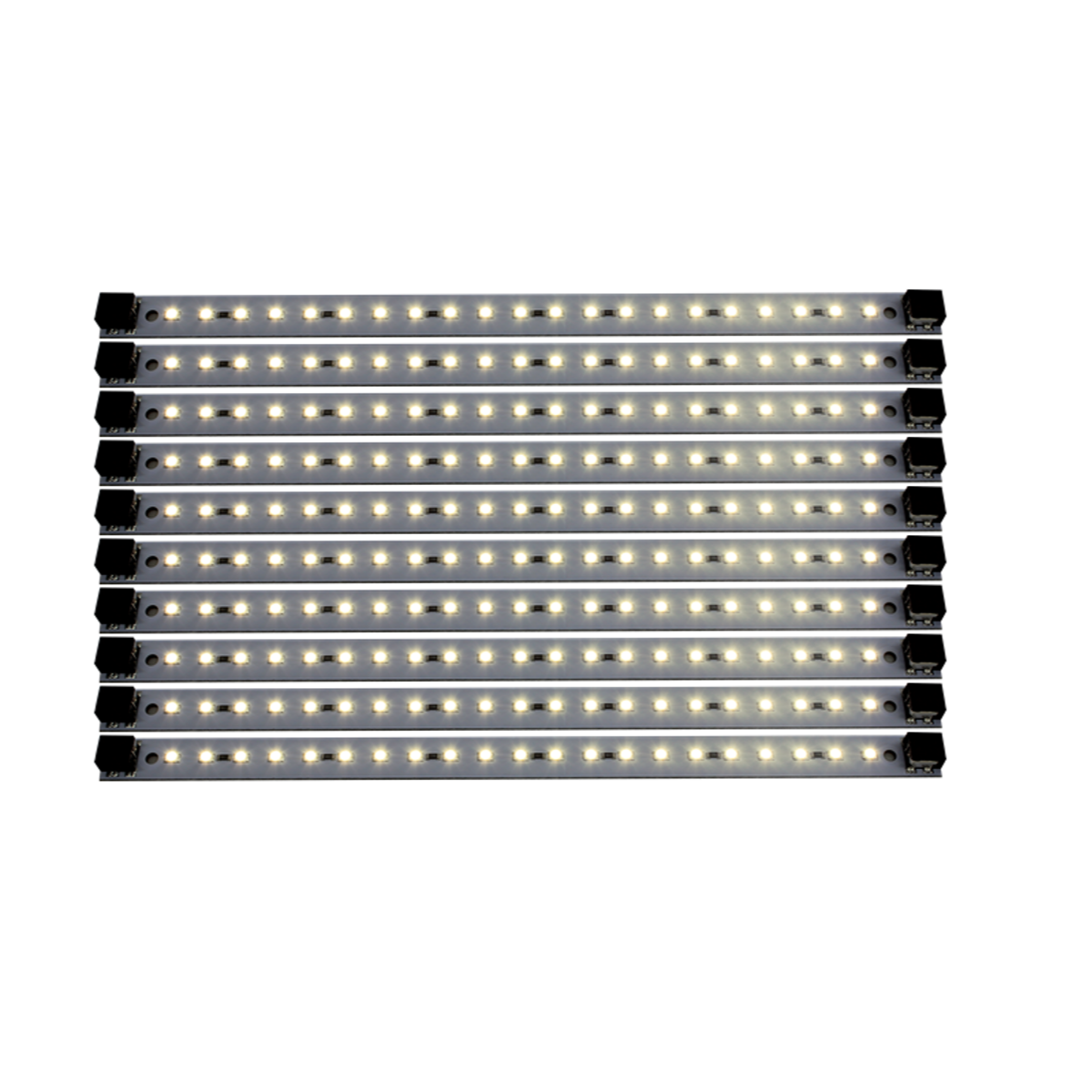

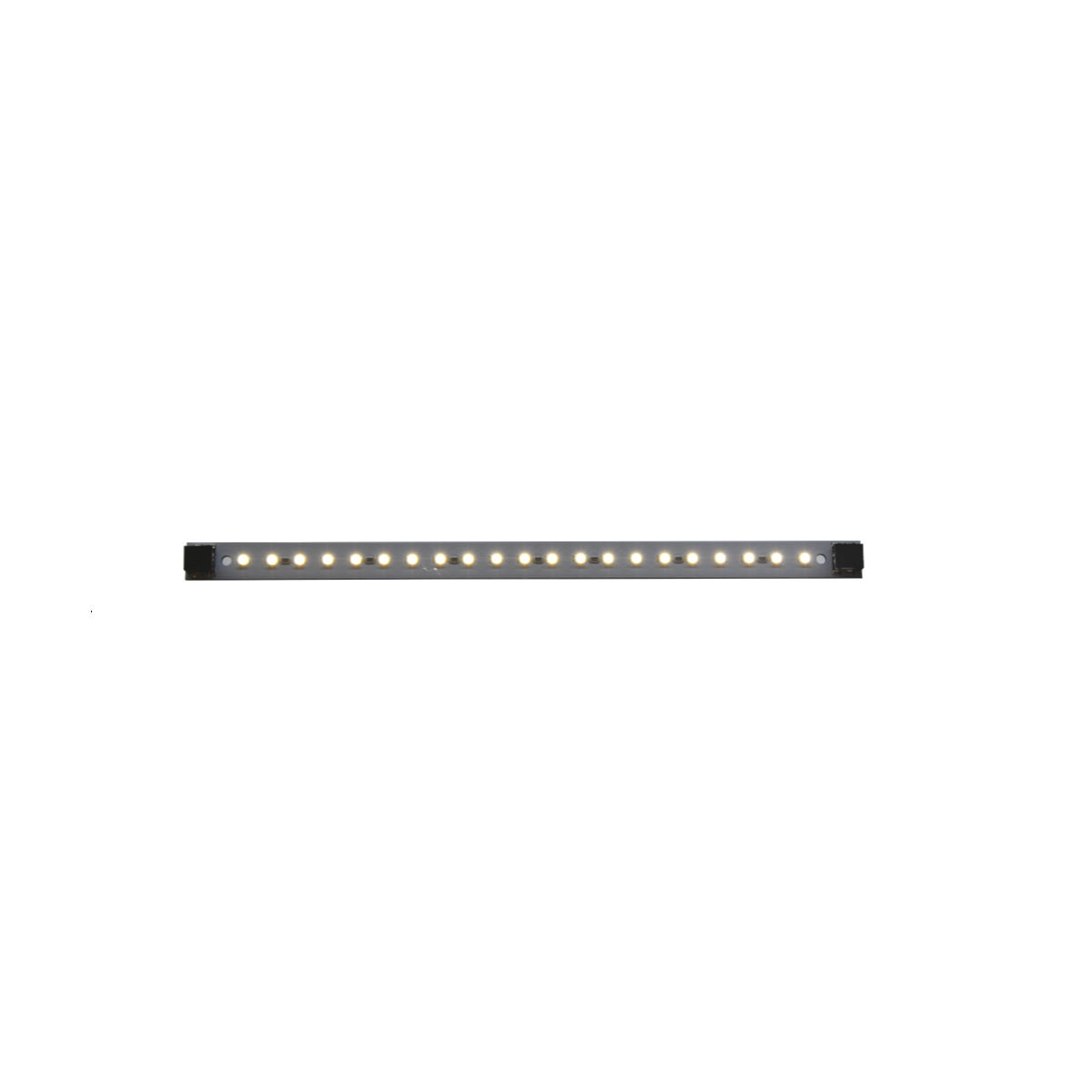

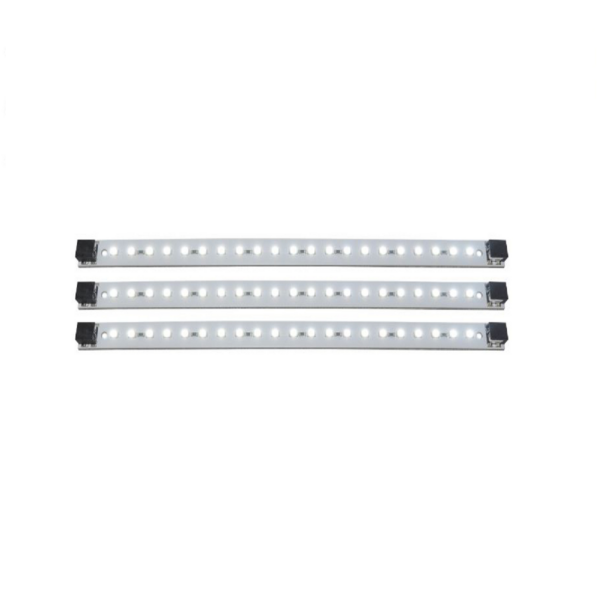

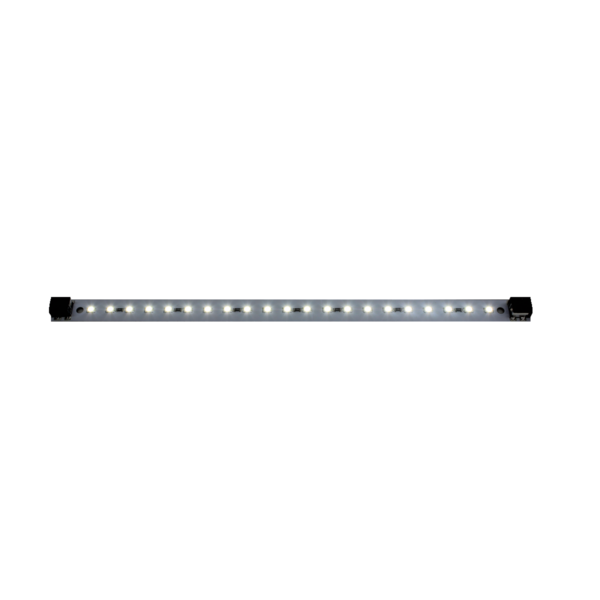

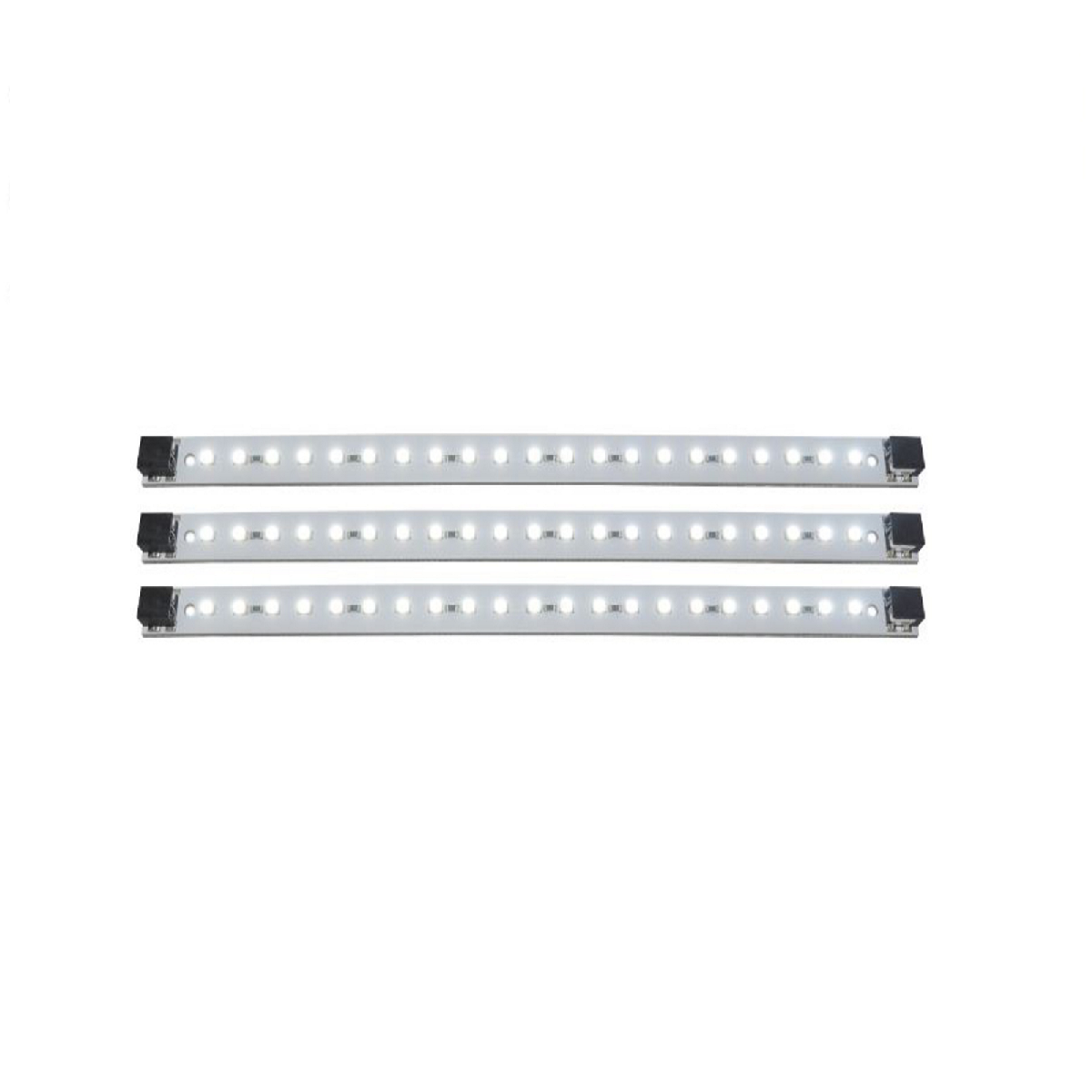

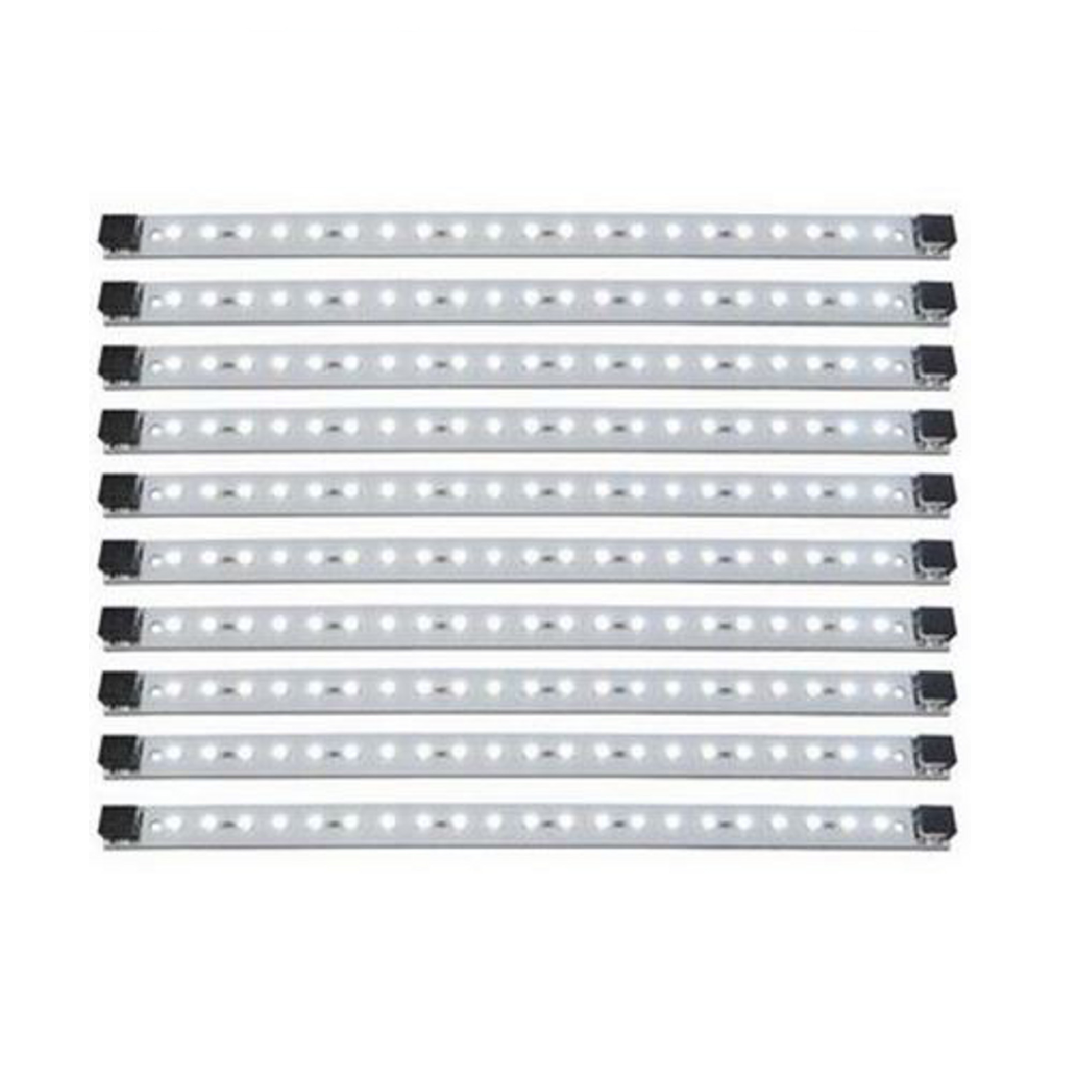

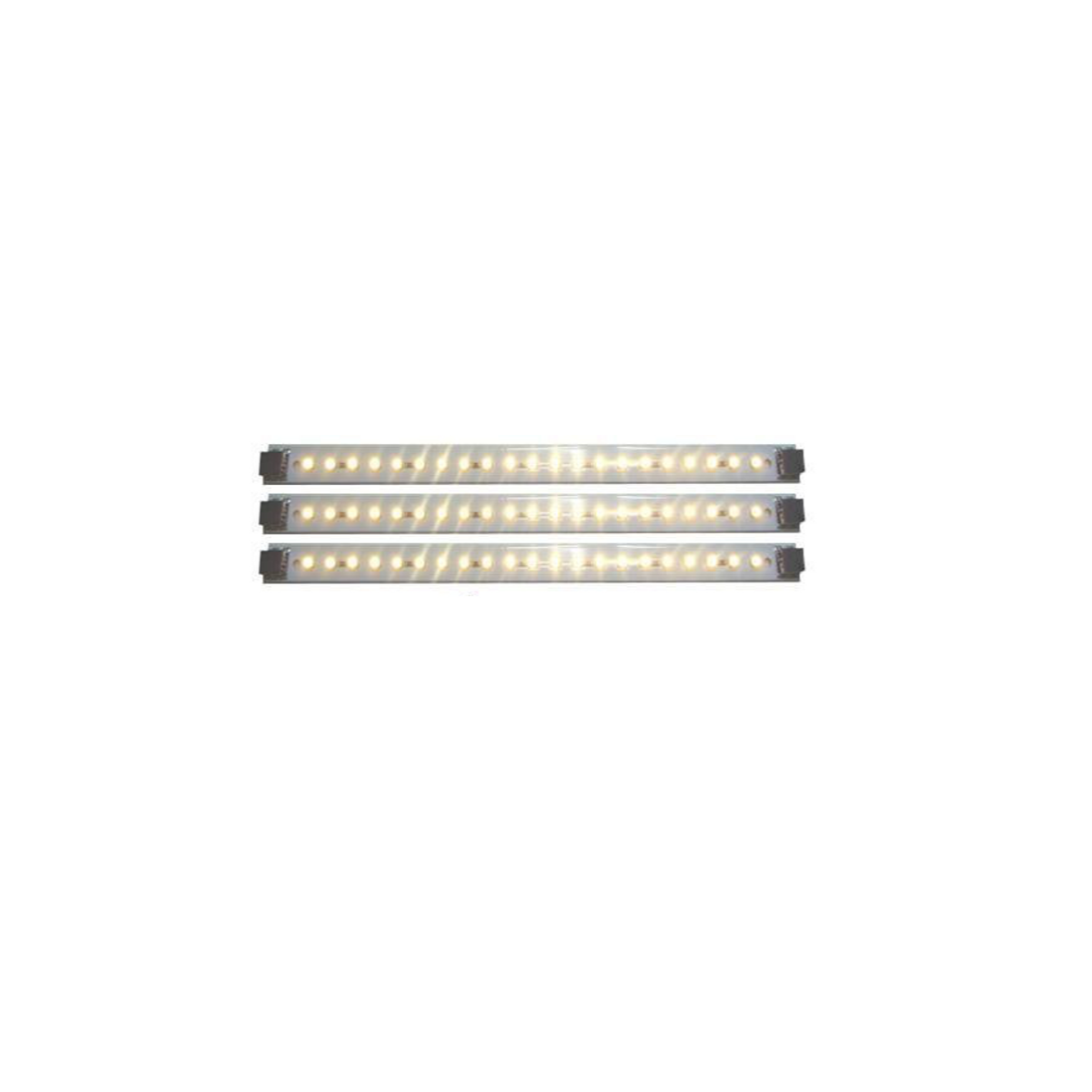

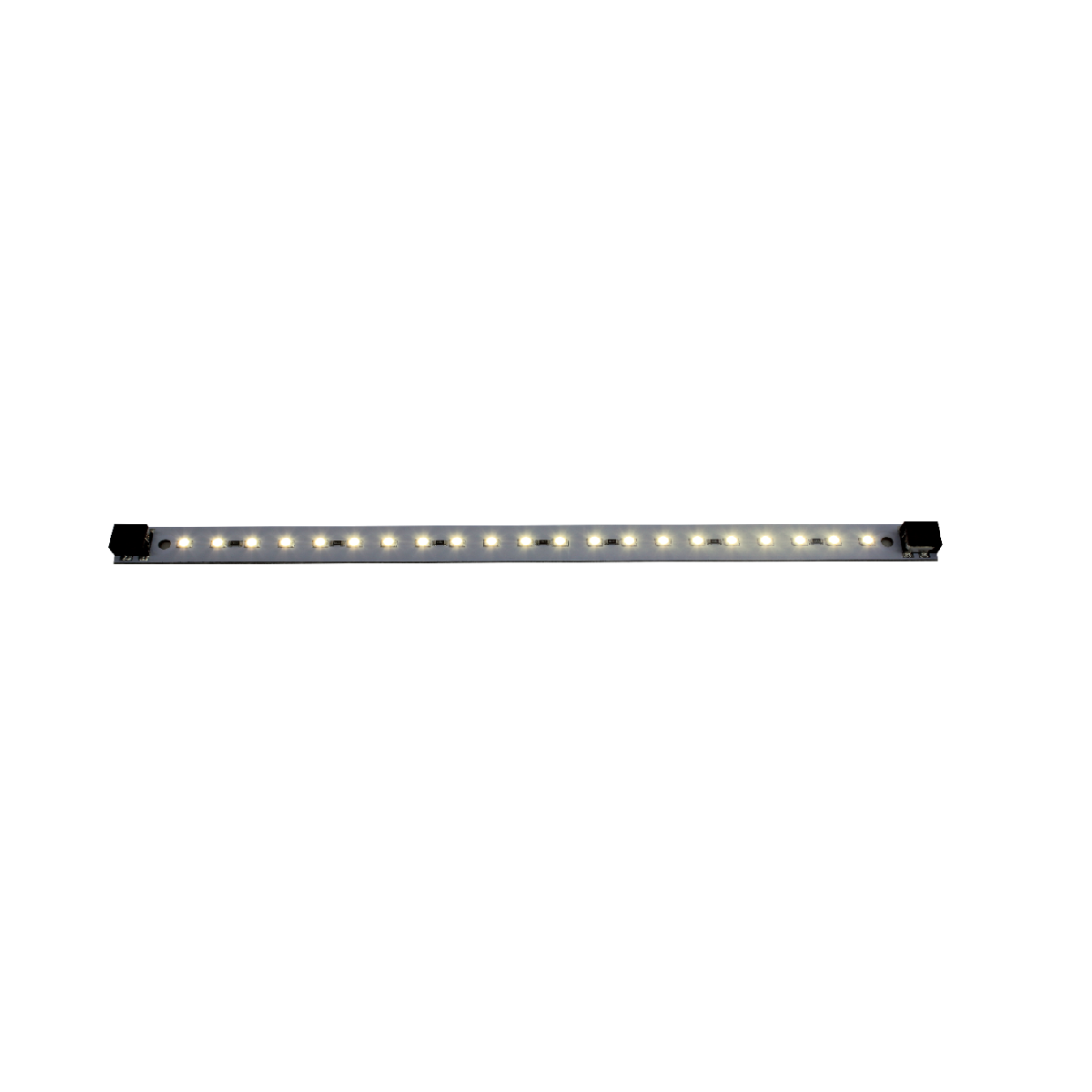

- Pro Series 21 LED Panel – 8.75 in
- Pro Series 42 LED Panel – 16.5 in
- WIDTH: 0.5 in | 12.7 mm
- COLOR TEMP: 3000K | 4200K | 6000K |
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 12VDC
- POWER/Ft:
- 1.5 W/21LED Panel
- 3 W/42 LED Panel
- LEDs PER SECTION: 21 LED | 42 LED
- LIFETIME: 100,000 hours
Features:
- Simple Plug & Play installation – allows for low cost modular design
- Low energy consumption – rated to last up to 100,000 hours
- Great for Under Cabinet Lighting applications
Product Details:

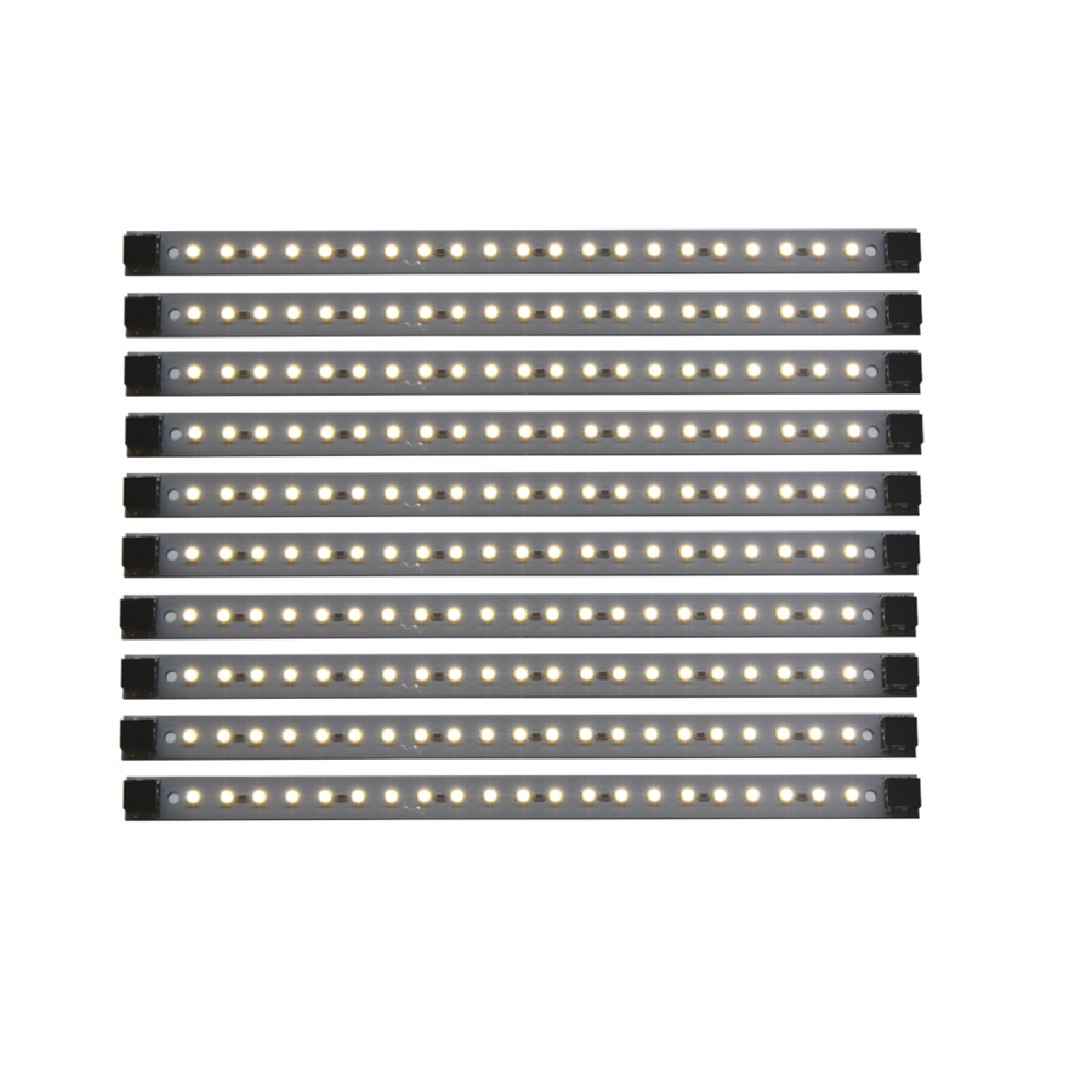

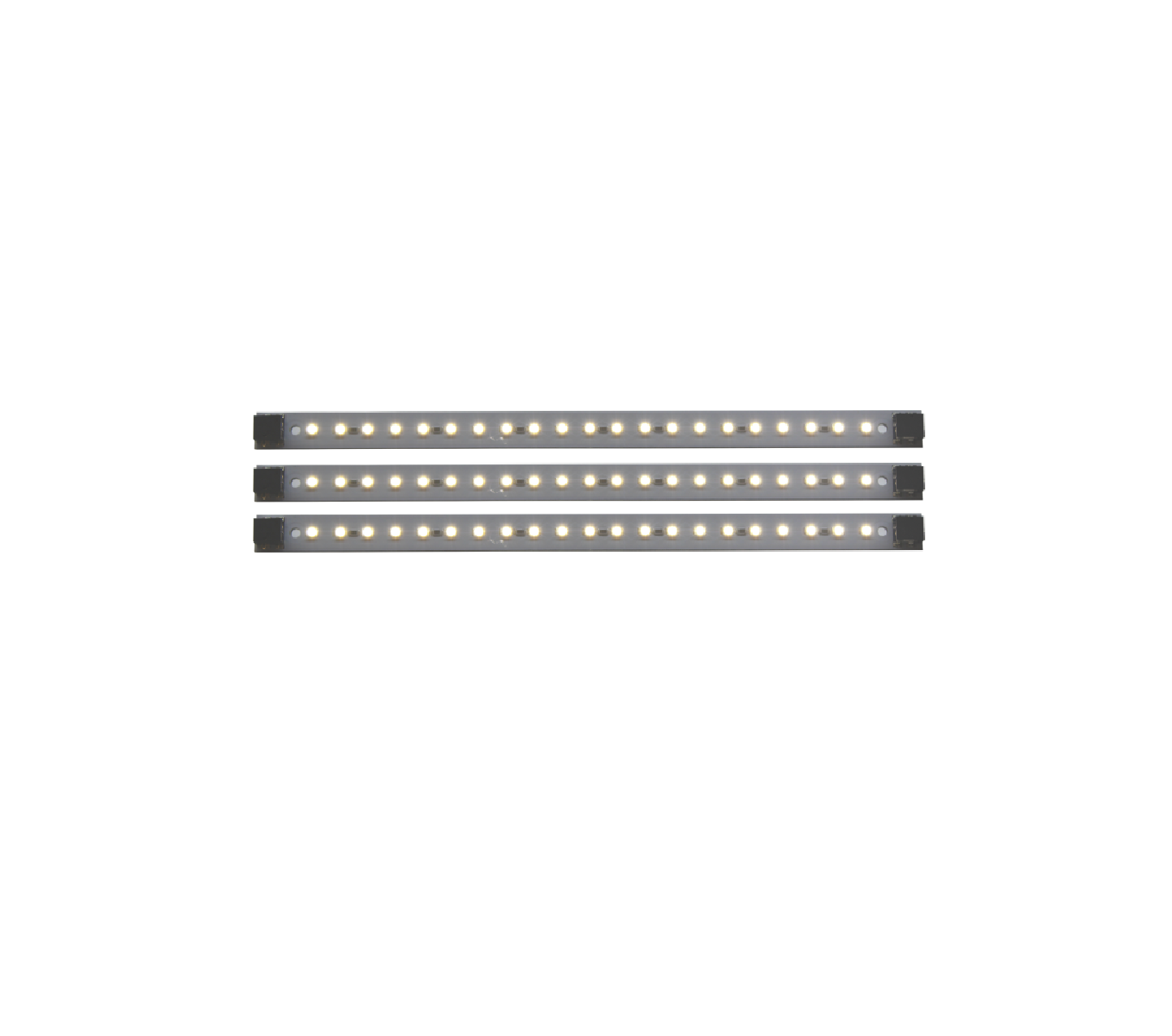

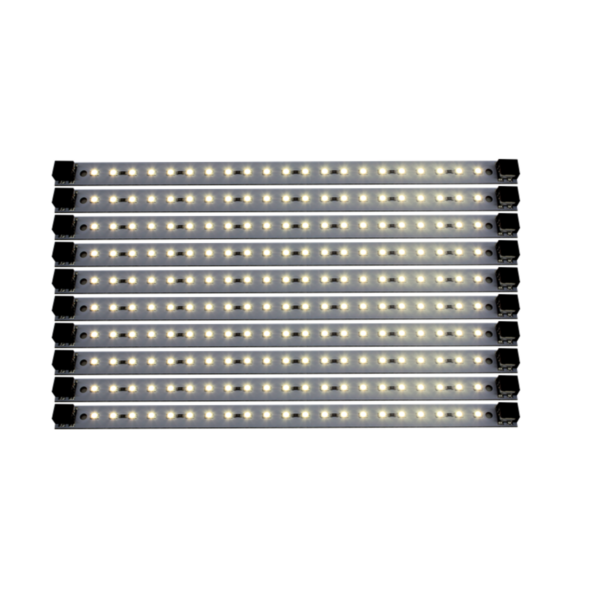

Inspired LED’s Pro Series Rigid LED Panels are an ideal low-voltage LED lighting solution for any application, from under cabinet task lights in the kitchen, to accent lighting on shelves or display cases. These rigid, lowprofile panels are easily combined with Inspired LED accessories to create the perfect system for any home or business!
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 12VDC Ultra bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
