Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- PBC COLOR: White
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH:
- Angle Adjust 21 LED Panel – 9 in
- Angle Adjust 42 LED Panel – 17 in
- DIAMETER: 0.625 in | 15.875 mm

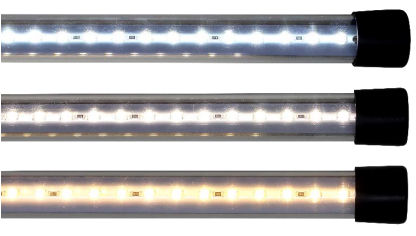

- COLOR TEMP: 3000K | 4200K | 6000K |
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 12VDC
- POWER/Ft:
- 1.5 W/21LED Panel
- 3 W/42 LED Panel
- LEDs PER SECTION: 21 LED | 42 LED
- LIFETIME: 100,000 hours
Features:
- Simple Plug & Play installation – allows for low cost modular design
- Low energy consumption – rated to last up to 100,000 hours
- Great for workbench lighting!
Product Details:

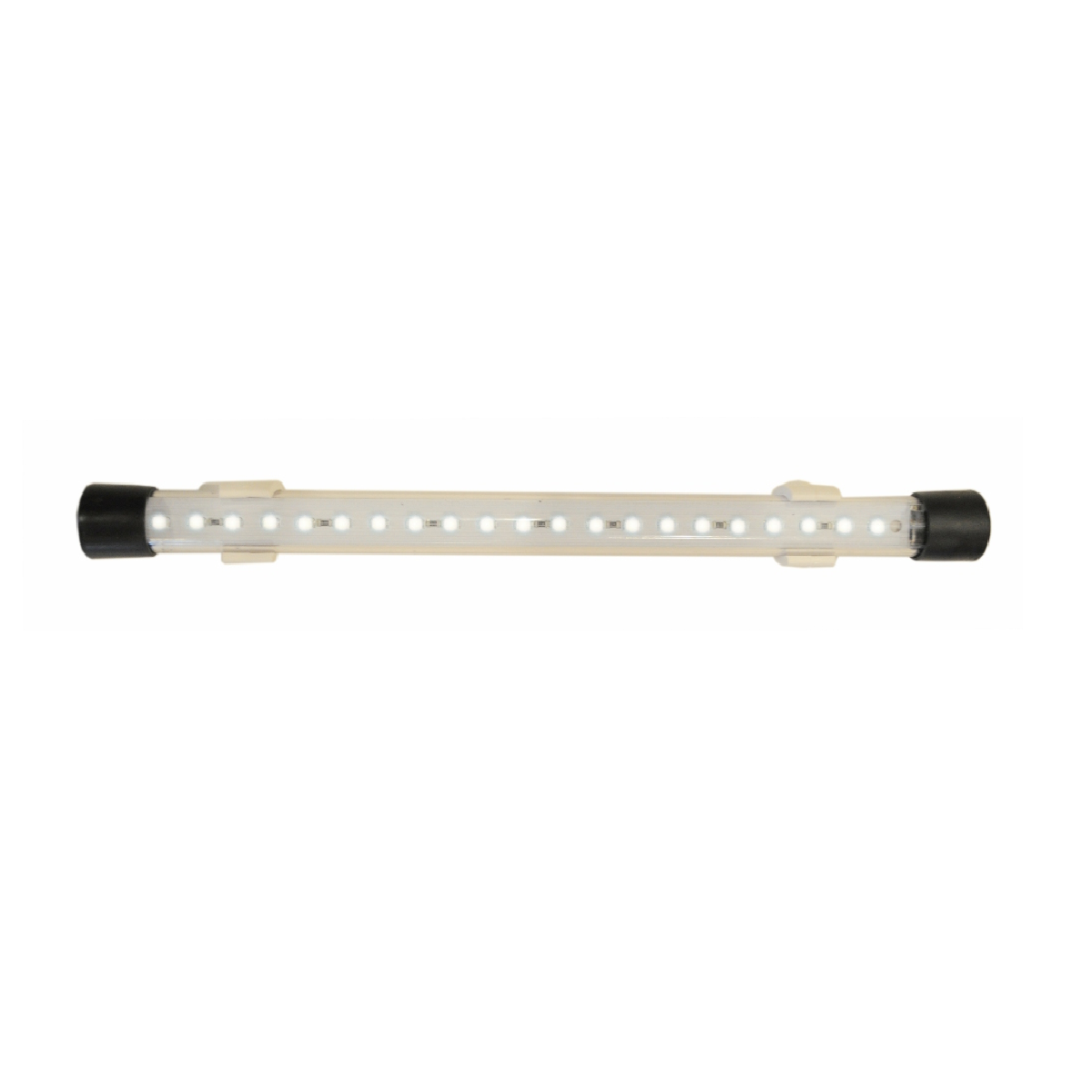

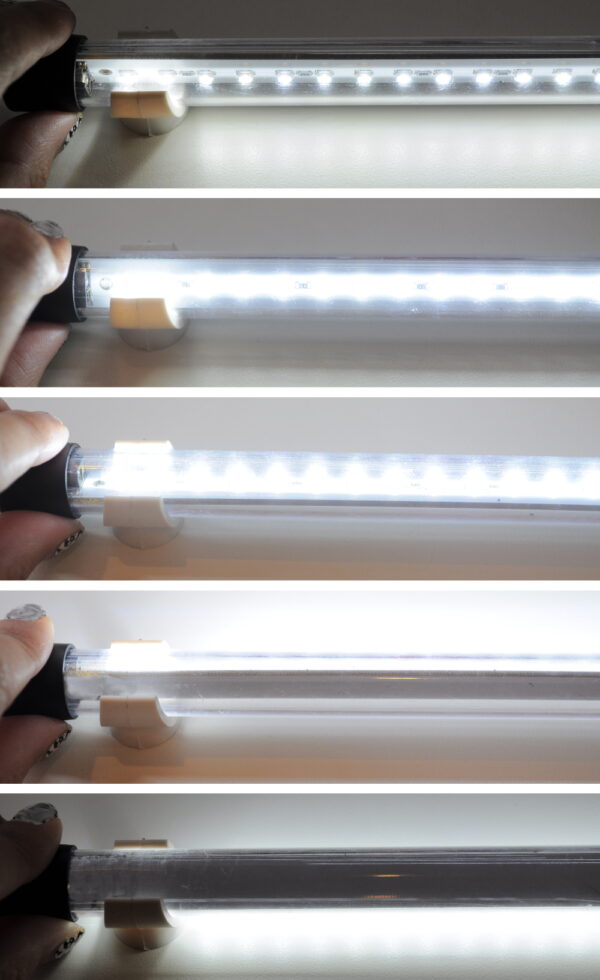

Inspired LED’s Angle Adjust Tubes are the perfect low-voltage lighting solution for highlighting features such as signs, shelves, display cases, and more. Mount almost anywhere using a variety ofsnap-in clips, and easily direct light wherever you need it most!
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 12VDC Ultra bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
