Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- LENS OPTIONS: Frosted | Clear
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH: 10 in | 18 in
- WIDTH: 0.87 in | 22.1 mm
- COLOR TEMP: 3000K | 4200K | 6000K |
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 12VDC
- POWER/Ft:
- 1.5 W/ 10 in panel
- 3 W/ 18 in panel
- LEDs PER SECTION: 21 LED | 42 LED
- LIFETIME: 100,000 hours
Features:

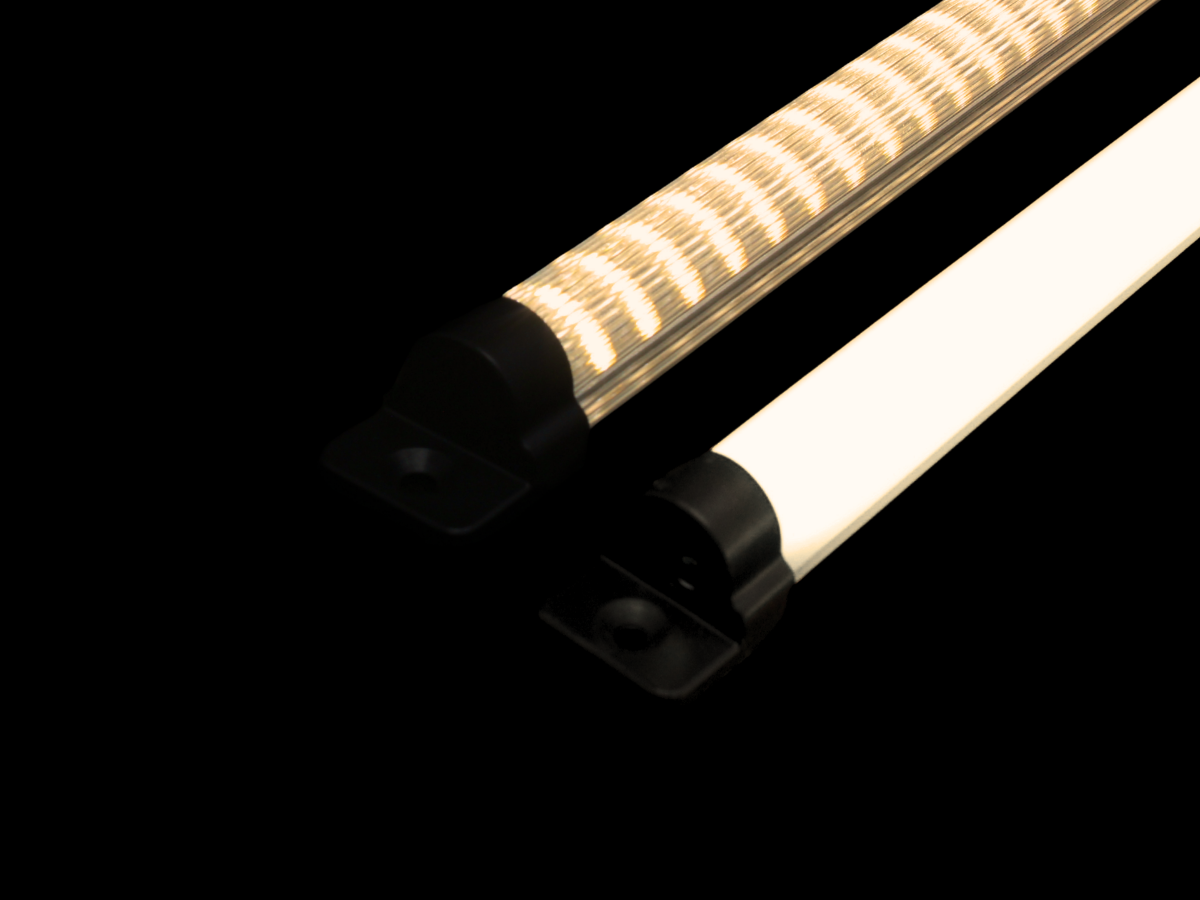

- 10 in or 18 in sizes available both in clear or frosted lens
- Simple Plug & Play installation – allows for low cost modular design
- Low energy consumption – rated to last up to 100,000 hours
- Great for Under Cabinet Lighting applications
Product Details:
Inspired LED’s Designer Series Panels are an ideal low-voltage LED lighting solution for any application, from under cabinet task lights in the kitchen, to accent lighting on shelves or display cases. These low-profile panels utilize a frosted lens to create a sleek, diffused beam of light, and are easily combined with Inspired LED accessories to create the perfect lighting system for your home or business.
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 12VDC Ultra bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
