Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- PBC COLOR: White
- LIGHT EFFICIENCY: 98.64 lm/W
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH: 39.4 ft | 12 Meters
- WIDTH: 0.31″ | 8mm
- COLOR TEMP: 2500K | 3000K | 4100K
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 24VDC
- POWER/Ft: 5.5 W/ft
- CUT INCREMENTS: Every 2″
- LEDs PER SECTION: 6 LEDs
- LEDs PER FT: 36 LEDs
- LED CHIPS: 1,440 LEDs per reel
- LIFETIME: 100,000 hours
Features:
- 100Ω resistors allow for extremely bright LED runs!
- Offered in Amber White 2500K | Warm White 3000K | Pure White 4100K
- Great task lighting where bright lighting is needed.
Product Details:

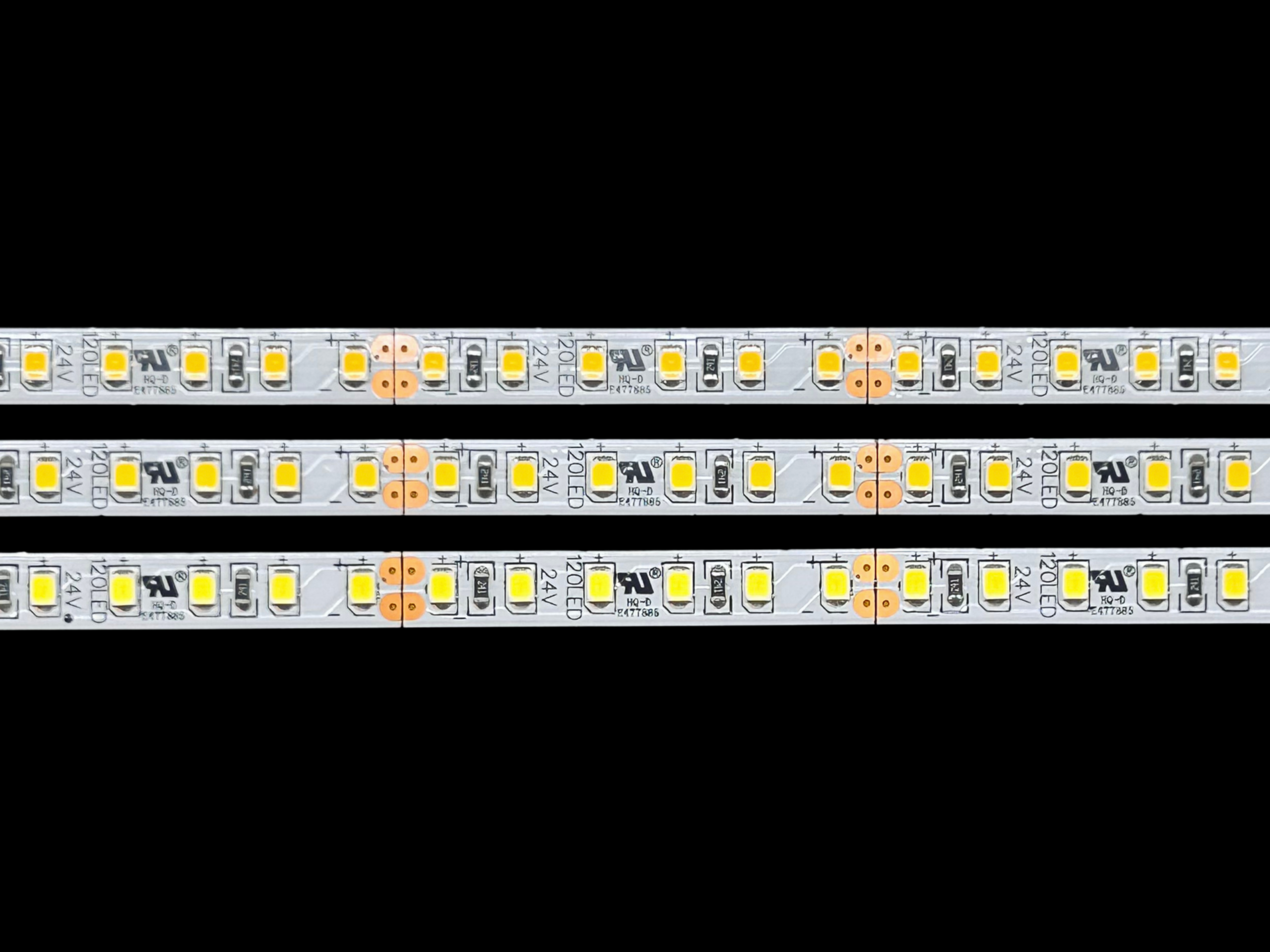

The 24VDC Mega Bright 100Ω Flexible LED Reel is perfect for task lighting situations that demand a high lumen output. Offered in custom lengths or 39.4 ft reels, these versatile strips can be easily cut to size and fitted with solderless connectors for straightforward DIY installation. Energy-efficient, durable, and compatible with dimmable systems, Inspired LED flex strips are an excellent choice to add the perfect finishing touches to any project!
What does Ω mean?
Ω = Ohm – this stands for the resistor value on the LED strip. A higher number means a dimmer light – a lower number means a brighter light.
- CB300Ω – 300ohm LED strip – least bright
- MB240Ω – 240ohm LED strip – medium bright
- MB100Ω – 100ohm LED strip – brightest
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 24VDC Mega bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
