Description
- LED TYPE: SMD 2216 LEDs
- BEAM ANGLE: 120°
- PBC COLOR: White
- LIGHT EFFICIENCY: 104.21 lm/W
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH: 39.4 ft | 12 Meters
- WIDTH: 0.39″ | 10 mm
- COLOR TEMP: 2700K | 3500K | 4200K
- CERTIFICATIONS: CSA Listed 265216 | RoHS Compliant | UL Recognized
- WARRANTY: 5 years
- INPUT VOLTAGE: 24VDC
- POWER/Ft: 3.75 W/ft
- CUT INCREMENTS: Every 0.97″
- LEDs PER SECTION: 6 LEDs
- LEDs PER FT: 72 LEDs/ft
- LED CHIPS: 2,880 LEDs per reel
- LIFETIME: 50,000 hours
Features:
- Mid-Range Efficiency deliver powerful uniform lighting
- 72 LEDs/ft offer great solution for fixture or soffit lighting
Product Details:

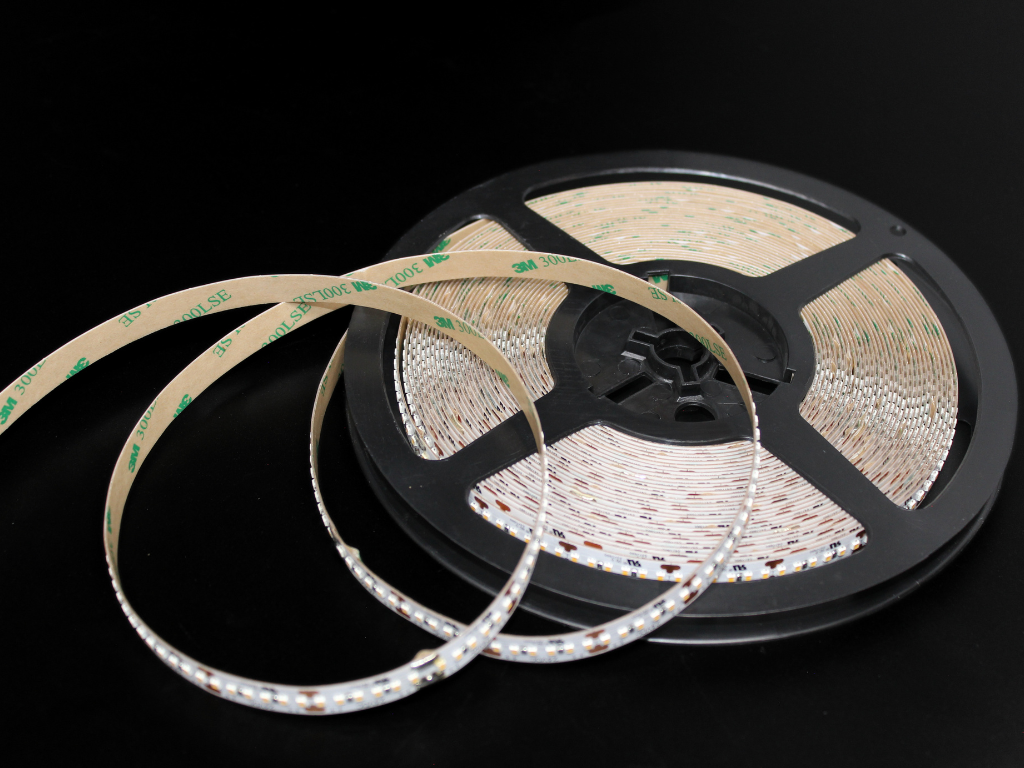

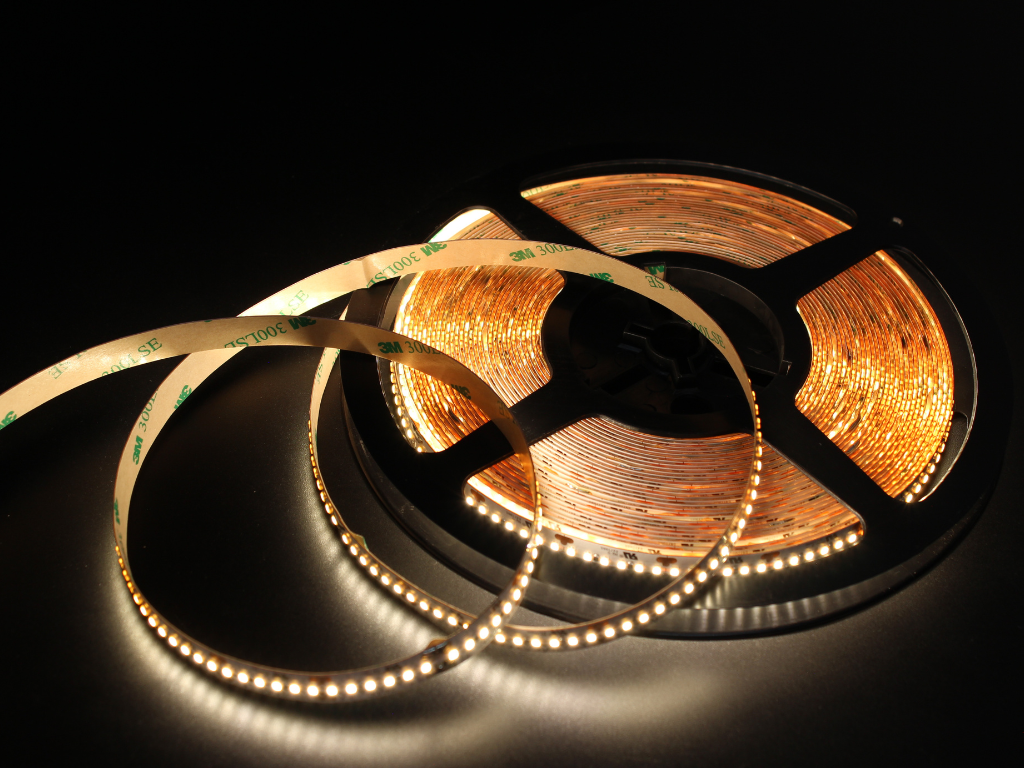

Inspired LED’s 24VDC Centra Bright Flexible LED Reel’s mid-range efficiency deliver powerful, uniform illumination, with a density of 72 LEDs/ft. Emitting approximately 370 lm/ft , this strip provides balanced output within out 24V product line, making it an ideal solution for fixture lighting and soffit applications. Designed for seamless, illumination, the tightly spaced LEDs ensure optimal light diffusion. Engineered for versatility, the Centra Bright strip is compatible with 4-Screw 10mm Connectors or can be configured with soldered cable leads for secure, customized installations.
What does Ω mean?
Ω = Ohm – this stands for the resistor value on the LED strip. A higher number means a dimmer light – a lower number means a brighter light.
- CB300Ω – 300ohm LED strip – least bright
- MB240Ω – 240ohm LED strip – medium bright
- MB100Ω – 100ohm LED strip – brightest
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – connectors are not included – call us at 480-941-4286 for connector options or email us at orders@inspiredled.com
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
