Description
- LED TYPE: SMD 2835 Diodes
- BEAM ANGLE: 120°
- PBC COLOR: White
- LIGHT EFFICIENCY: 97.85 lm/W
- WATERPROOF RATING: IP20 Indoor Use Only
- LENGTH: 39.4 ft | 12 Meters
- WIDTH: 0.31″ | 8mm
- COLOR TEMP: 3000K | 4100K | 6500K
- CERTIFICATIONS: CSA C22.2 No. 250.0-08/ANSI/ UL Standard 1598,8750
- WARRANTY: 5 Years
- INPUT VOLTAGE: 24VDC
- POWER/Ft: 2.4 W/ft
- CUT INCREMENTS: Every 2″
- LEDs PER SECTION: 6 LEDs
- LEDs PER FT: 36 LEDs
- LED CHIPS: 1,440 LEDs per reel
- LIFETIME: 100,000 hours
Features:
- 240Ω resistors allow for extremely long LED runs – run up to 25 ft powered from one side!
- Minimal heat production, no IR or UV output
- Great for extended length accent lighting!
Product Details:

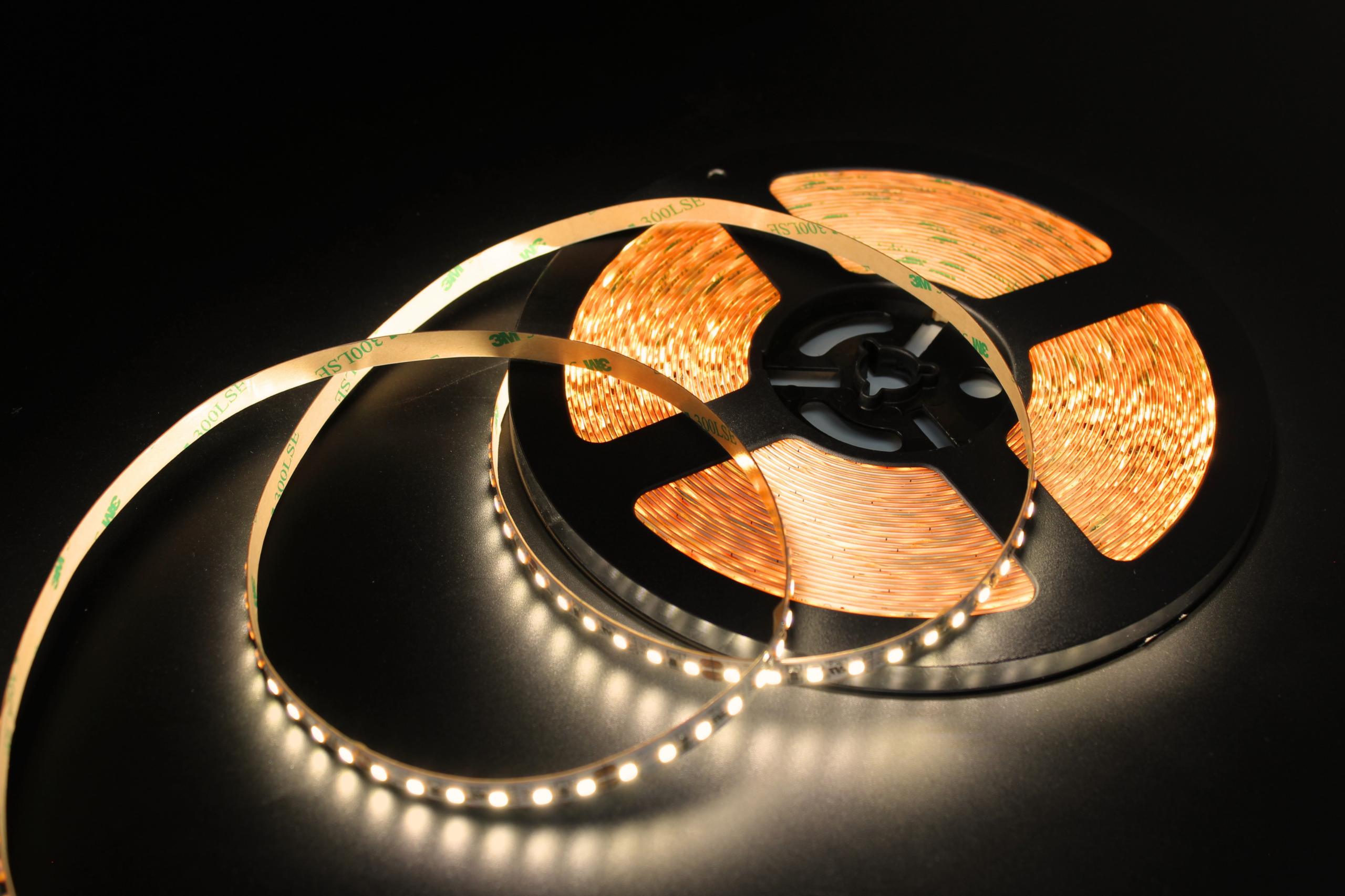

The 24VDC Mega Bright 240Ω Flexible LED Reel is ideal for those applications requiring extra-long runs of indirect light. Available in custom lengths or 39 ft reels, these unique strips can be cut to length and terminated with solderless connectors for easy DIY installation. Energy efficient, long lasting, and dimmable with compatible systems, Inspired LED flex strips are the perfect way to put the finishing touches on any project!
What does Ω mean?
Ω = Ohm – this stands for the resistor value on the LED strip. A higher number means a dimmer light – a lower number means a brighter light.
- CB300Ω – 300ohm LED strip – least bright
- MB240Ω – 240ohm LED strip – medium bright
- MB100Ω – 100ohm LED strip – brightest
Can these be dimmed from a wall switch?
YES – with a compatible dimmable driver and dimmer switch – See compatible dimmers & drivers HERE
Are connectors included?
NO – Connectors are not included – 24VDC Mega bright is compatible with most Inspired LED Tiger Paw solderless connectors – See HERE
Will I need cable?
Cable will depend on the connectors used – See below
3.5mm soldered on and solderless Tiger Paws use our Interconnect Cable – See HERE
All other connectors are compatible with 22-18AWG 2-conductor cable – See HERE
