Tiger Paw LED Connector®, Super-Clip (10mm PC)

$6.00

Specifications:

  • Solderless termination for 8-10mm LED flex strips
  • Terminates to a push lever wire lock for 16-22AWG bare solid or stranded wire
  • Dimensions: 1.94” x 0.63″ x 0.36″
  • U.S. Patent No. 8,714,772

Description

Instructional Videos

While the vast majority of our product line is modular for the customer’s convenience, it is sometimes desirable to cut one’s own flexible LED lights. For this purpose we offer the Tiger Paw LED Connector® line, which allows for reliable termination of flexible strips without the need for soldering.

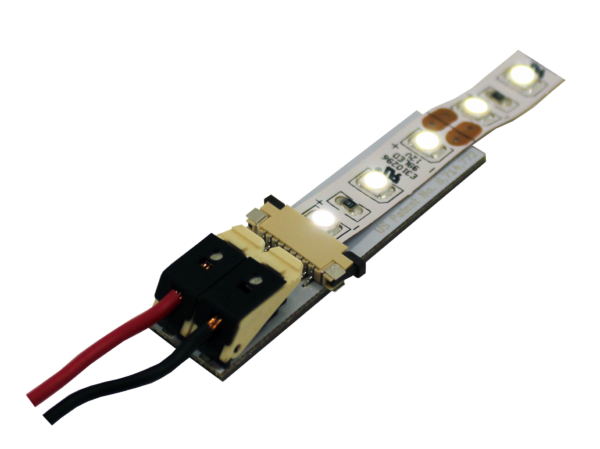

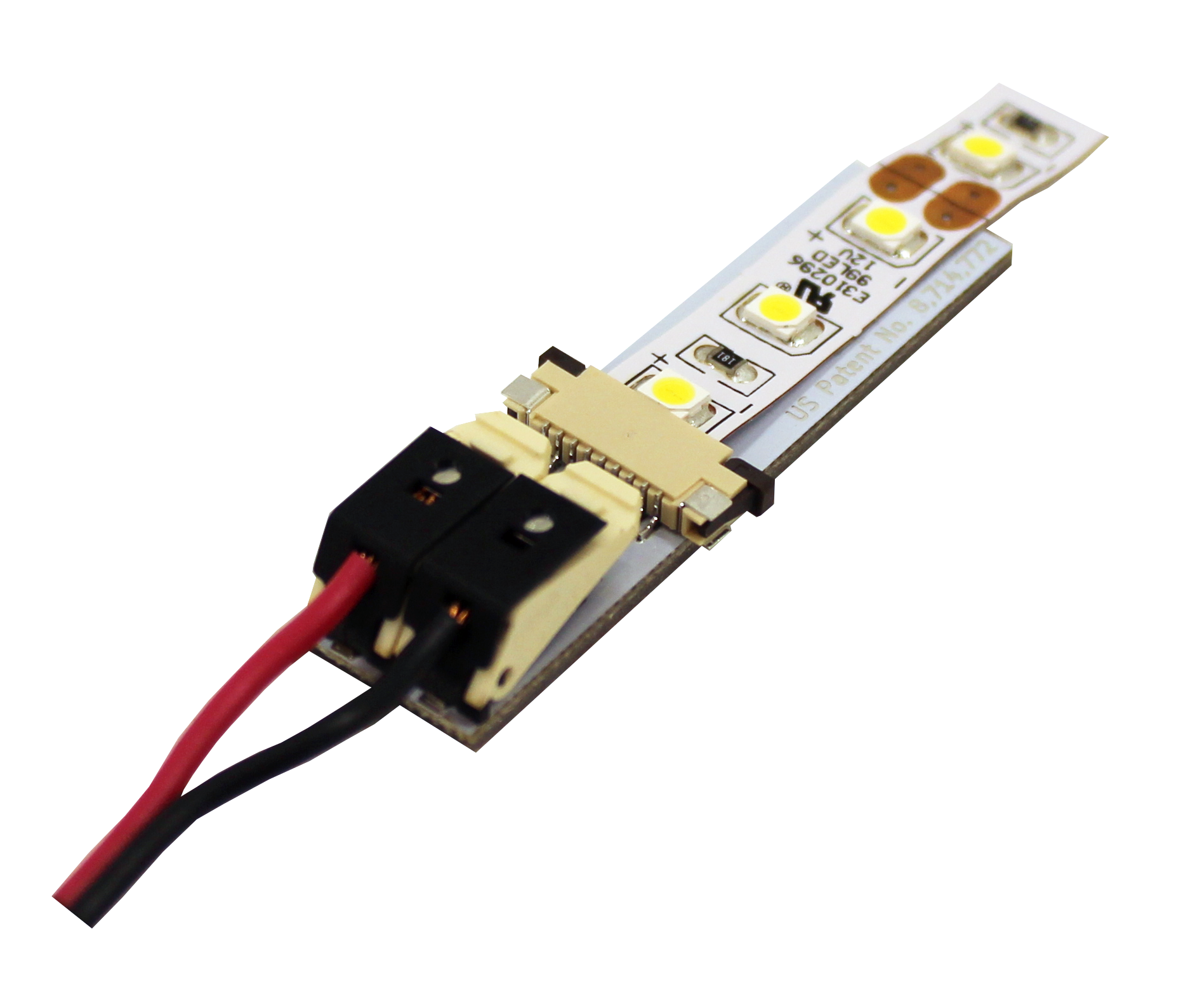

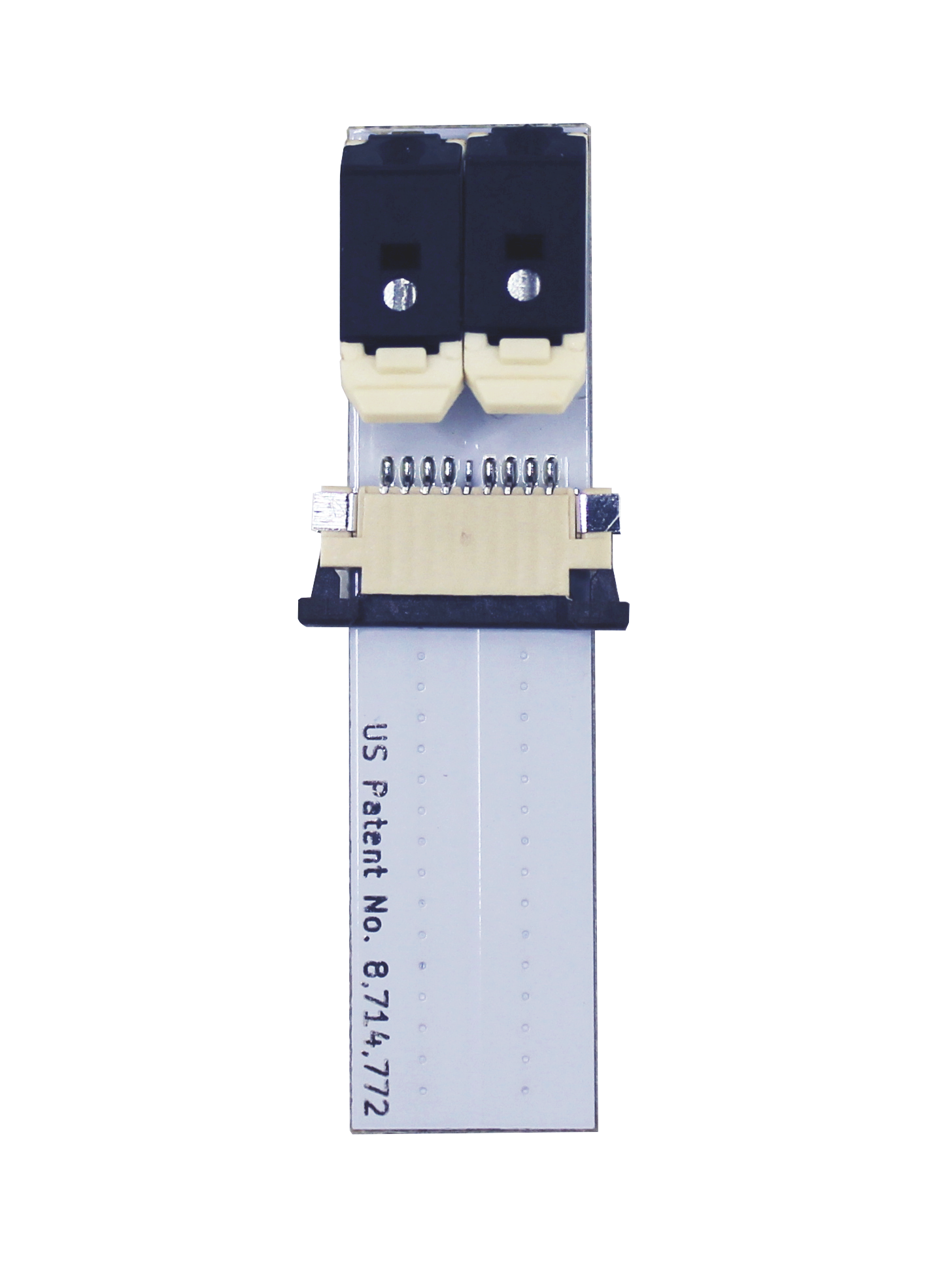

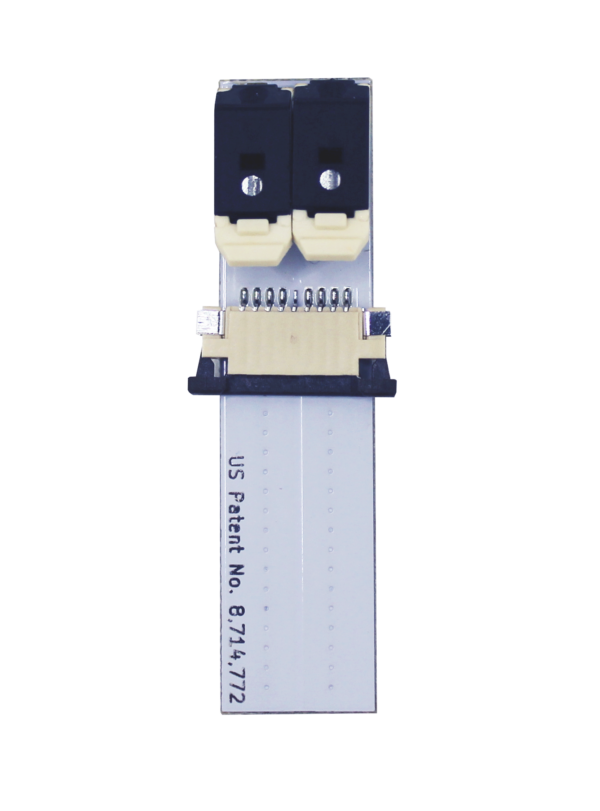

Simply cut the flexible strip, mount the Super-Clip Tiger Paw LED Connector® onto the end of the flex. Then, strip your cable, match up the positive and negative ends to the correct polarity on the flexible strip, and insert into the connector. Use a red permanent marker to aid in the installation process- mark and identify the positive polarity on the flexible strips and connectors to ensure consistency throughout your project. Then remove adhesive backing and install LED flex strip in desired location.

Please be aware: Custom-ordered flexible LED strips come pre-cut, with connectors soldered onto each end if selected.If purchasing in bulk, with no connectors they can be used with Tiger Paw LED Connectors®.

Specifications:

  • Solderless termination for 8-10mm LED flex strips
  • Terminates to a push lever wire lock for 16-22AWG bare solid or stranded wire
  • Dimensions: 1.94” x 0.63″ x 0.36″
  • U.S. Patent No. 8,714,772

Additional information

Weight 0.009375 lbs
Dimensions 1.94 × .63 × .36 in
Product Color

Black
