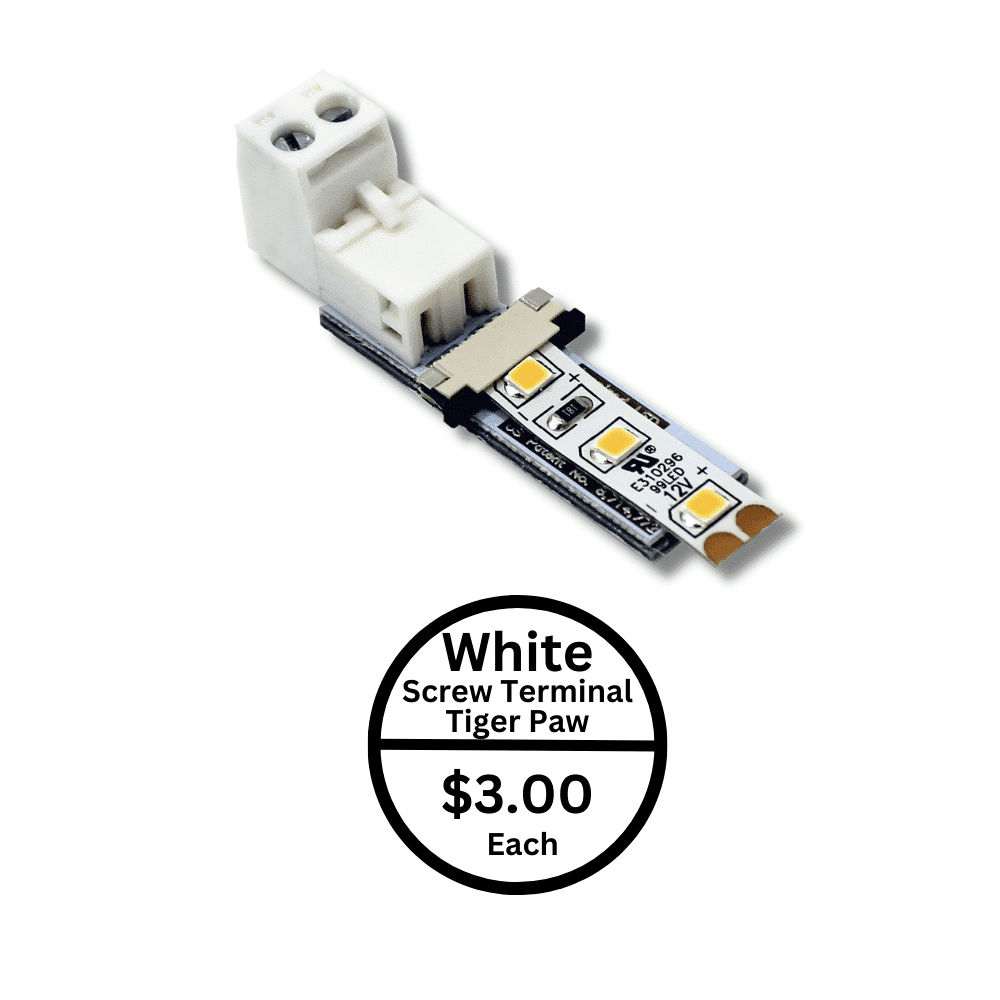

Tiger Paw LED Connector®, White Screw Terminal (10mm PC)

$3.00

While the vast majority of our product line is connectorized for the customer’s convenience, it is sometimes desirable to cut one’s own flexible LED lights. For this purpose we offer the Tiger Paw LED Connector® and the Tiger Paw LED Connector® Screw Terminal, which allows for reliable termination of flexible strips without the need for soldering. This option is especially great for expansion with our other contractor products.

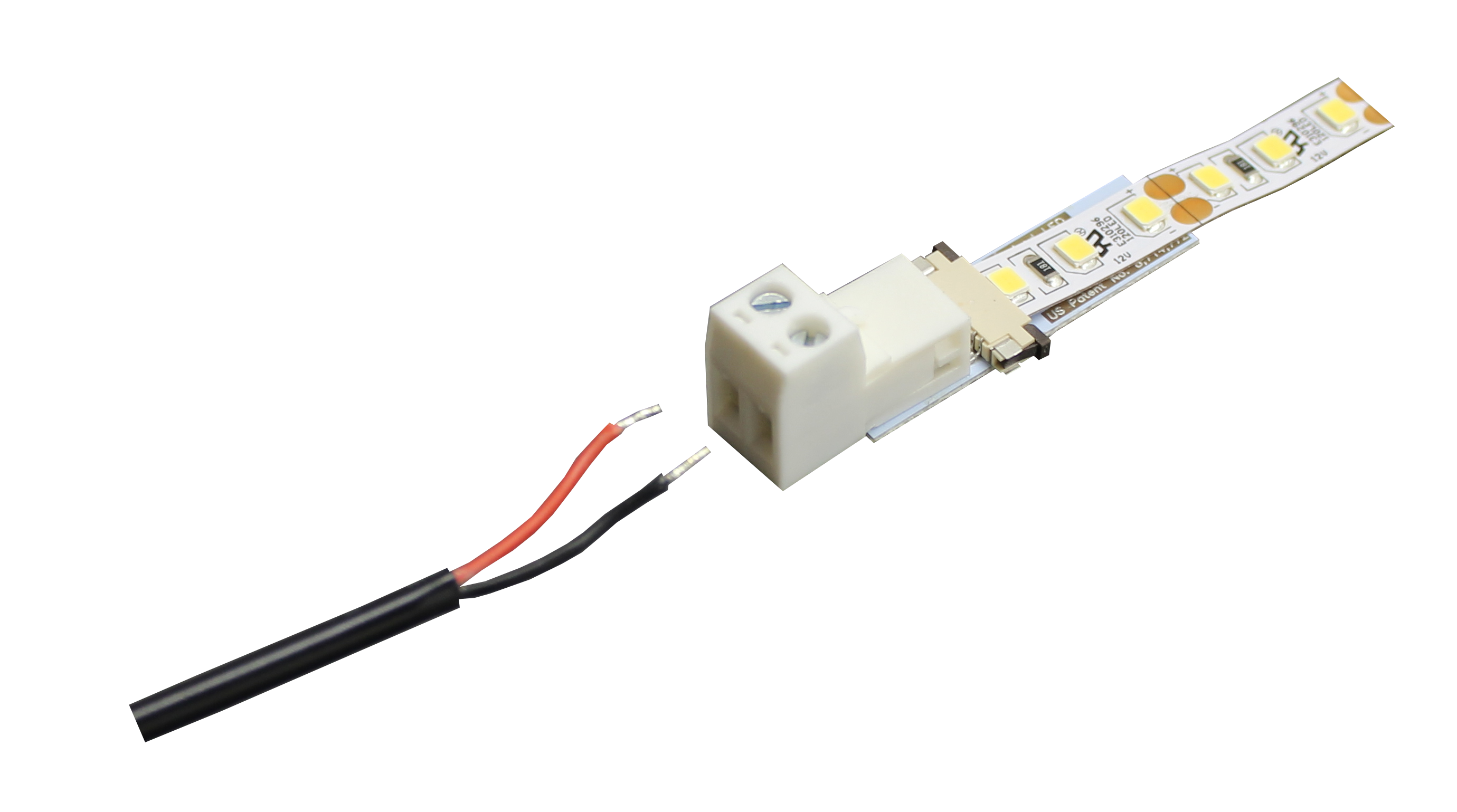

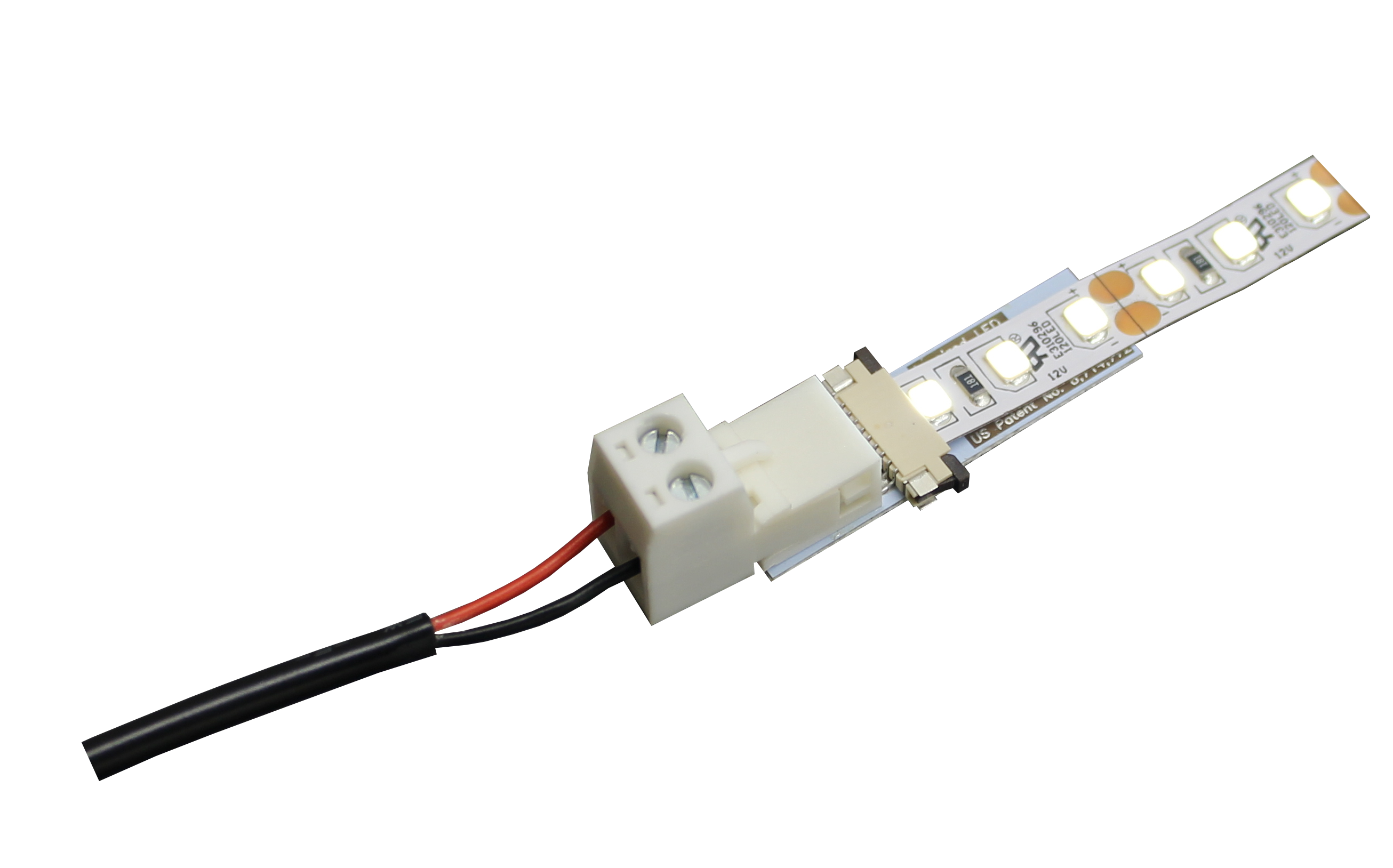

Simply cut the flexible strip along copper pads and mount the Tiger Paw LED Connector® onto the end of the flex. Then, strip your cable, match up the positive and negative ends, insert wires and tighten screws. Use a red permanent marker to aid in the installation process- mark and identify the positive polarity on the flexible strips and connectors to ensure consistency throughout your project. Then remove adhesive backing and install LED flex strip in desired location.

Please be aware: Our custom-sized Ultra Bright, Super Bright, and Normal Bright Flexible Strips come pre-cut, with connectors soldered onto each end. These do not require Tiger Paw LED Connectors®.

Includes:

  • 1- Individual Tiger Paw LED Connector® White Screw Terminal
    • Available in bundle packs
  • Adhesive backing for easy installation

Specifications:

  • Solderless termination for 8-10mm LED flex strips
  • Terminates flexible LED strips to 16-22AWG bare wire
  • Dimensions: 1.99” x 0.63″ x 0.68″
  • U.S. Patent No. 8,714,772

Description

Instructional Videos

While the vast majority of our product line is connectorized for the customer’s convenience, it is sometimes desirable to cut one’s own flexible LED lights. For this purpose we offer the Tiger Paw LED Connector® and the Tiger Paw LED Connector® Screw Terminal, which allows for reliable termination of flexible strips without the need for soldering. This option is especially great for expansion with our other contractor products.

Simply cut the flexible strip along copper pads and mount the Tiger Paw LED Connector® onto the end of the flex. Then, strip your cable, match up the positive and negative ends, insert wires and tighten screws. Use a red permanent marker to aid in the installation process- mark and identify the positive polarity on the flexible strips and connectors to ensure consistency throughout your project. Then remove adhesive backing and install LED flex strip in desired location.

Please be aware: Our custom-sized Ultra Bright, Super Bright, and Normal Bright Flexible Strips come pre-cut, with connectors soldered onto each end. These do not require Tiger Paw LED Connectors®.

Includes:

  • 1- Individual Tiger Paw LED Connector® White Screw Terminal
    • Available in bundle packs
  • Adhesive backing for easy installation

Specifications:

  • Solderless termination for 8-10mm LED flex strips
  • Terminates flexible LED strips to 16-22AWG bare wire
  • Dimensions: 1.99” x 0.63″ x 0.68″
  • U.S. Patent No. 8,714,772

Additional information

Weight 0.0125 lbs
Dimensions 1.99 × .63 × .68 in
Product Color

White
