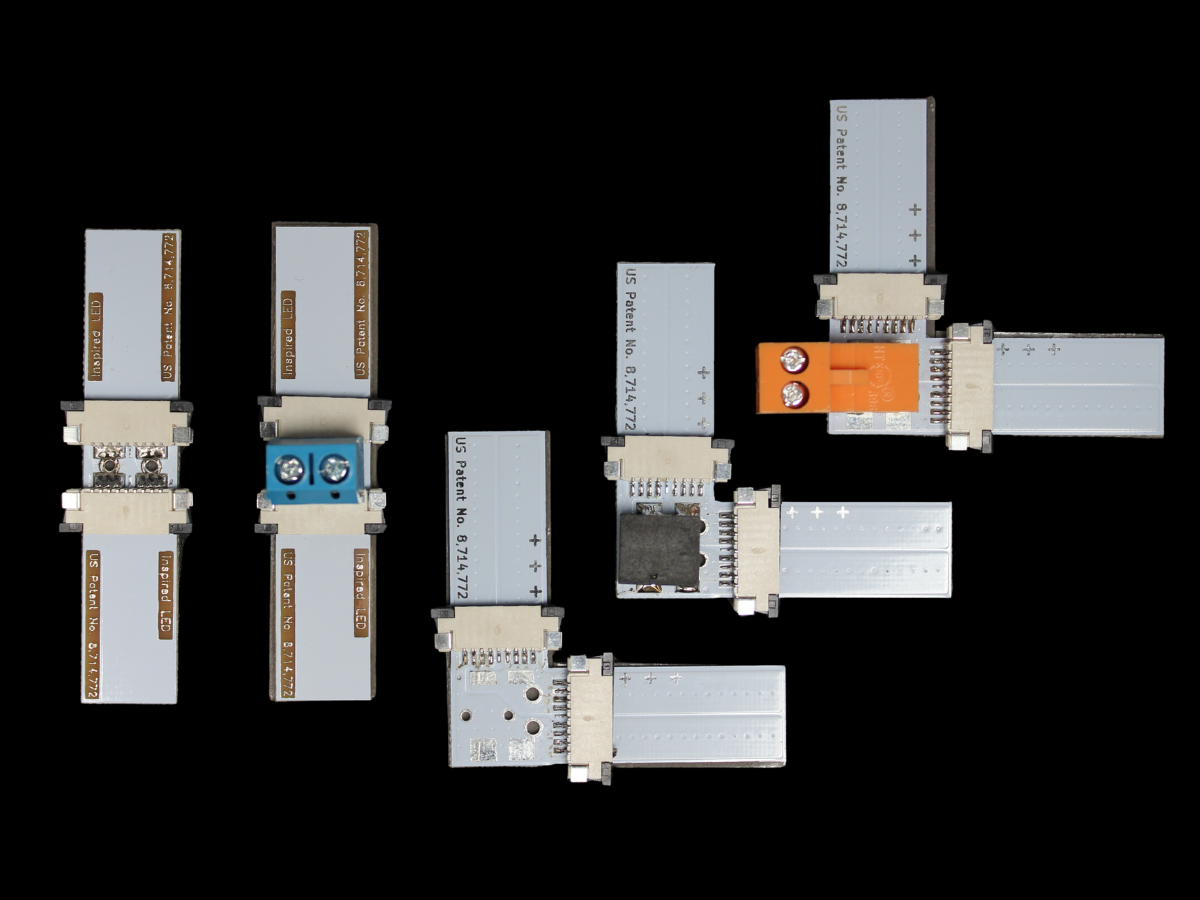

While the vast majority of our product line is modular for the customer’s convenience, it is sometimes desirable to cut one’s own flexible LED lights. For this purpose we offer the Tiger Paw LED Connector® line, which allows for reliable termination of flexible strips without the need for soldering.

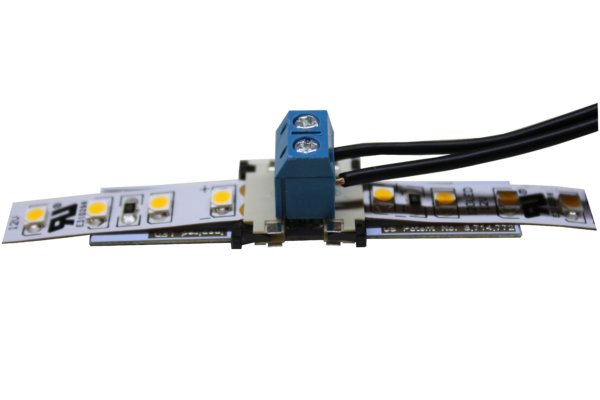

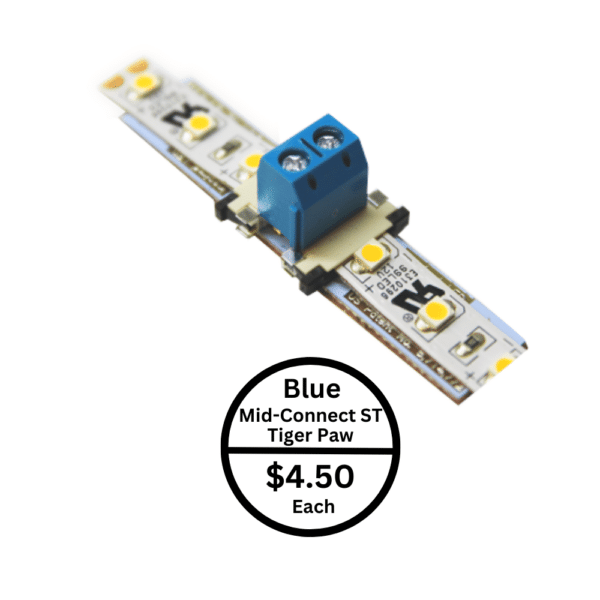

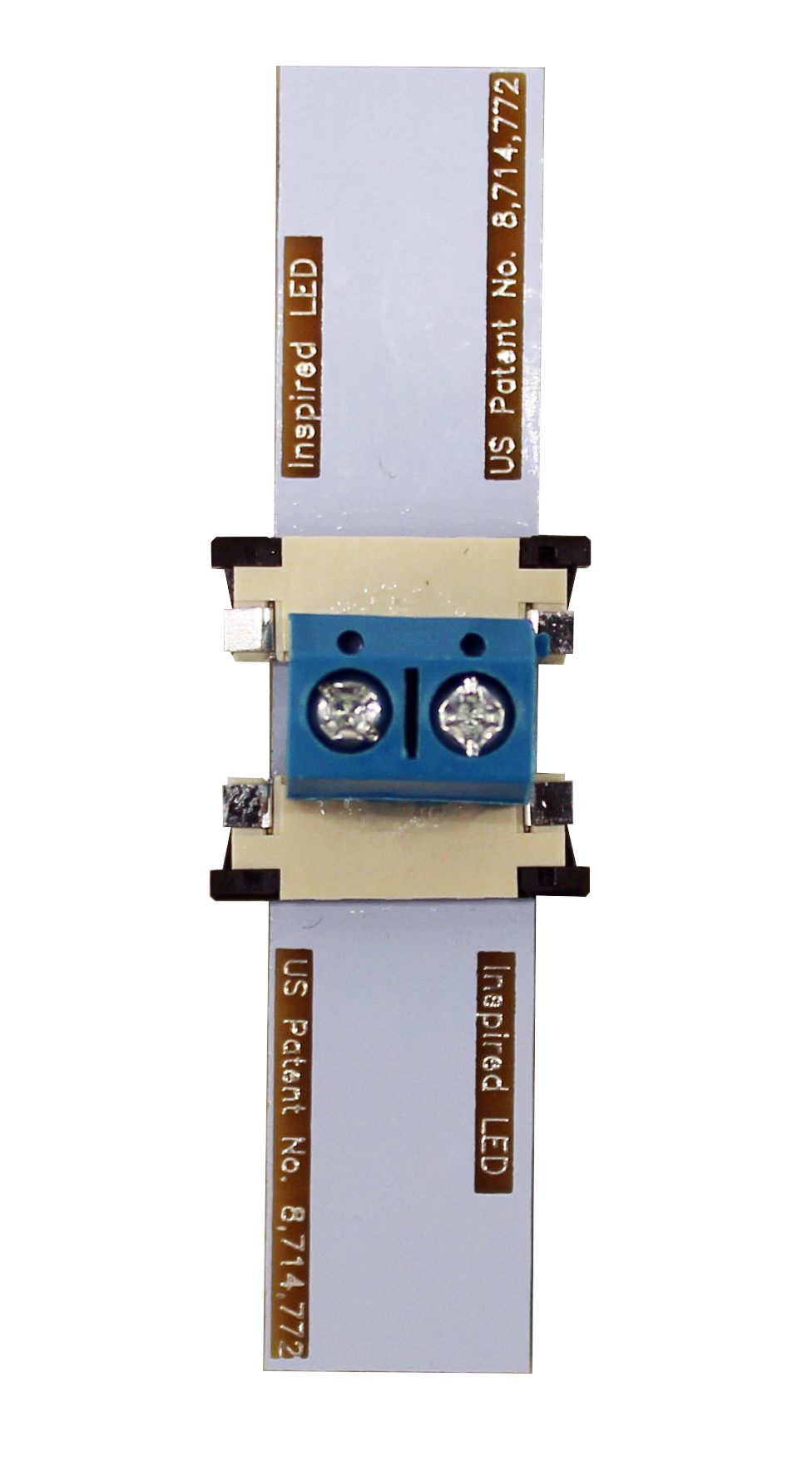

The Blue Mid-Connector Tiger Paw LED Connector® terminates two flexible LED strips back to back, allowing the strips to be powered from the middle, to be used with 16-22AWG bare solid or stranded wire.

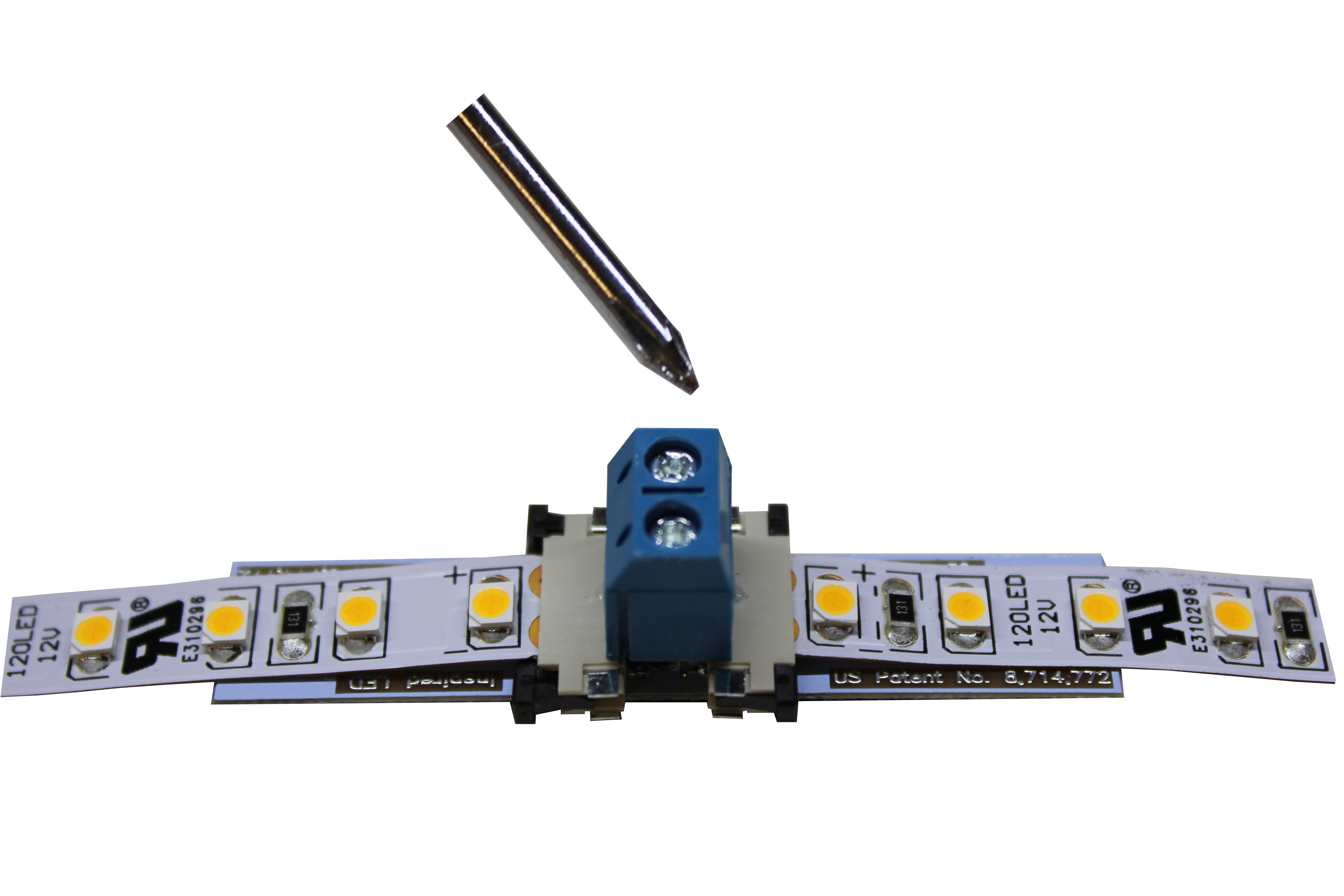

Simply cut the flexible strip, mount the Blue Mid-Connector Tiger Paw LED Connector® onto the end of the flex piece, and attach to the next strip. Then, strip your cable, match up the positive and negative ends to the correct polarity on the flexible strip, and insert into the connector. Use a red permanent marker to aid in the installation process- mark and identify the positive polarity on the flexible strips and connectors to ensure consistency throughout your project. Then remove adhesive backing and install LED flex strip in desired location.
Please be aware: Tiger Paw Connectors need to be used on bare flexible strips only.
- Solderless termination for 8-10mm LED flex strips
- Terminates to a push lock and mid-connector with screw terminal for 16-22AWG bare solid or stranded wire
- Dimensions: 2.21” x 0.63″ x 0.57″
- U.S. Patent No. 8,714,772
