Description
- LENGTH OPTIONS: 6 ft (72 in)
- HEIGHT (H):

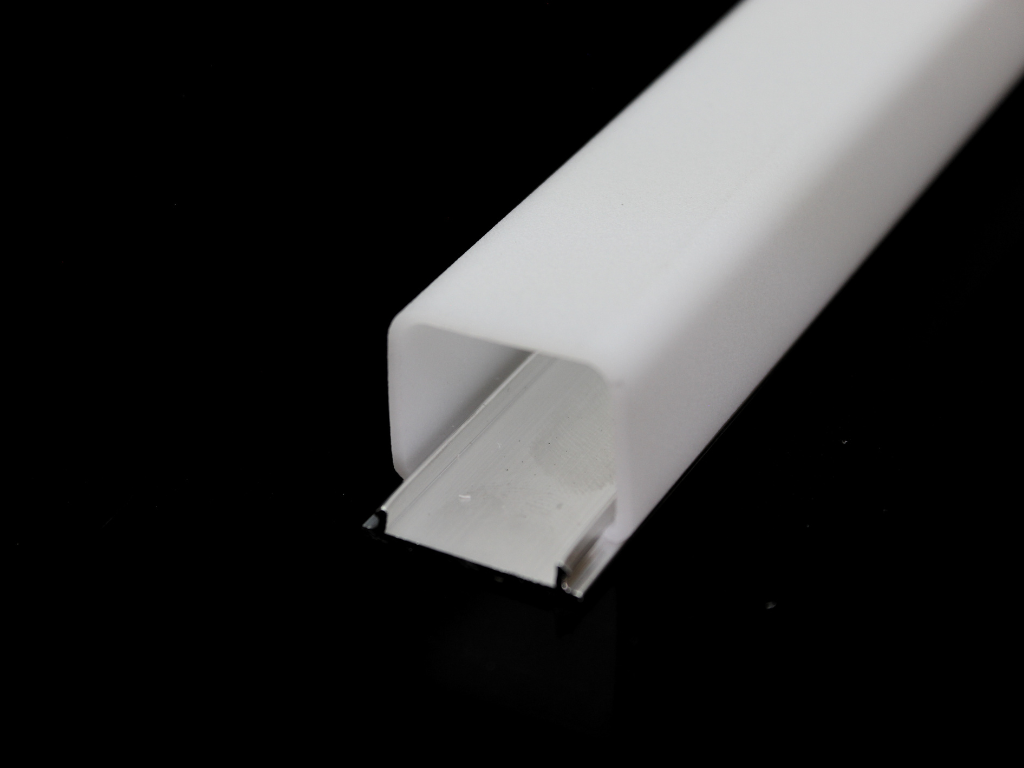

- Tall – 0.85 in | 21.6 mm

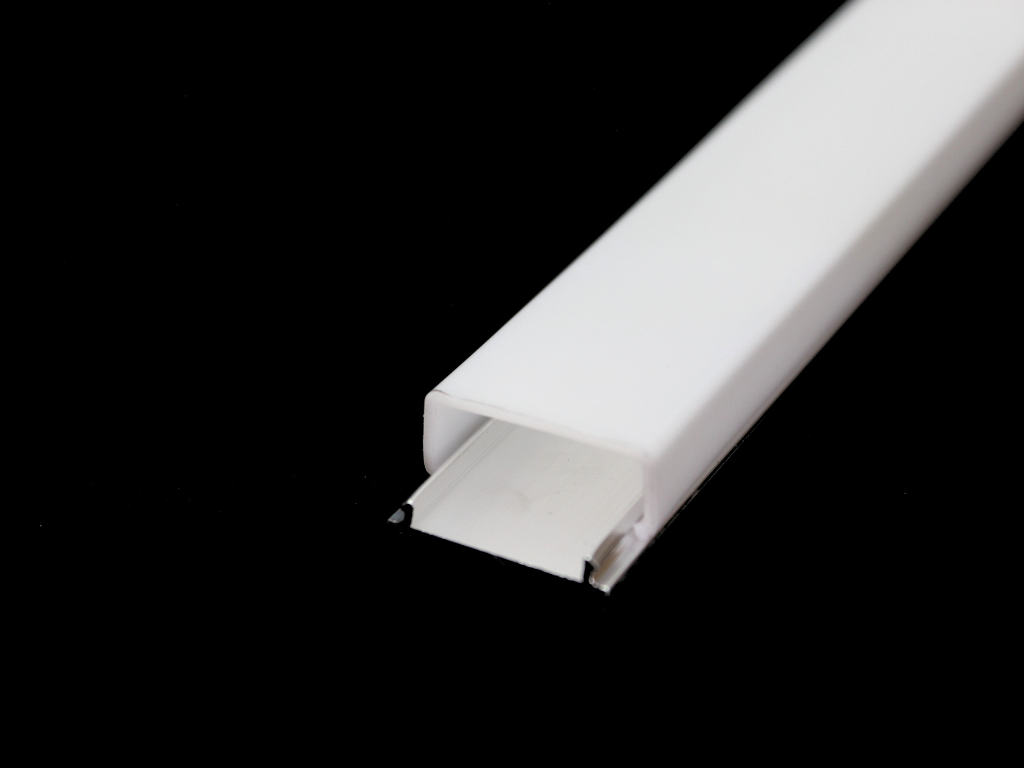

- Short – 0.375 in | 9.525 mm
- WIDTH (W): 0.96 in | 24.38 mm
- INTERIOR DEPTH:
- Tall – 0.70 in | 17.78 mm
- Short – 0.33 in | 8.382 mm
- INTERIOR WIDTH:
- Tall – 0.88 in | 22.352 mm
- Short – 0.84 in | 21.34 mm
- MOUNTING TYPE: Surface Mount
- IP RATING: IP20 | Indoor Use Only
- LUMEN LOSS: -30%
Includes:
- 1 – 6 ft aluminum channel
- 1 – 6 ft frosted Tall or Short Lens

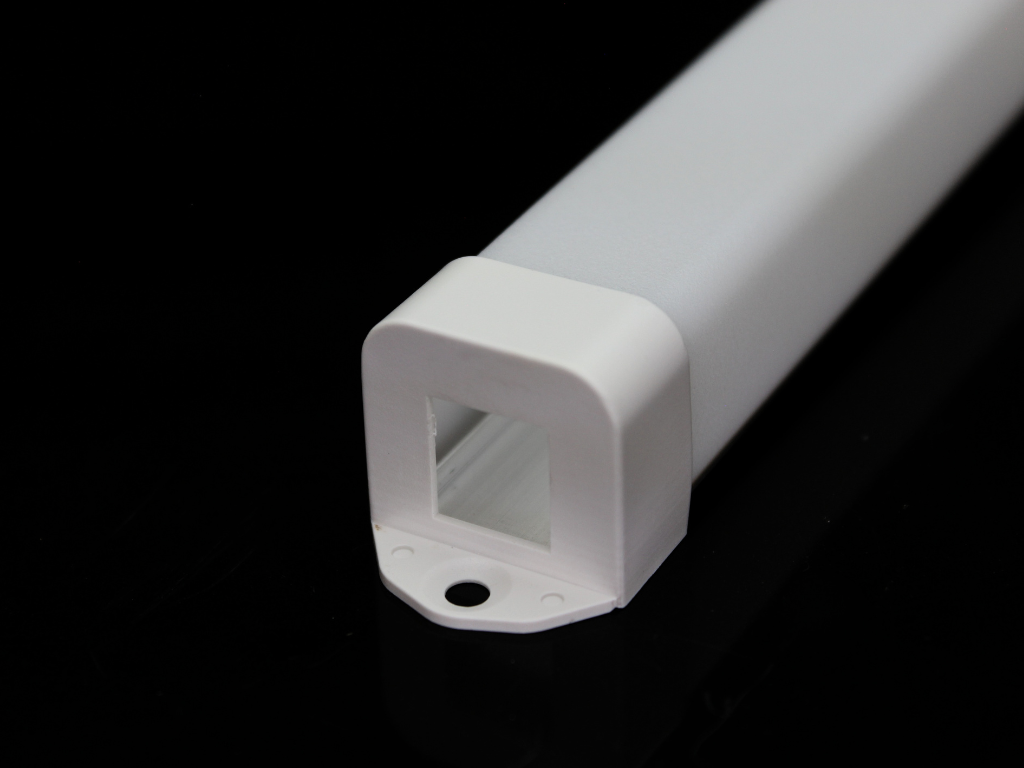

- 2 – End Caps with hole
- 2 – End Caps w/o hole
- 4 – Metal Clips w/ screws
Product Details:

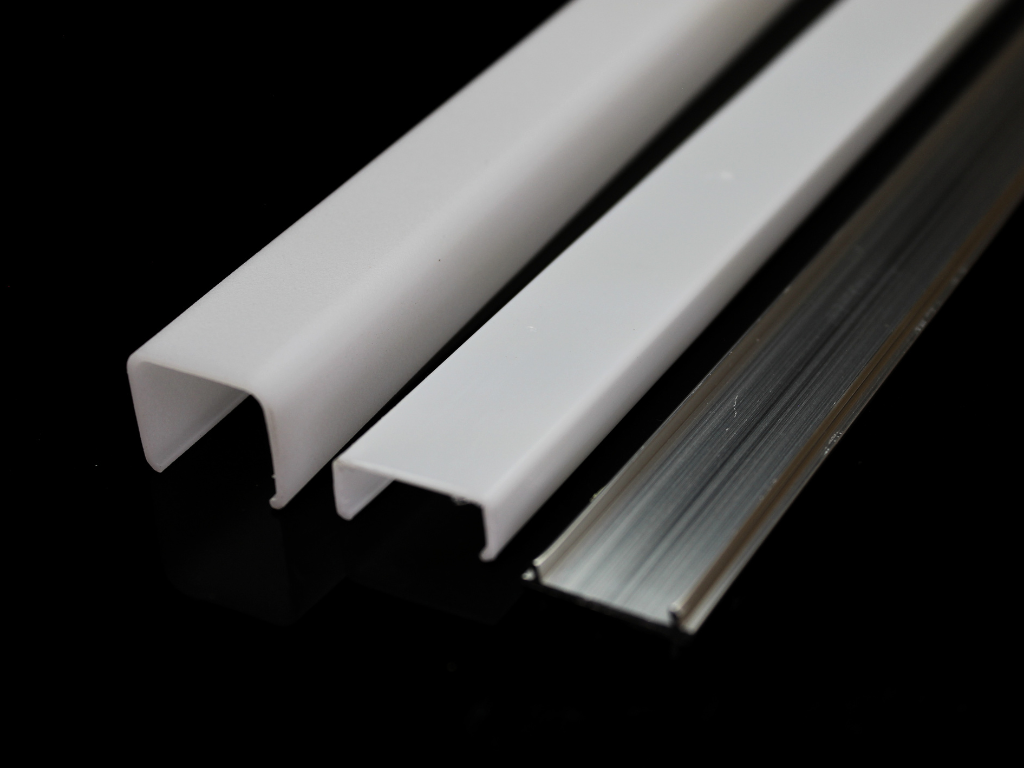

The Radiant Edge Series Channel & Lens set offer a lighting solution that combines style and efficiency into one elegant product. This innovative design utilizes a soft-white diffused lens, eliminating the dot effect caused by LED diodes. Featuring a sleek , squared profile, offered in a short or tall height. Perfect for any home, office, or retail application.
Are connectors included?
No – Compatible Connectors can be found HERE
