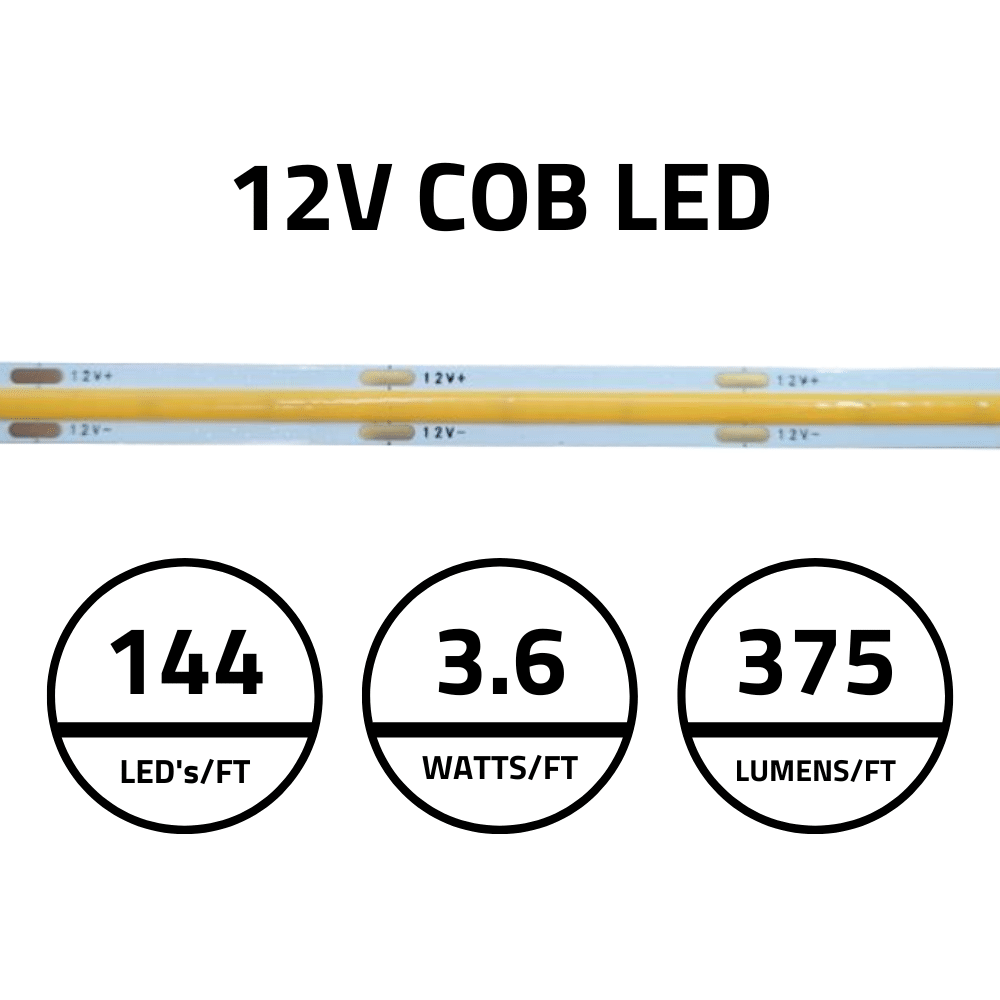

12VDC COB Custom Flexible LED Strips
12VDC COB Custom Flexible LED Strips - Image 2
12VDC COB Custom Flexible LED Strips - Image 3

12VDC COB Custom Flexible LED Strips

Price range: $11.08 through $219.19

SKU: C-12V-COB Categories: , ,

Description

Specifications
Description
FAQs
Data Sheets
Compatible Products


  • LED TYPE: Chip-on-Board LEDs
  • BEAM ANGLE: 120°
  • PBC COLOR: White
  • LIGHT EFFICIENCY: 101.1 lm/W
  • WATERPROOF RATING: IP20 Indoor Use Only
  • LENGTH: Custom lengths available in 1 ft increments up to 39.4 ft
  • WIDTH: 0.31″ | 8mm
  • COLOR TEMP: 2700K | 3000K | 3500K | 4000K | 6000K
  • CERTIFICATIONS: UL Listed E500305

  • WARRANTY: 5 Years
  • INPUT VOLTAGE: 12VDC
  • POWER/Ft: 3.6 W/ft
  • CUT INCREMENTS: Every 0.98″
  • LEDs PER SECTION: 12 LEDs
  • LEDs PER FT: 144 LEDs
  • LED CHIPS: 5760 LEDs per 39.4ft Reel
  • LIFETIME: 50,000+ hours



Features:

  • Provides seamless linear illumination
  • Dot Free Light Output
  • Flexible and Field Cuttable

Product Details:

The 12V COB Flexible Strip Lights provide a straightforward and budget-friendly solution for a variety of task lighting needs. The high-density LEDs are encased in epoxy, ensuring seamless light uniformity. With a greater number of LED diodes, these strips deliver strong light intensity while remaining efficient. Offered in 12M reels or in bulk strips, these versatile lights can be easily cut and connected using the iDea Series Screw Terminal Solderless Connector, making DIY installation a breeze. Energy-efficient, long-lasting, and dimmable with compatible systems.



Can I use a magnetic driver/transformer to power these lights?

High-density COB lighting is not compatible with dimmable magnetic drivers/transformers. You must use a constant voltage driver like the EMCOD 5-in-1 Universal driver or the Magnitude LinDrive.

Using with an incompatible driver can lead to overheating issues! If unsure please email us at orders@inspiredled.com or call us at 480-941-4286.

My COB LED lighting is very hot, is this normal?

COB LED lighting is a high-density LED strip with an epoxy coating, higher temps are expected.

If temps are exceeding 130°F you need to check the power supply/ driver/ transformer powering the COB LED strips. COB strips are NOT compatible with magnetic drivers/transformers. Using them will cause extreme heat from the COB strips.

Which solderless connectors can I use with COB?

COB lighting in 12V or 24V are compatible with connectors – SKU 8464 iDea Series Screw Terminal Connector | SKU 8759-END 4-Screw End, Wire to Flex Strip

Additional information

Length (inches)

11.28 inches – $11.08, 22.56 inches – $16.15, 33.84 inches – $21.23, 45.12 inches – $26.30, 56.40 inches – $31.38, 67.68 inches – $36.46, 78.96 inches – $41.53, 90.24 inches – $46.61, 101.52 inches – $51.68, 112.80 inches – $56.76, 124.08 inches – $61.84, 135.36 inches – $66.91, 146.64 inches – $71.99, 157.92 inches – $77.06, 169.20 inches – $82.14, 180.48 inches – $87.22, 191.76 inches – $92.29, 203.04 inches – $97.37, 214.32 inches – $102.44, 225.60 inches – $107.52, 236.88 inches – $112.60, 248.16 inches – $117.67, 259.44 inches – $122.75, 270.72 inches – $127.82, 282.00 inches – $132.90, 293.28 inches – $137.98, 304.56 inches – $143.05, 315.84 inches – $148.13, 327.12 inches – $153.20, 338.40 inches – $158.28, 349.68 inches – $163.36, 360.96 inches – $168.43, 372.24 inches – $173.51, 383.52 inches – $178.58, 394.80 inches – $183.66, 406.08 inches – $188.74, 417.36 inches – $193.81, 428.64 inches – $198.89, 439.92 inches – $203.96, 451.20 inches – $209.04, 462.48 inches – $214.12, 473.76 inches – $219.19
