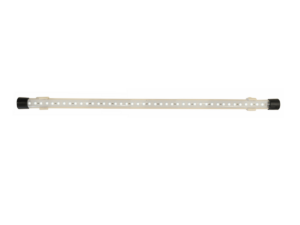

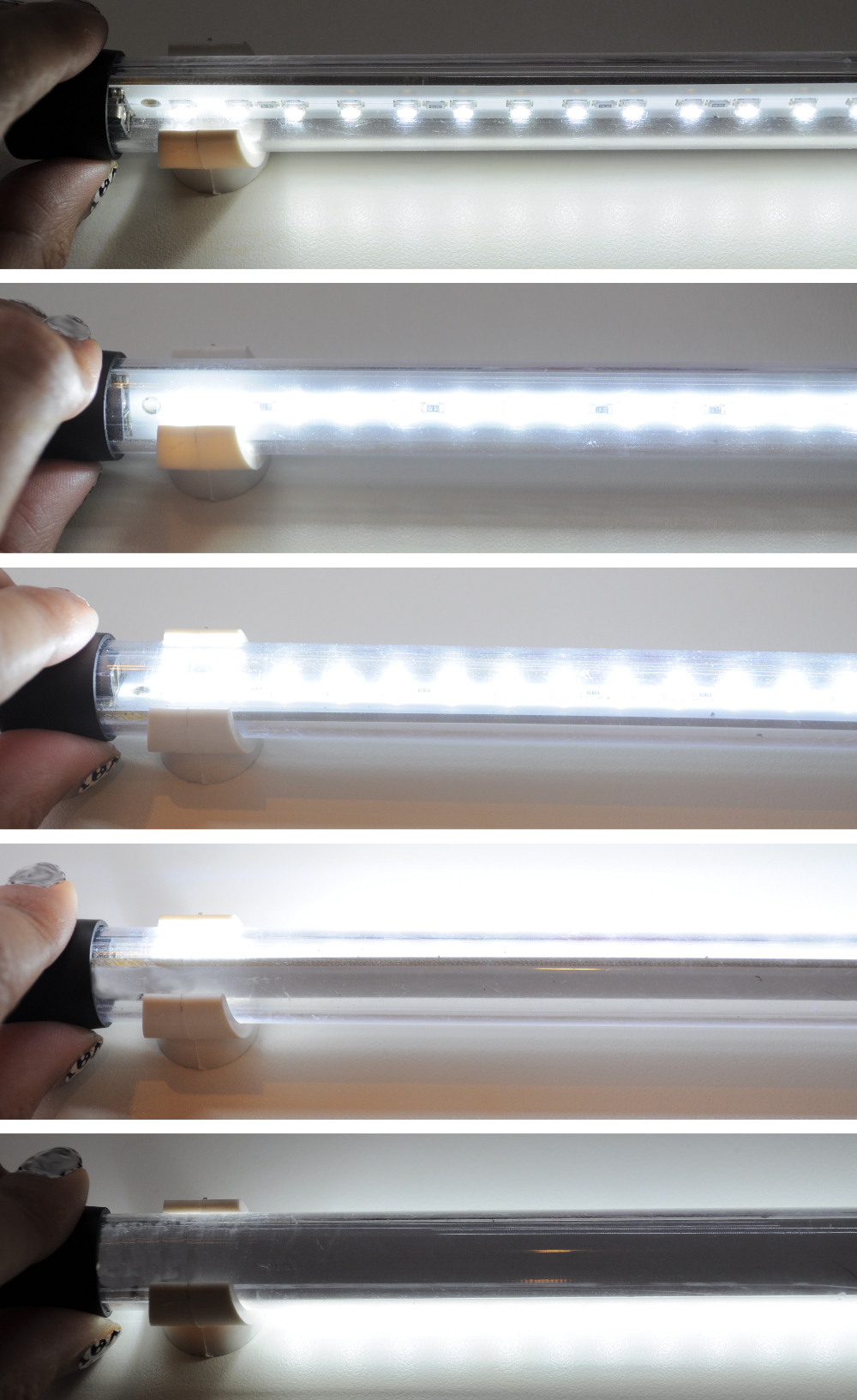

Inspired LED’s Angle Adjust Tubes are the perfect low-voltage lighting solution for highlighting features such as tool boxes, shelving units, bike racks, and more. Mount almost anywhere using magnetic clips or standard screw mount clips, and easily direct light in your garage or on your work bench! Need help determining the best lighting solution for you? Get in contact with our design team or call us at 480-941-4286!
- CSA Listed (C22.2 No. 250.0-08)
- Input: 12V DC Class 2 Power (3.5 x 1.3mm jacks)
- Lumen/ft: Warm (3000k) ~ 130 lm, Pure (4200k) ~ 135 lm, Cool (6000k) ~ 145 lm
- Wattage: 1.5 watts per 21 LED panel
- LED’s spaced every 0.39″
- Dimensions: 9″ x .63″Ø
- i Subtract 1.5″ from your dimensions on each side of the Angle Adjust Tube to allow room for interconnect cable installation.
- 3 – 9″ Angle Adjust Tube 21LED Panels
- 1 – 1 Amp (12 watt) Plug-In Power Supply
- 1 – In-Line On/Off Toggle switch
- 3 – 3 Ft Interconnect Cables
- 3 – Angle Adjust Mangetic Clips or Screw Mount Clips
- 3 – Cable Clips w/ Screws (for cable management)
- If you need different cable sizes, you may choose any two of the following cables: 4″, 1′, 2′, 3′, 4′, 6′, and 12′ cable lengths. Please add a note in the customer notes section at checkout with your cable length changes.
