Independence Dimmer Receiver 2.0 (12VDC or 24VDC Flex)

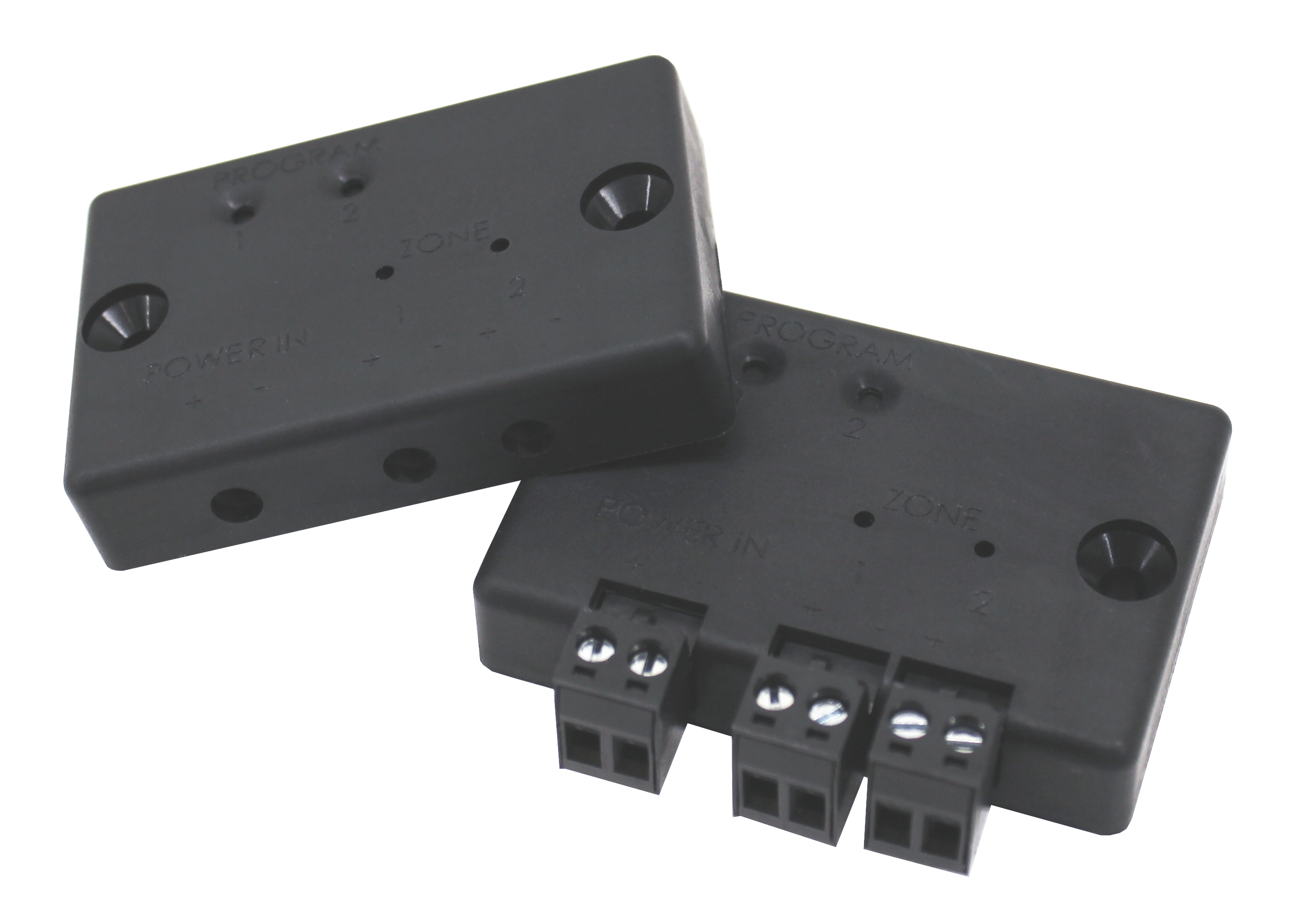

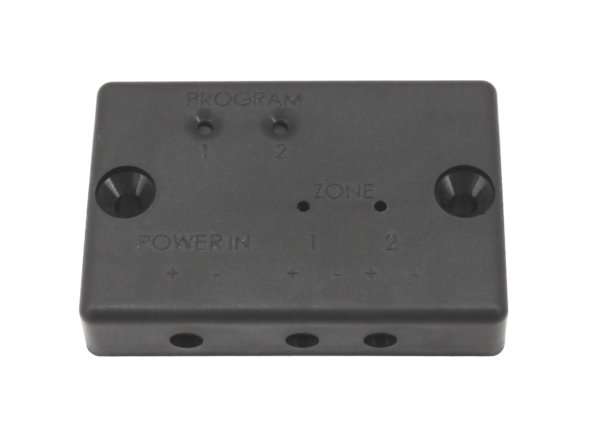

The new 2-Zone Independence Receiver is now available in a plug-in version or screw terminal version for your specific install. The low profile and small size of the receiver unit allows it to be mounted almost anywhere. This receiver unit also boasts two output lines, perfect for running lighting in multiple directions and locations. Since the two outputs can now be programmed for two designated separate zones, with a higher load (5amp max load per output), installations are now easier than ever!

Receivers function only with 2-Zone Independence Dimmer Switches. 2-Zone Independence Receiver units cannot be integrated into older Independence Dimmer 1.0 systems.

Specifications:

• Dimensions:
  • Plug-In: 3″ x 2″ x .55″

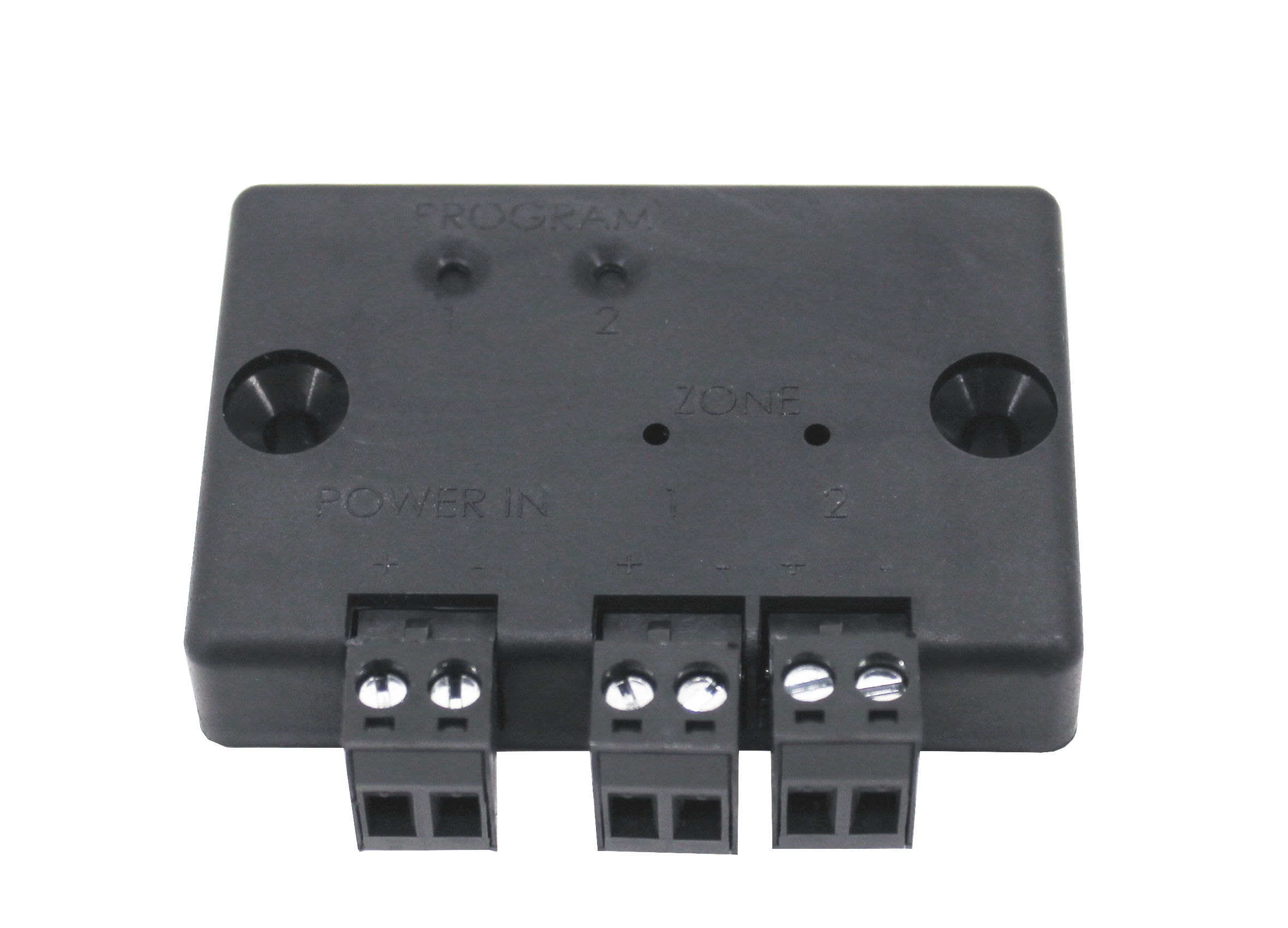

  • Screw Terminal : 2.6″ x 2.1″ x 0.53″
• Max Load: 5 Amp per output
• Receiver unit can only be used with a plug in power supply – it cannot be hardwired or used with a dimmable transformer.
• To sync multiple receivers to switches, or to program zones, please view the information document above or give us a call.
