Inspired LED Free Design Services

Stuck? Use the toggles on the left to get answers. Want to meet with a Designer? Call 480-941-4286 to schedule an appointment!

Speed up your design and quote process.

Determining the lighting needed for a project can sometimes be tricky. With a bit of key information, we can design and quote your lighting project for you! Follow the simple steps below to ensure you project gets the products it requires. Please read through the tabs below to determine which products, color temperature, and system type are right for you! Lastly, you can submit your free design request to our talented designers using the form to the left. If your're having trouble with the form you can email the design team directly at design@inspiredled.com

  1. Determine where you would like LED lighting

    new cabinets

    Sketch a quick drawing (lines and numbers), take a photo, or send us schematics/building plans of the area(s) you would like LEDs.

  2. Measure

    measuring cabinets

    Measure the lengths of the available LED space in the areas you would like LED lighting. Make sure to measure the underside of the cabinet between bridges for an accurate length!

  3. Determine Lighting Solutions and Details

    What types of lighting solutions are you looking for? Tell us what your ideal lighting situation would be:

    • Controlled Independently
    • Controlled Together
    • Accent / Task Lighting
    • Plug-and-Play
    • Hardwired
    • Dimmable
    • Wall Switch Control
    • In Line Switch Control
    • Warm White / Pure White/ Cool White

Make sure the information you include is detailed! This will speed up the process for the designer so they can get back to you quickly!

Your Completed Design should look similar to the design below!

completed design

Check out the next tab for more information!

Warm White, Pure White, or Cool White?

A general question that we often hear is, ‘Which color temperature is best for my lighting project?’ There is no right answer to the correct color, but more often than not, there are color temperatures that better suit specific applications. See the chart below to determine which color will work for your application. If you still need help, ask a Customer Service Representative or a Lighting Designer!

color temperature Warm Pure and Cool White Lighting

Hardwired or Plug-and-Play

Speed up your design and quote process

People often get confused when determining which type of controlling device will best suit their expectations and needs. When thinking about how you would like to control your LED system, there are 2 schools of thought that need to be understood and considered: Would I like to hardwire my system, or have a simple system that can be plugged into any standard electrical outlet? What is the difference?

Hardwired System: Low Voltage Dimmable Transformer and Cpmpatible Wall Switch Dimmer

  • Hardwiring a lighting system requires the installer to directly terminate a high voltage power source to our Dimmable Transformer, not plugging it into an electrical outlet
  • The Dimmable Transformer allows the user to dim the LEDs from a wall switch. Hardwiring to a dimmable transformer is the only way the user will have dimmable control from a wall switch.

Products Needed:

Compatible LED Dimmer, correct voltage transformer, and 12v or 24V LED Flex Strips or Panels

hardwire led system

Plug-and-Play System: Power Supply Controlling Device

  • Plug and Play systems are easy to install , no electrician needed.
  • Power Supplies plug into any standard electrical outlet.
  • Controlling devices range depending on preference.
  • Plug and Play systems are by far the most user friendly approach to lighting. This approach does not allow for dimmable control from a wall switch (on the high votage side).
  • Inspired LED offers a variet of in-line dimming options, which can allow the lights to dim on the low voltage side.
plug in led system

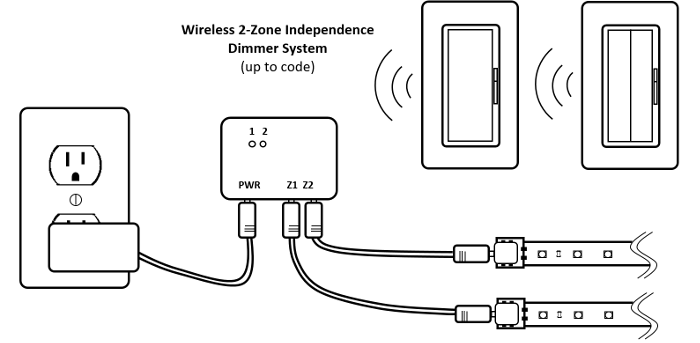

Independence Dimming System: Plug In RF Dimmer System

  • Brand new system that combines the ease of a plug and play system with the look and feel of a hardwired system.
  • It can be mounted anywhere. The switch design allows for installation after the walls of your home are up. The switch does not require being recessed in the wall unlike standard switches.
  • The switch does not require any power. The switch uses innovative energy harvesting technology, which allows the energy created from pushing on the switch to communicate with the RF receiver. No batteries or wires needed.
  • Multiple outputs. This dimmer, unlike our 4- push button dimmer, features two output lines that will allow you to run your lights in multiple directions, or control different zones with the same receiver.
independence dimmer  Self Powered Dimmer Switch
