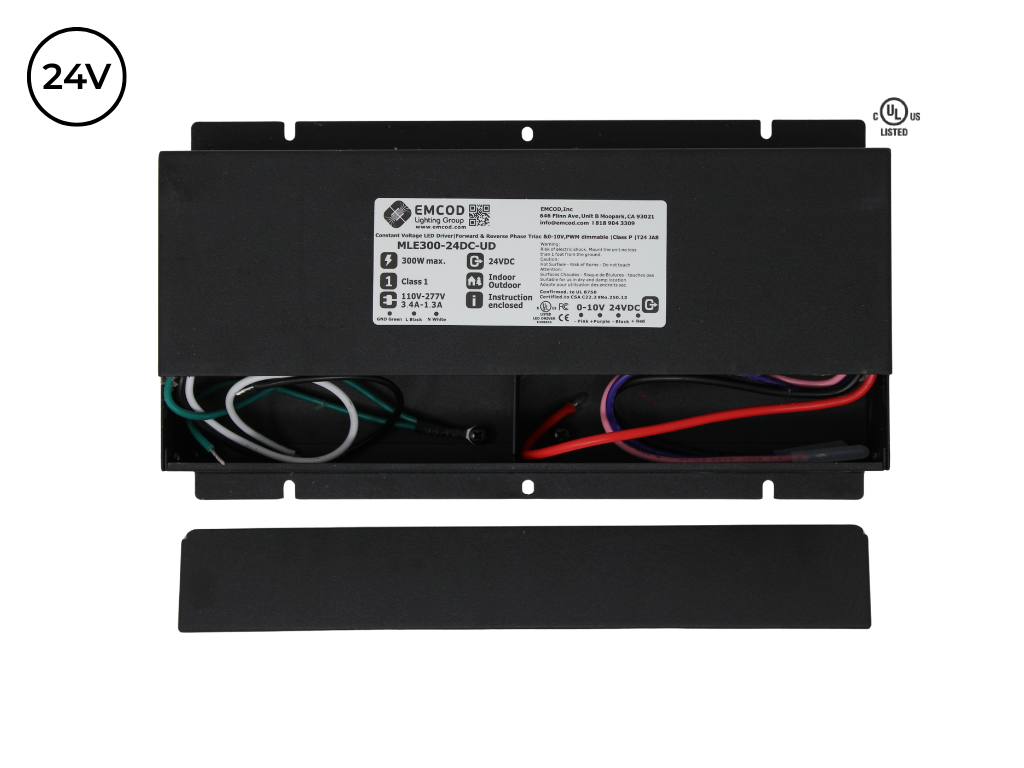

24VDC EMCOD Universal Driver

The EMCOD 24V Universal 5-in-1 dimmable drivers are designed to accept all different types of dimming. They can be used with Forward Phase, MLV, and Reverse Phase, ELV, TRIAC. They are also compatible with 0-10V dimming (0-10V, 1-10V, Potentiometer) and PWM in-line dimming and work great with Inspired LED’s standard 24V LED tape and 24V high density LED and COB tapes.

Product Features:

• Universal 5-in-1 Dimming: Forward Phase, MLV and Reverse Phase, ELV, TRIAC, 0-10V dimming: 0-10V/1-10V/Potentiometer/10V & PWM in-line
• Smooth flicker-free dimming to 1%
• Compatible with high density LED and COB tape lights
• Universal Input Voltage 120-277VAC
• Outdoor-rated NEMA 3R enclosure with built-in junction box, for dry, damp and wet locations.
• 5 year warranty

Specifications:

• Output options:
  • 24VDC 96W (4A) SKU:8624
  • 24VDC 200W (8.3A) SKU:8625
  • 24VDC 300W (12.5A) SKU: 8626
• Input: 120VAC – 277VAC
• Working TEMP. not to exceed 158F
• Ambient TEMP 113F
• Flicker Free dimming to 1%
• 5% minimum load
• Safety Standards: UL8750 CAN/CSA C22.2 No.250.13 (US)
